What horsepower is the FS-Curtis FCA15E15H1U-D9L1XX air compressor?

The FS-Curtis FCA15E15H1U-D9L1XX is rated at 15 HP.

How much air does the FS-Curtis FCA15E15H1U-D9L1XX produce?

The FS-Curtis FCA15E15H1U-D9L1XX delivers 42.6 SCFM at 175 PSI.

What size tank does the FS-Curtis FCA15E15H1U-D9L1XX have?

The FS-Curtis FCA15E15H1U-D9L1XX has a 120-gallon horizontal tank.

Is the FS-Curtis FCA15E15H1U-D9L1XX single-stage or two-stage?

The FS-Curtis FCA15E15H1U-D9L1XX is a two-stage compressor.

What voltage does the FS-Curtis FCA15E15H1U-D9L1XX require?

The FS-Curtis FCA15E15H1U-D9L1XX runs on 230/1.

What is the duty cycle of the FS-Curtis FCA15E15H1U-D9L1XX?

The FS-Curtis FCA15E15H1U-D9L1XX has a 100% duty cycle.

What is the FS-Curtis FCA15E15H1U-D9L1XX best for?

The FS-Curtis FCA15E15H1U-D9L1XX is best suited for Heavy shop / industrial single-pump 15 HP two-stage air supply.

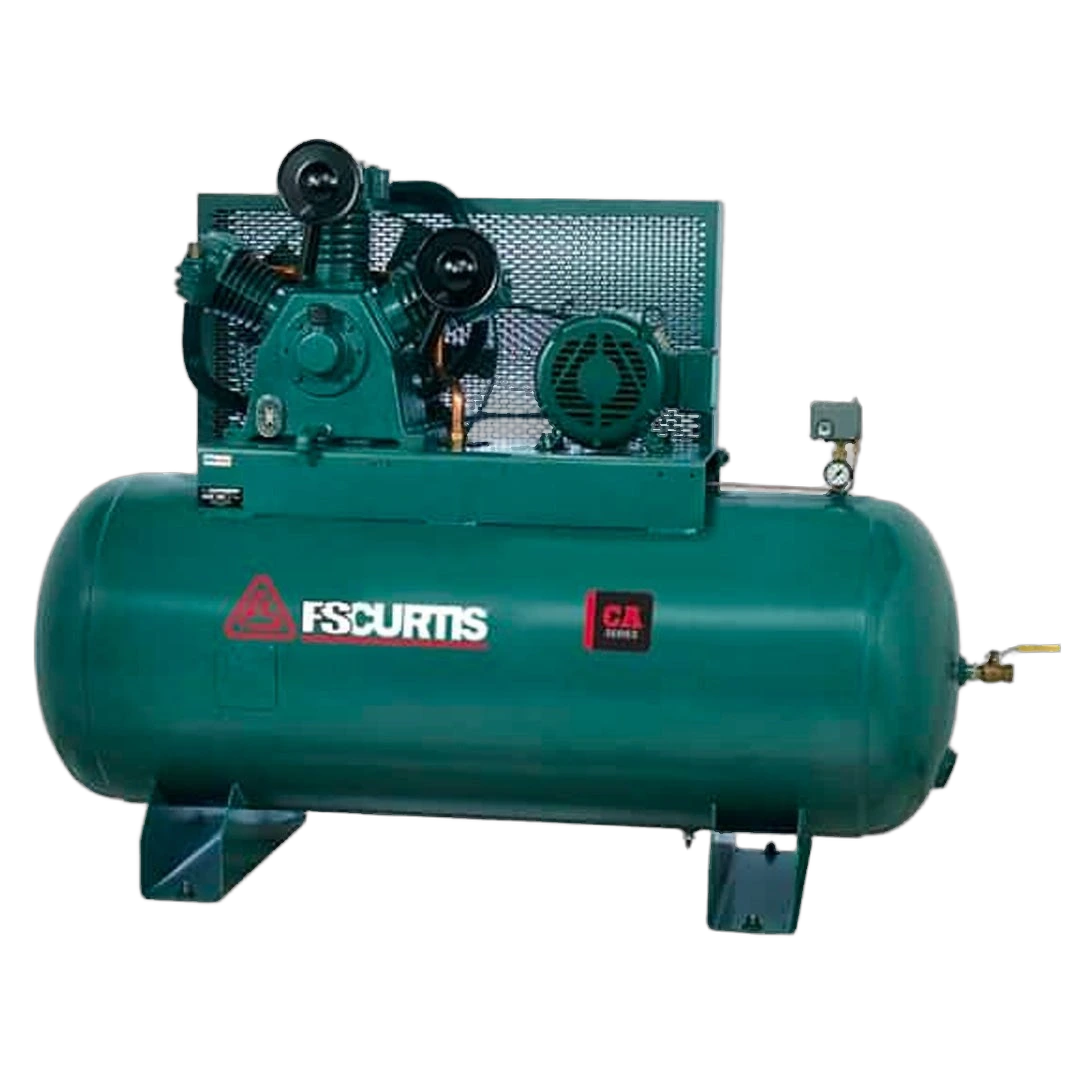

FS-Curtis FCA15E15H1U-D9L1XX – 15 HP 120-Gal Air Compressor

The FS-Curtis FCA15E15H1U-D9L1XX is a 15.00 HP 2-stage reciprocating piston air compressor delivering 42.60 SCFM @ 175 PSI on a 120.0-gallon tank, wired for 230/1. The unit is splash-lubricated, in a simplex configuration. Suited to heavy production cells, industrial fabrication, and high-demand shop air environments. Listed at approximately $8,305. OEM datasheet needed for shipping weight and duty cycle rating.

CFM

42.6 @ 175 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

2.84CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$247$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinderthree-cylinder two-stage cast iron

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM42.6 @ 175 PSI

CFM / HP2.84

Cut-in / out—

Tank fill—

Est. draw13.2 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $4,727

Maintenance · yearlyEst. $375

Savings with Compressor Controller · yearlyEst. $1,087–$1,985

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1250 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 83 · 15 HP

Sizing & pricevs. 83 in class

SCFM @ 15 HP42.6cfm
17median 51111
-16.5% vs. median
Average price$10,507
$4,621median $9,591$25k
+9.6% vs. median

Efficiency vs. peersvs. 83 in class

CFM per HP2.84cfm/hp
1.15median 3.47.44
-16.5% vs. median
Price per CFM$247$/scfm
$96median $188$443
+31.2% vs. median

Where this is sold

Retailer
Verified 4 weeks ago
$10,507
