What horsepower is the FS-Curtis FCA10E71H1U-D9L1XX air compressor?

The FS-Curtis FCA10E71H1U-D9L1XX is rated at 10 HP.

How much air does the FS-Curtis FCA10E71H1U-D9L1XX produce?

The FS-Curtis FCA10E71H1U-D9L1XX delivers 34.2 SCFM at 175 PSI.

What size tank does the FS-Curtis FCA10E71H1U-D9L1XX have?

The FS-Curtis FCA10E71H1U-D9L1XX has a 120-gallon horizontal tank.

Is the FS-Curtis FCA10E71H1U-D9L1XX single-stage or two-stage?

The FS-Curtis FCA10E71H1U-D9L1XX is a two-stage compressor.

What voltage does the FS-Curtis FCA10E71H1U-D9L1XX require?

The FS-Curtis FCA10E71H1U-D9L1XX runs on 230/3.

What is the duty cycle of the FS-Curtis FCA10E71H1U-D9L1XX?

The FS-Curtis FCA10E71H1U-D9L1XX has a 100% duty cycle.

What is the FS-Curtis FCA10E71H1U-D9L1XX best for?

The FS-Curtis FCA10E71H1U-D9L1XX is best suited for Horizontal shop / industrial 10 HP two-stage air supply.

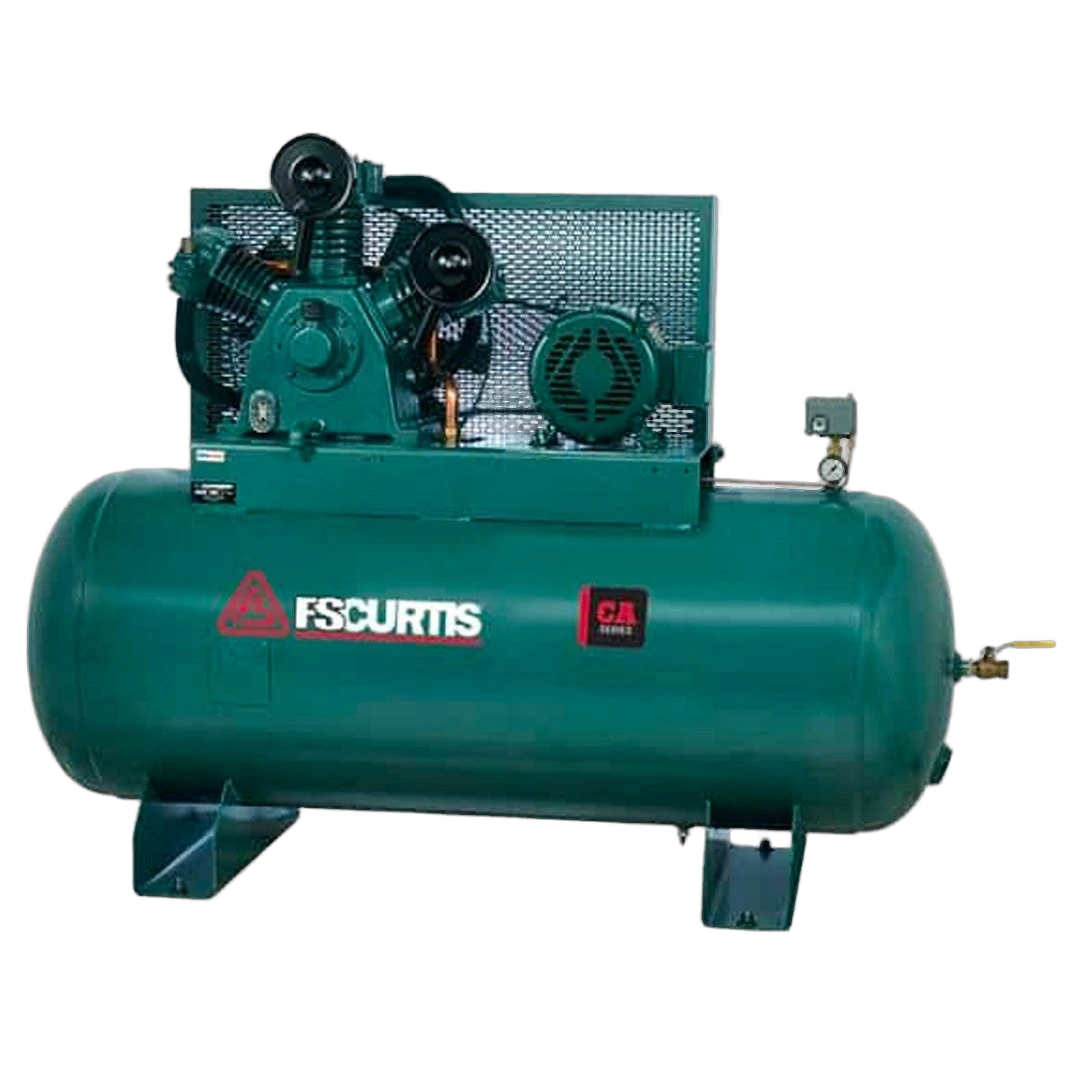

FS-Curtis FCA10E71H1U-D9L1XX – 10 HP 120-Gal Air Compressor

The FS-Curtis FCA10E71H1U-D9L1XX is a 10.00 HP 2-stage reciprocating piston air compressor delivering 34.20 SCFM @ 175 PSI on a 120.0-gallon tank, wired for 230/1. The unit is splash-lubricated, in a simplex configuration. Suited to mid-tier production cells, fabrication shops, automotive service centers, and contractor air demands. Listed at approximately $7,058. OEM datasheet needed for shipping weight and duty cycle rating.

CFM

34.2 @ 175 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.42CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$206$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylindertwo-stage cast iron

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM34.2 @ 175 PSI

CFM / HP3.42

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage230/3

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1026 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 127 · 10 HP

Sizing & pricevs. 127 in class

SCFM @ 10 HP34.2cfm
17median 34.279
0% vs. median
Average price$7,058
$3,555median $7,494$27k
-5.8% vs. median

Efficiency vs. peersvs. 127 in class

CFM per HP3.42cfm/hp
1.72median 3.427.96
0% vs. median
Price per CFM$206$/scfm
$103median $210$517
-2.1% vs. median
