What horsepower is the FS-Curtis FCA07E57V8S air compressor?

The FS-Curtis FCA07E57V8S is rated at 7.5 HP.

How much air does the FS-Curtis FCA07E57V8S produce?

The FS-Curtis FCA07E57V8S delivers 23.2 SCFM at 175 PSI.

What size tank does the FS-Curtis FCA07E57V8S have?

The FS-Curtis FCA07E57V8S has a 80-gallon vertical tank.

Is the FS-Curtis FCA07E57V8S single-stage or two-stage?

The FS-Curtis FCA07E57V8S is a two-stage compressor.

What voltage does the FS-Curtis FCA07E57V8S require?

The FS-Curtis FCA07E57V8S runs on 230/1.

What is the duty cycle of the FS-Curtis FCA07E57V8S?

The FS-Curtis FCA07E57V8S has a 100% duty cycle.

What is the FS-Curtis FCA07E57V8S best for?

The FS-Curtis FCA07E57V8S is best suited for Compressed air supply for industrial plants, fabrication, and automotive service.

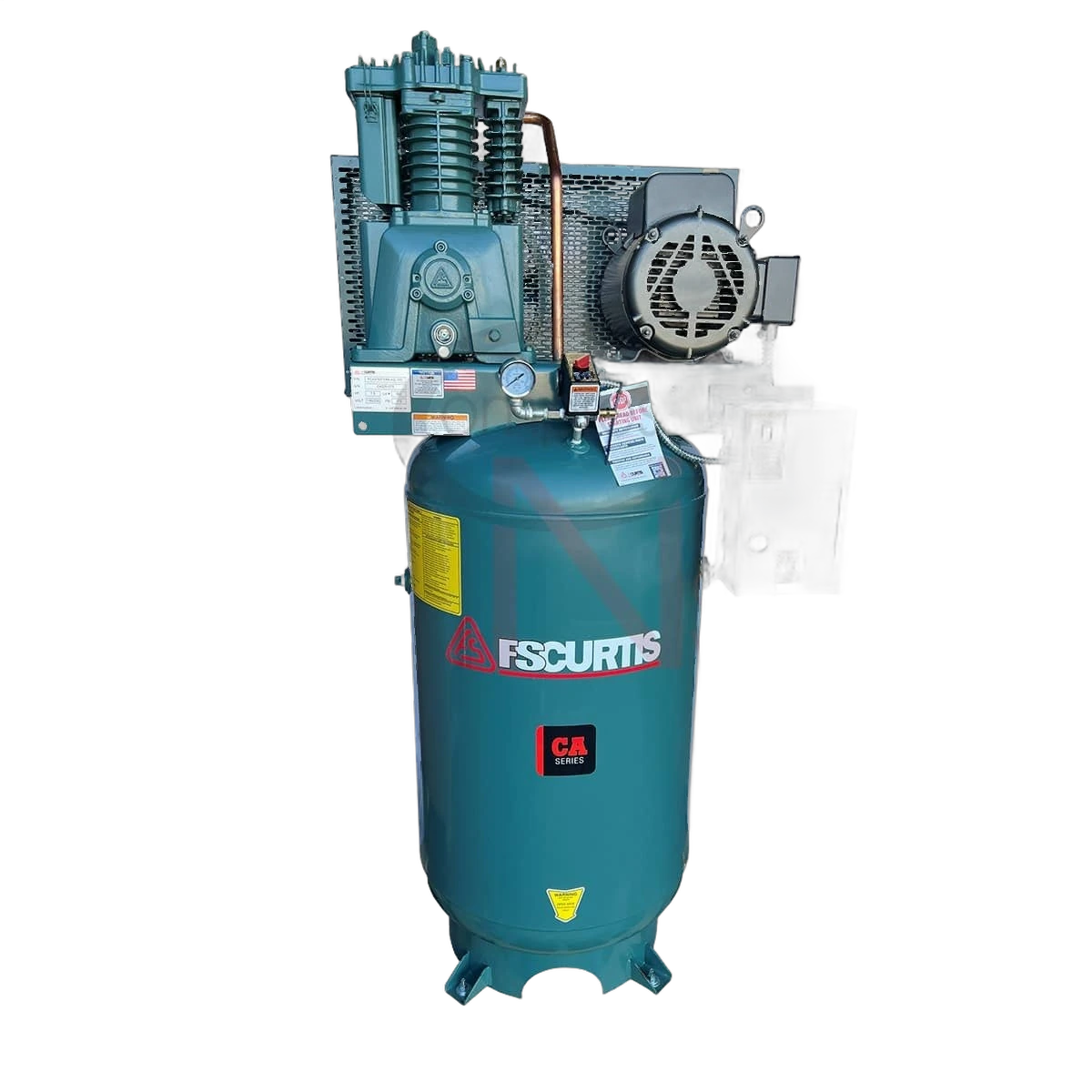

FS-Curtis FCA07E57V8S – 7.5 HP 80-Gal 2-Stage Air Compressor

The FS-Curtis FCA07E57V8S is a 7.5 HP two-stage splash-lubricated reciprocating air compressor in the FS-Curtis CA Series. It delivers 23.2 SCFM at 175 PSI from a 2-cylinder E57 pump and a 80-gallon vertical ASME-certified receiver tank.

7.50

CFM

23.2 @ 175 PSI

Duty

100% continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

3.09CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$188$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM23.2 @ 175 PSI

CFM / HP3.09

Cut-in / out—

Tank fill—

Est. draw6.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,363

Maintenance · yearlyEst. $188

Savings with Compressor Controller · yearlyEst. $544–$993

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight530 lb

FormVertical · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 182 · 7.5 HP

Sizing & pricevs. 182 in class

SCFM @ 7.5 HP23.2cfm
20median 2457
-3.3% vs. median
Average price$4,361
$1,698median $5,117$19k
-14.8% vs. median

Efficiency vs. peersvs. 182 in class

CFM per HP3.09cfm/hp
2.67median 3.27.65
-3.3% vs. median
Price per CFM$188$/scfm
$69median $211$632
-11.3% vs. median

Where this is sold

Compressors Now
Verified 4 weeks ago
$4,361
Lowest

Find an installer / dealer near youAuthorized FS-Curtis dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
