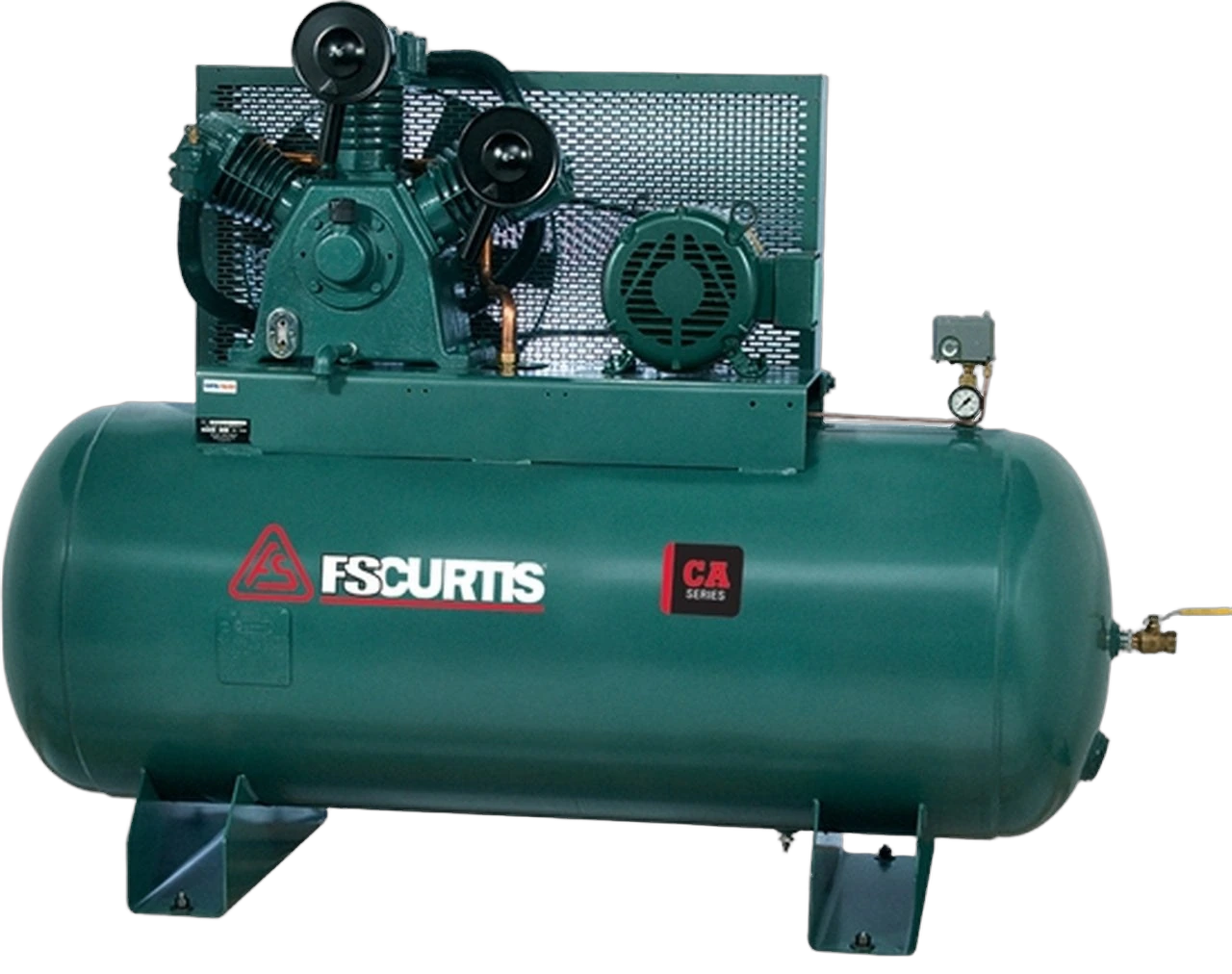

FS-Curtis FCA07E57H8S-A2L1XX is a 7.5 HP two-stage reciprocating industrial air compressor delivering 23.2 SCFM at 175 PSI on an 80-gallon horizontal tank, wired for 230V single-phase power. The FCA series uses splash-lubricated cast-iron piston construction in a simplex configuration, suited for automotive shops, light fabrication, maintenance operations, and intermittent industrial air. The H8S designation indicates horizontal tank orientation with 8-gallon-per-HP sizing. Maximum operating pressure is 175 PSI. Key gaps: unit weight (lbs), noise level (dB), duty cycle percentage, and footprint dimensions not confirmed. The FCA07E57H8S-A2L1XX is available through authorized FS-Curtis distributors.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1708 units
- Peer class
- 182 · 7.5 HP
- SCFM @ 7.5 HP23.2cfm20median 2457-3.3% vs. median
- Average price$4,142$1,698median $5,117$19k-19.1% vs. median
- CFM per HP3.09cfm/hp2.67median 3.27.65-3.3% vs. median
- Price per CFM$179$/scfm$69median $211$632-15.7% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
