What horsepower is the FS-Curtis ES04 air compressor?

The FS-Curtis ES04 is rated at 5 HP.

How much air does the FS-Curtis ES04 produce?

The FS-Curtis ES04 delivers 14.5 SCFM at 116 PSI.

What size tank does the FS-Curtis ES04 have?

The FS-Curtis ES04 has a 60-gallon tank.

Is the FS-Curtis ES04 single-stage or two-stage?

The FS-Curtis ES04 is a single-stage compressor.

What voltage does the FS-Curtis ES04 require?

The FS-Curtis ES04 runs on 460.

Is the FS-Curtis ES04 oil-free or oil-lubricated?

The FS-Curtis ES04 is oil-free.

What is the duty cycle of the FS-Curtis ES04?

The FS-Curtis ES04 has a 100% duty cycle.

What is the FS-Curtis ES04 best for?

The FS-Curtis ES04 is best suited for Clean oil-free air for electronics, pharmaceutical, medical and food applications.

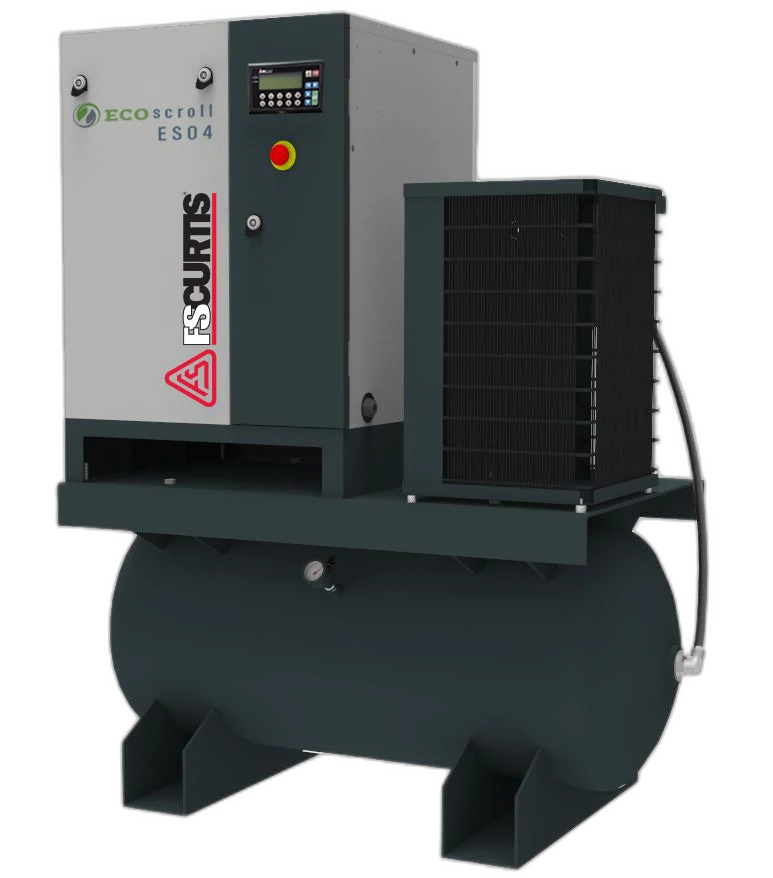

FS-Curtis ES04 – 5 HP 60-Gallon Scroll Air Compressor

FS-Curtis ES04 is a 5 HP oil-free scroll air compressor delivering 14.5 SCFM at up to 116 PSI on a 60-gallon tank, wired for 460 V, and weighing 331 lb. List price is approximately 9,438 USD through FS-Curtis authorized industrial distributors. The ES series (FS-Curtis ECO Scroll) targets clean-air applications where oil carryover is unacceptable: food and beverage, electronics, laboratory, and pharmaceutical compressed-air systems. The 460 V configuration suits industrial facilities with three-phase power distribution. Rated 100% duty cycle. Key gaps: OEM datasheet URL from fs-curtis.com not located; noise level (dB) and dimensional specs not published.

CFM

14.5 @ 116 PSI

Duty

100% continuous

Tank size

60 gal

Air output per horsepowerAirflow per motor HP

2.90CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage scroll

70%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$651$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage scroll

Cylinder—

Pump RPM—

Lubricationoil-free

Oiloil-free (ISO 8573-1 Class 0)

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM14.5 @ 116 PSI

CFM / HP2.90

Cut-in / out—

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

ELECTRICAL & FORM

Serviceelectric

Voltage460

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight331 lb

Form— · 60 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 12 · 5 HP

Sizing & pricevs. 12 in class

SCFM @ 5 HP14.5cfm
12median 14.515
0% vs. median
Average price$10,015
$5,557median $11,484$13k
-12.8% vs. median

Efficiency vs. peersvs. 12 in class

CFM per HP2.9cfm/hp
2.44median 2.93.04
0% vs. median
Price per CFM$682$/scfm
$365median $792$1,043
-13.9% vs. median
