S017205-230-175

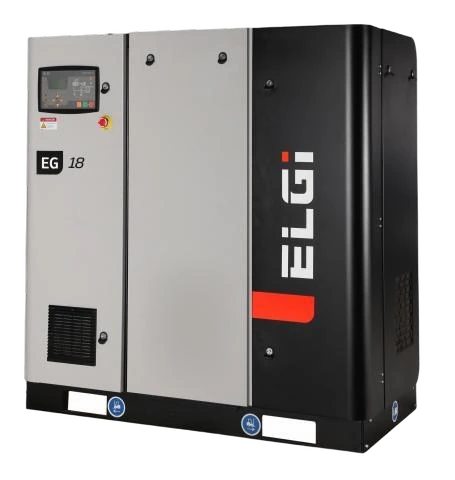

The ELGi S017205-230-175 is a 25 HP rotary screw air compressor delivering 117 SCFM at 100 PSI, wired for 230V three-phase, oil-lubricated. Machine weight is 1,411 lbs. Single-stage, continuous-duty design with no piston reciprocation. Model designation encodes key parameters: 017205 = ELGi internal model reference, 230 = voltage class, 175 = max PSI rating (175 PSI max; working delivery documented at 100 PSI). At 117 SCFM, the unit supports large-scale manufacturing air, multiple simultaneous tool stations, spray booths, and high-volume pneumatic processes. Three-phase supply required. The 25 HP class positions this unit for medium industrial production air. Tank size is not listed in available source data — may be designed for integration with a separate receiver system. Weight of 1,411 lbs reflects the heavy screw element and motor assembly for this power class.
