What horsepower is the ELGi S017197-460-100 air compressor?

The ELGi S017197-460-100 is rated at 15 HP.

How much air does the ELGi S017197-460-100 produce?

The ELGi S017197-460-100 delivers 71 SCFM at 100 PSI.

What is the maximum pressure of the ELGi S017197-460-100?

The ELGi S017197-460-100 has a maximum operating pressure of 175 PSI.

What size tank does the ELGi S017197-460-100 have?

The ELGi S017197-460-100 has a 0-gallon tank.

Is the ELGi S017197-460-100 single-stage or two-stage?

The ELGi S017197-460-100 is a single-stage compressor.

What voltage does the ELGi S017197-460-100 require?

The ELGi S017197-460-100 runs on 460V/3ph.

Is the ELGi S017197-460-100 oil-free or oil-lubricated?

The ELGi S017197-460-100 is oil-lubricated.

What is the duty cycle of the ELGi S017197-460-100?

The ELGi S017197-460-100 has a 100% duty cycle.

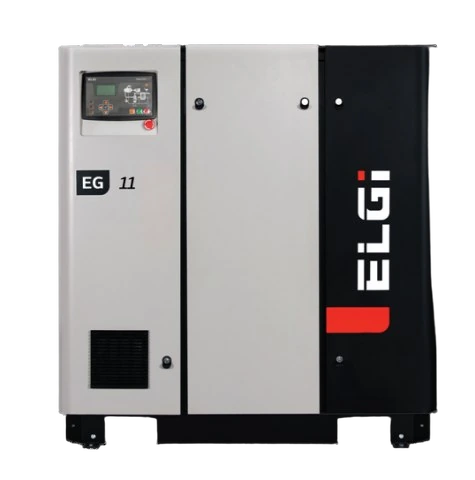

ELGi S017197-460-100

ELGi S017197-460-100 is a 15 HP single-stage oil-lubricated rotary screw air compressor delivering 71 SCFM @ 100 PSI (max 175 PSI), wired for 230V/3-phase, simplex base-mount configuration. Part of the ELGi EG-series, this unit weighs 1,213 lbs. Configurable from 100 to 175 PSI per retailer description. Suitable for industrial plants requiring high-volume continuous air supply. Retail price approximately $15,804 (single-vendor: Compressed Air Advisors). MPN: S017197-460-100. Gaps: OEM datasheet not confirmed via elgi.com; series classification (EG-11 per retailer) needs cross-check with official ELGi catalog; duty cycle not specified.

CFM

71 @ 100 PSI

Duty

100% continuous

Tank size

— gal

Air output per horsepowerAirflow per motor HP

4.73CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$223$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-lubricated

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM71 @ 100 PSI

CFM / HP4.73

Cut-in / out—

Tank fill—

Est. draw13.2 kW

COST & MAINTENANCE

Electric · yearlyEst. $4,727

Maintenance · yearlyEst. $375

ELECTRICAL & FORM

Serviceelectric

Voltage460V/3ph

Amps—

Motor—

Motor RPM—

ControlELGi Neuron / Neuron XT controller

Starter—

Weight1213 lb

Form—

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 44 · 15 HP

Sizing & pricevs. 44 in class

SCFM @ 15 HP71cfm
20median 55.571
+28% vs. median
Average price$15,804
$9,196median $14,432$25k
+9.5% vs. median

Efficiency vs. peersvs. 44 in class

CFM per HP4.73cfm/hp
1.33median 3.734.73
+27% vs. median
Price per CFM$223$/scfm
$153median $251$905
-11.4% vs. median
