ELGi · EN · SINGLE-STAGE ROTARY SCREW
🇮🇳Commercial / Industrial

EN 05

7.50 HP · 100% duty · electric · oil-flooded screw · 1-stage
AVERAGE PRICE
$10,495
1 retailer

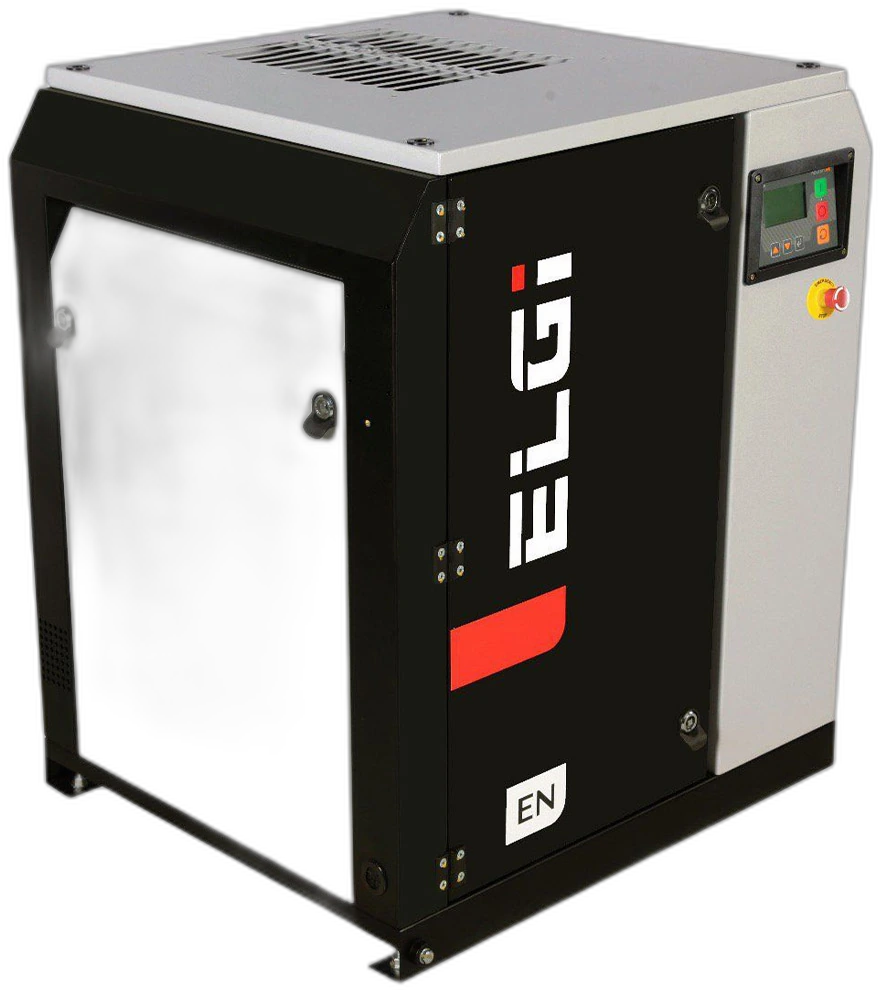

ELGi EN 05

ELGi EN 05 is a 7.5 HP single-stage rotary screw compressor delivering 26.5 SCFM at 125 PSI on a 60-gallon tank, rated for 100 percent continuous duty. ELGi (Elgi Equipments Limited) is a global industrial compressor manufacturer with strong North American distribution; the EN-Series competes directly with Quincy QGS and Ingersoll Rand R-Series at attractive price-per-CFM. Configurations are offered in 1-phase 230V, 3-phase 208/230/460V, with optional integrated refrigerated dryer (G2A suffix), and tank sizes up to 120 gallons. The microprocessor controller manages load/unload, low-oil cutout, overtemp, and total run hours. Best for production shops, busy auto bays, body shops, woodworking shops, and continuous-duty applications that have outgrown a piston compressor. ELGi backs the airend with extended warranty when factory fluids and filters are used. Built to ISO 9001 standards.

HP
7.50
CFM
26.5 @ 125 PSI
Duty
100% continuous
Tank size
60 gal
Air output per horsepowerAirflow per motor HP
3.53CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 1-stage rotary screw
75%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$249$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages1-stage screw
Cylinder
Pump RPM
Lubricationoil-flooded screw
OilISO 46 synthetic rotary screw fluid
Sump
Pump life100,000 hrs
Pump material
Head material
Intercooler
PERFORMANCE
Catalog CFM26.5 @ 125 PSI
CFM / HP3.53
Cut-in / out
Tank fill
Est. draw6.6 kW
COST & MAINTENANCE
Electric · yearlyEst. $2,363
Maintenance · yearlyEst. $188
ELECTRICAL & FORM
Serviceelectric
Voltage208/230/460
Amps
Motor
Motor RPM1750 rpm
Control
Starter
Weight800 lb
Form— · 60 gal · 200 PSI tank rating
BUILD & ENVIRONMENT
Air outlet1/2 in NPT
DrainManual ball valve standard
Drain outlet
ASME tankYes
Made in USA
Noise64 dBA
Op. temp40–104 °F
Dimensions24 x 28 x 33 in
Ship weight
Warranty

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1655 units
Peer class
32 · 7.5 HP
Sizing & pricevs. 32 in class
  • SCFM @ 7.5 HP26.5cfm
    20median 2952
    -8.6% vs. median
  • Average price$10,495
    $6,689median $10,084$26k
    +4.1% vs. median
Efficiency vs. peersvs. 32 in class
  • CFM per HP3.53cfm/hp
    2.72median 3.876.93
    -8.6% vs. median
  • Price per CFM$324$/scfm
    $177median $346$524
    -6.7% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$6,275$7,786$9,297$10,808avg $8,541today-10d-20d-30d
Compressor World
Compressor Pros
