What horsepower is the DeWalt DXCMH5593011 air compressor?

The DeWalt DXCMH5593011 is rated at 5.5 HP.

How much air does the DeWalt DXCMH5593011 produce?

The DeWalt DXCMH5593011 delivers 13.8 SCFM at 90 PSI.

What is the maximum pressure of the DeWalt DXCMH5593011?

The DeWalt DXCMH5593011 has a maximum operating pressure of 175 PSI.

What size tank does the DeWalt DXCMH5593011 have?

The DeWalt DXCMH5593011 has a 30-gallon horizontal tank.

Is the DeWalt DXCMH5593011 single-stage or two-stage?

The DeWalt DXCMH5593011 is a two-stage compressor.

What voltage does the DeWalt DXCMH5593011 require?

The DeWalt DXCMH5593011 runs on 120.

What is the DeWalt DXCMH5593011 best for?

The DeWalt DXCMH5593011 is best suited for Honda-powered gas truck-mount compressor for roofing, framing, and remote-site work without power access..

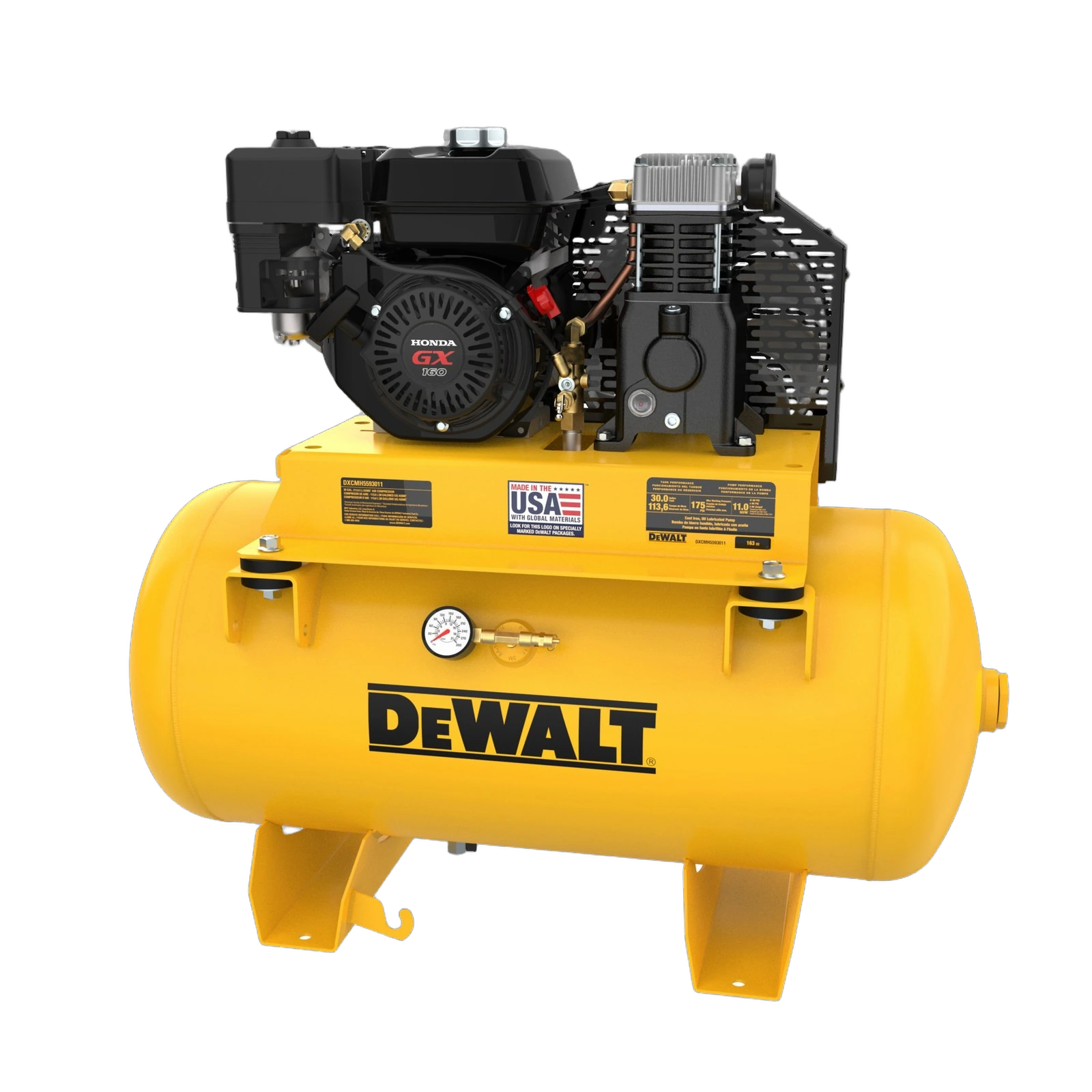

DeWalt DXCMH5593011 – 5.5 HP 30-Gallon Air Compressor

DeWalt DXCMH5593011 is a 5.5 HP industrial reciprocating piston compressor delivering 13.8 SCFM at 90 PSI on a 30-gallon horizontal tank, running Honda GX160. Rated for 100% continuous duty.

5.50

CFM

13.8 @ 90 PSI

Duty

— continuous

Tank size

30 gal

Air output per horsepowerAirflow per motor HP

2.51CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$129$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder2-cylinder

Pump RPM—

Lubrication—

OilOil-Lube

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM13.8 @ 90 PSI

CFM / HP2.51

Cut-in / out—

Tank fill—

Est. draw4.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $1,733

Maintenance · yearlyEst. $138

Savings with Compressor Controller · yearlyEst. $399–$728

ELECTRICAL & FORM

ServiceHonda GX160

Voltage120

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight220 lb

FormHorizontal · 30 gal · 225 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1/2 in NPT

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USA—

Noise—

Op. temp40–104 °F

Dimensions58 x 32 x 53 in

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 4 · 5.5 HP

Sizing & pricevs. 4 in class

SCFM @ 5.5 HP13.8cfm
4median 9.413
+46.8% vs. median
Average price$1,949
$1,203median $1,427$2k
+36.5% vs. median

Efficiency vs. peersvs. 4 in class

CFM per HP2.51cfm/hp
0.84median 1.732.51
+45.3% vs. median
Price per CFM$130$/scfm
$130median $156$261
-16.5% vs. median
