What horsepower is the DeWalt DCC2520T1 air compressor?

The DeWalt DCC2520T1 is rated at 0.4 HP.

How much air does the DeWalt DCC2520T1 produce?

The DeWalt DCC2520T1 delivers 1.2 SCFM at 90 PSI.

What is the maximum pressure of the DeWalt DCC2520T1?

The DeWalt DCC2520T1 has a maximum operating pressure of 140 PSI.

What size tank does the DeWalt DCC2520T1 have?

The DeWalt DCC2520T1 has a 2.5-gallon pancake tank.

Is the DeWalt DCC2520T1 single-stage or two-stage?

The DeWalt DCC2520T1 is a single-stage compressor.

What voltage does the DeWalt DCC2520T1 require?

The DeWalt DCC2520T1 runs on 20V.

What is the duty cycle of the DeWalt DCC2520T1?

The DeWalt DCC2520T1 has a 25% duty cycle.

What is the DeWalt DCC2520T1 best for?

The DeWalt DCC2520T1 is best suited for Cordless 20V battery-powered portable compressor for job-site trim work and inflation without AC power..

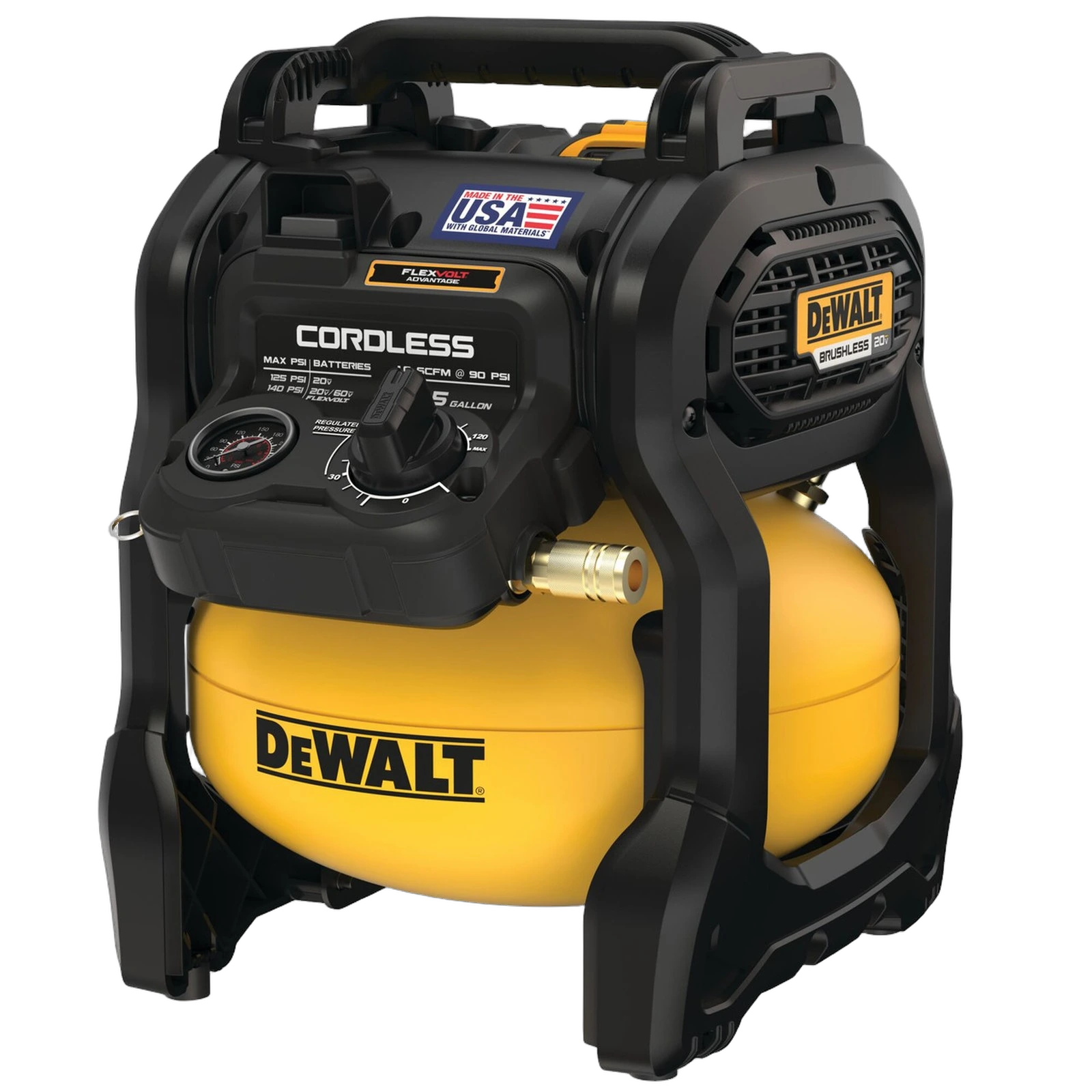

DeWalt DCC2520T1 – 0.4 HP 2.5-Gallon Pancake Air Compressor

DeWalt DCC2520T1 is a 0.4 HP cordless / DC-powered portable compressor delivering 1.2 SCFM at 90 PSI, max 140 PSI on a 2.5-gallon tank, running on 20V/60V Flex. Rated for 25% duty. Cordless platform tool for job-site / mobile use.

0.40

CFM

1.2 @ 90 PSI

Duty

25% continuous

Tank size

3 gal

Air output per horsepowerAirflow per motor HP

3CFM/HP

Poor 2.8Typical 3.15Good 3.5

Price per cubic foot · minuteVerified retailer price

$264$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage

Cylinder—

Pump RPM—

Lubrication—

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM1.2 @ 90 PSI

CFM / HP3

Cut-in / out—

Tank fill—

Est. draw0.4 kW

COST & MAINTENANCE

Electric · yearlyEst. $126

Maintenance · yearlyEst. $80

ELECTRICAL & FORM

Service20V/60V Flex

Voltage20V

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight22 lb

FormPancake · 3 gal · 175 PSI tank rating

BUILD & ENVIRONMENT

Air outlet3/8 in NPT

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp40–104 °F

Dimensions14 x 12 x 15 in

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 1 · 0.4 HP

Sizing & pricevs. 1 in class

SCFM @ 0.4 HP1.2cfm
1median 1.22
0% vs. median
Average price$317
$316median $316$317
0% vs. median

Efficiency vs. peersvs. 1 in class

CFM per HP3cfm/hp
3median 34
-0% vs. median
Price per CFM$264$/scfm
$263median $263$264
-0% vs. median
