What horsepower is the Chicago Pneumatic QRS 5 TMD-3 air compressor?

The Chicago Pneumatic QRS 5 TMD-3 is rated at 5 HP.

How much air does the Chicago Pneumatic QRS 5 TMD-3 produce?

The Chicago Pneumatic QRS 5 TMD-3 delivers 16.6 SCFM at 150 PSI.

What size tank does the Chicago Pneumatic QRS 5 TMD-3 have?

The Chicago Pneumatic QRS 5 TMD-3 has a 60-gallon tank.

Is the Chicago Pneumatic QRS 5 TMD-3 single-stage or two-stage?

The Chicago Pneumatic QRS 5 TMD-3 is a single-stage compressor.

What voltage does the Chicago Pneumatic QRS 5 TMD-3 require?

The Chicago Pneumatic QRS 5 TMD-3 runs on 208.

What is the duty cycle of the Chicago Pneumatic QRS 5 TMD-3?

The Chicago Pneumatic QRS 5 TMD-3 has a 100% duty cycle.

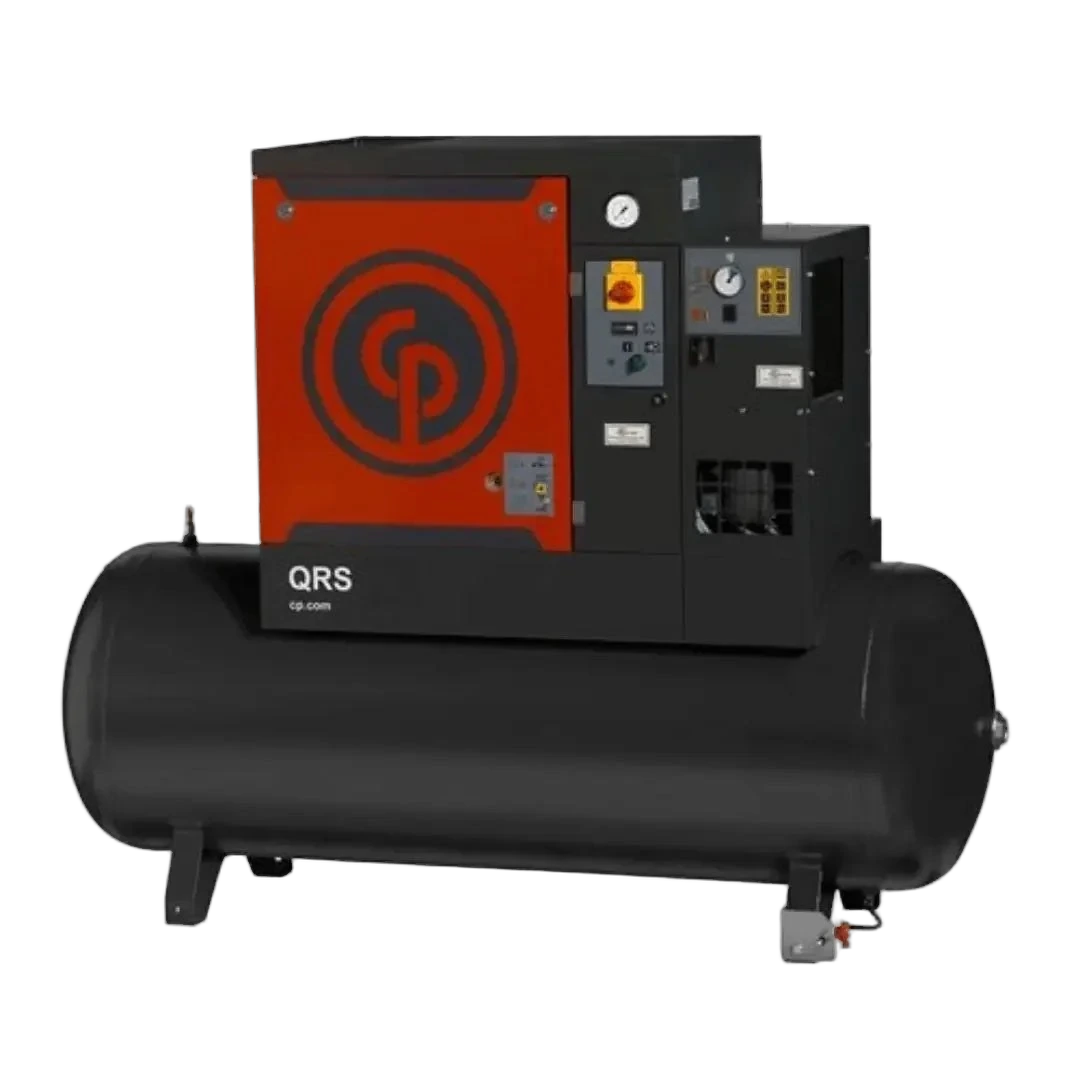

Chicago Pneumatic QRS 5 TMD-3 – 5 HP 60-Gal Screw Compressor

Chicago Pneumatic QRS 5 TMD-3 is a 5.00 HP single-stage simplex air compressor delivering 60.0-gallon tank, 208. maximum working pressure 150 PSI. 100% duty cycle. shipping weight 474 lb. Saylor-Beall suspended retail distribution in 2022; pricing available through authorized dealers only.

CFM

16.6 @ 150 PSI

Duty

100% continuous

Tank size

60 gal

Air output per horsepowerAirflow per motor HP

3.32CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$592$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubrication—

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM16.6 @ 150 PSI

CFM / HP3.32

Cut-in / out—

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

ELECTRICAL & FORM

Service—

Voltage208

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight474 lb

Form— · 60 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 42 · 5 HP

Sizing & pricevs. 42 in class

SCFM @ 5 HP16.6cfm
16median 19.922
-16.6% vs. median
Average price$9,834
$5,810median $8,607$11k
+14.3% vs. median

Efficiency vs. peersvs. 42 in class

CFM per HP3.32cfm/hp
3.2median 3.984.4
-16.6% vs. median
Price per CFM$592$/scfm
$267median $423$709
+39.7% vs. median

Where this is sold

Retailer
Verified 1 week ago
$9,834
Lowest

Find an installer / dealer near youAuthorized Chicago Pneumatic dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

mechanicsuperstore.com
