Chicago Pneumatic · RCP · TWO-STAGE PISTON

8090300693

5 HP · electric · oil-lubricated · 2-stage
AVERAGE PRICE
$3,717
3 retailers · across retailers

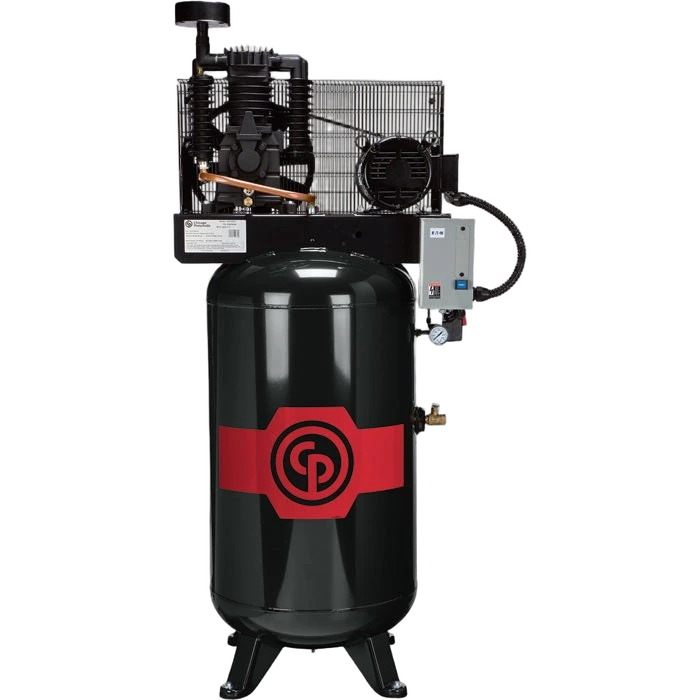

Chicago Pneumatic 8090300693

The Chicago Pneumatic 8090300693 is a 5.00 HP reciprocating piston air compressor delivering 18.00 SCFM @ 100 PSI on a 80.0-gallon tank, wired for 208-230V/1ph. The unit is oil lubricated-lubricated, in a simplex configuration. Suited to automotive service bays, small fabrication shops, and light contractor air demand. Listed at approximately $3,572. OEM datasheet needed for shipping weight and duty cycle rating.

HP
5
CFM
18 @ 100 PSI
Duty
— continuous
Tank size
80 gal
Air output per horsepowerAirflow per motor HP
3.60CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 2-stage piston
67%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$198$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages2-stage recip
Cylinder—
Pump RPM—
Lubricationoil-lubricated
Oil—
Sump—
Pump life—
Pump material—
Head material—
Intercooler—
PERFORMANCE
Catalog CFM18 @ 100 PSI
CFM / HP3.60
Cut-in / out—
Tank fill—
Est. draw4.4 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $1,576
Maintenance · yearlyEst. $125
Savings with Compressor Controller · yearlyEst. $362–$662
ELECTRICAL & FORM
Serviceelectric
Voltage208-230V/1ph
Amps—
Motor—
Motor RPM—
Control—
Starter—
Weight580 lb
Form— · 80 gal
BUILD & ENVIRONMENT
Air outlet—
Drain—
Drain outlet—
ASME tank—
Made in USA—
Noise—
Op. temp—
Dimensions—
Ship weight—
Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1708 units
Peer class
160 · 5 HP
Sizing & pricevs. 160 in class
  • SCFM @ 5 HP18cfm
    10median 17.238
    +4.7% vs. median
  • Average price$3,717
    $962median $4,182$17k
    -11.1% vs. median
Efficiency vs. peersvs. 160 in class
  • CFM per HP3.6cfm/hp
    2.08median 3.447.64
    +4.7% vs. median
  • Price per CFM$198$/scfm
    $82median $235$864
    -15.8% vs. median
Where this is sold3 verified retailers · USD
Find an installer / dealer near youAuthorized Chicago Pneumatic dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$3,546$3,673$3,800$3,927avg $3,717today-10d-20d-30d
