Chicago Pneumatic · RCP · TWO-STAGE PISTON

8090300669

11 HP · gas · oil-lubricated · 2-stage
LOWEST PRICE
$4,669
Chicago Pneumatic 8090300669

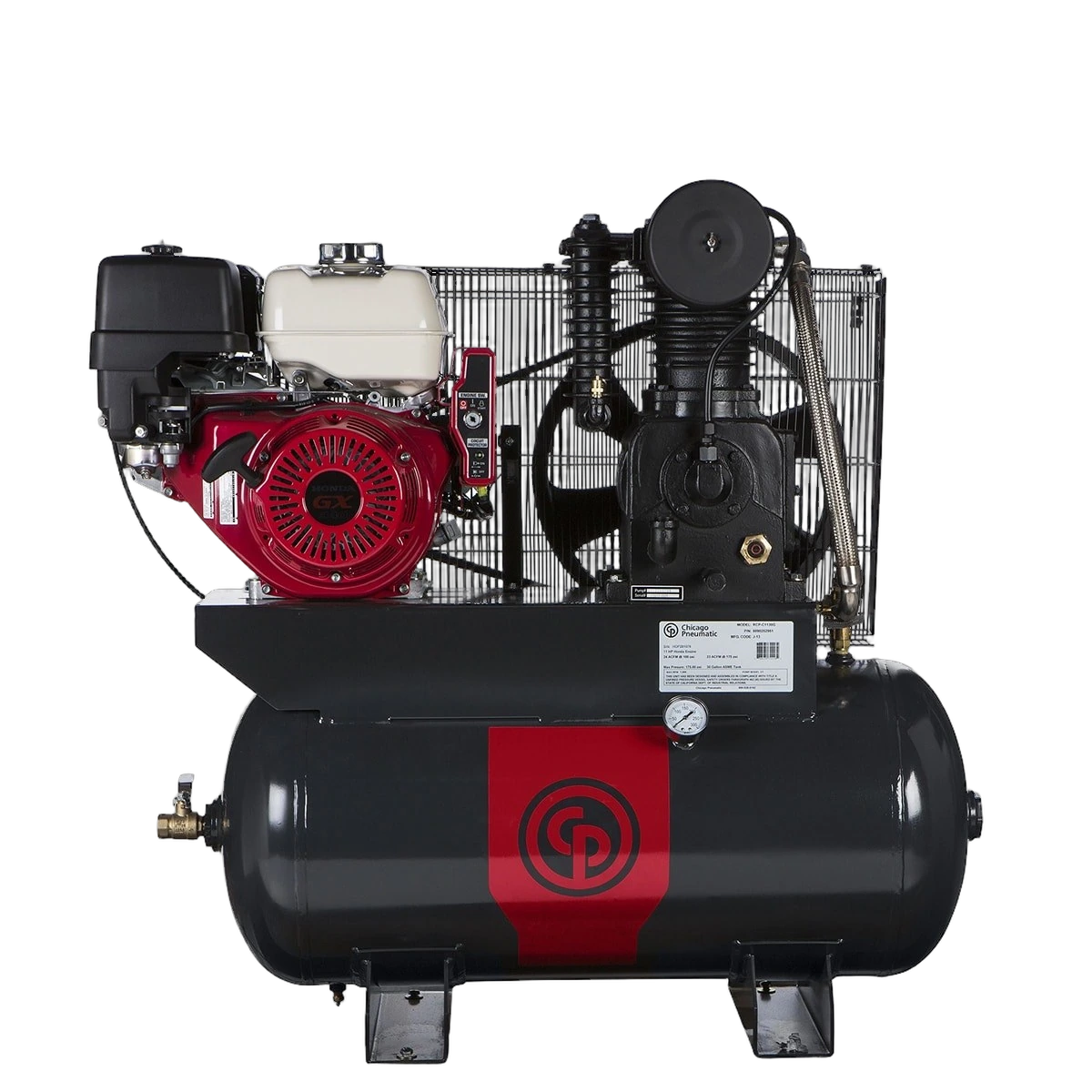

Chicago Pneumatic 8090300669 is an 11 HP gas-engine-driven two-stage reciprocating oil-lubricated simplex air compressor on a 30-gallon tank, priced at $4,669 (verified May 2026). Gas drive makes it suited for jobsite and remote work where utility power is unavailable. Key specs: 11 HP gas engine, two-stage cast-iron pump, 30-gallon tank, oil-lubricated, simplex configuration. SCFM output and PSI rating are not yet confirmed in primary source documentation; consult the Chicago Pneumatic distributor or the OEM product page for model 8090300669. Applications include construction jobsites, pipeline work, and off-grid industrial air supply where portability and gas independence are required.

HP
11
CFM
18 @ 100 PSI
Duty
— continuous
Tank size
30 gal
Air output per horsepowerAirflow per motor HP
1.64CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 2-stage piston
67%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$259$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages2-stage recip
Cylinder—
Pump RPM—
Lubricationoil-lubricated
Oil—
Sump—
Pump life—
Pump material—
Head material—
Intercooler—
PERFORMANCE
Catalog CFM18 @ 100 PSI
CFM / HP1.64
Cut-in / out—
Tank fill—
Est. draw9.7 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $3,466
Maintenance · yearlyEst. $275
Savings with Compressor Controller · yearlyEst. $797–$1,456
ELECTRICAL & FORM
Servicegas
Voltage—
Amps—
Motor—
Motor RPM—
Control—
Starter—
Weight481 lb
Form— · 30 gal
BUILD & ENVIRONMENT
Air outlet—
Drain—
Drain outlet—
ASME tank—
Made in USA—
Noise—
Op. temp—
Dimensions—
Ship weight—
Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1655 units
Peer class
3 · 11 HP
Sizing & pricevs. 3 in class
  • SCFM @ 11 HP18cfm
    18median 2324
    -21.7% vs. median
  • Average price$4,669
    $3,597median $4,669$7k
    0% vs. median
Efficiency vs. peersvs. 3 in class
  • CFM per HP1.64cfm/hp
    1.64median 2.092.18
    -21.7% vs. median
  • Price per CFM$259$/scfm
    $156median $259$271
    -0% vs. median
Where this is soldPricing pending verification
