Champion · VR · TWO-STAGE PISTON

VR10-8S

10 HP · electric · oil-lubricated · 2-stage
AVERAGE PRICE
$7,054
2 retailers · across retailers

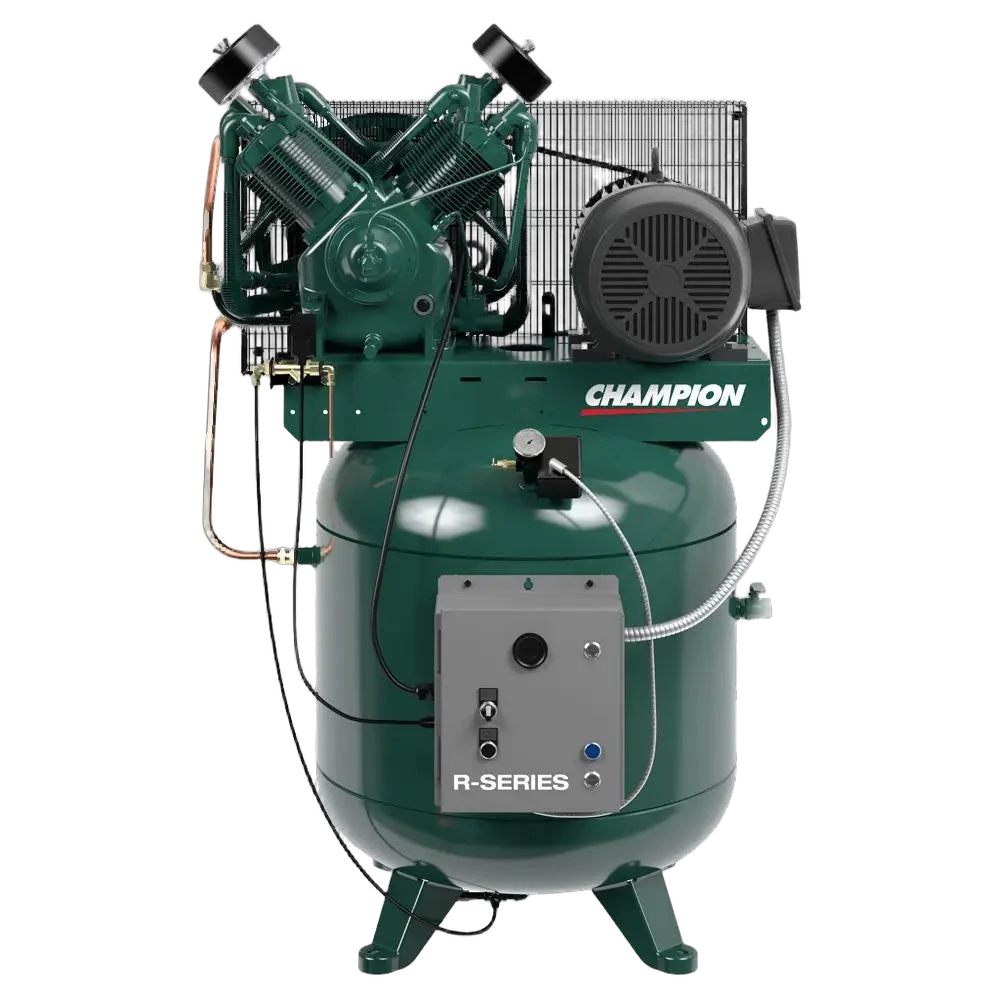

Champion VR10-8S

Champion VR10-8S is a 10-HP two-stage oil-lubricated reciprocating industrial air compressor in the VR Series, delivering 33.80 SCFM at 175 PSI maximum on an 80-gallon vertical tank. The two-stage design compresses air in successive cylinders to reach the 175 PSI rating, making the VR10-8S well suited for auto shops, industrial maintenance, and pneumatic tooling applications requiring sustained high-pressure output. Shipping weight is 766 lb and the list price is approximately ,115. The VR Series vertical squat configuration minimizes floor footprint while maintaining the large receiver volume needed for peak demand. Oil lubrication provides long service life under continuous-duty use compared to oil-free alternatives. Buyers should confirm wiring voltage and phase requirements with the Champion dealer prior to purchase, as the recorded voltage may require verification against the OEM spec sheet for this 10-HP configuration.

HP
10
CFM
33.8 @ 175 PSI
Duty
continuous
Tank size
80 gal
Air output per horsepowerAirflow per motor HP
3.38CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 2-stage piston
67%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$207$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages2-stage recip
Cylinder
Pump RPM718 rpm
Lubricationoil-lubricated
Oil
Sump
Pump life
Pump material
Head material
Intercooler
PERFORMANCE
Catalog CFM33.8 @ 175 PSI
CFM / HP3.38
Cut-in / out
Tank fill
Est. draw8.8 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $3,151
Maintenance · yearlyEst. $250
Savings with Compressor Controller · yearlyEst. $725–$1,323
ELECTRICAL & FORM
Serviceelectric
Voltage120
Amps
Motor
Motor RPM
Control
Startercentrifugal unloader (loadless start)
Weight766 lb
Form— · 80 gal
BUILD & ENVIRONMENT
Air outlet
Drain
Drain outlet
ASME tank
Made in USA
Noise
Op. temp
Dimensions
Ship weight
Warranty

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1655 units
Peer class
127 · 10 HP
Sizing & pricevs. 127 in class
  • SCFM @ 10 HP33.8cfm
    17median 34.279
    -1.2% vs. median
  • Average price$7,054
    $3,400median $7,494$27k
    -5.9% vs. median
Efficiency vs. peersvs. 127 in class
  • CFM per HP3.38cfm/hp
    1.72median 3.427.96
    -1.2% vs. median
  • Price per CFM$207$/scfm
    $99median $210$517
    -1.9% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$6,982$7,030$7,077$7,125avg $7,054today-10d-20d-30d
