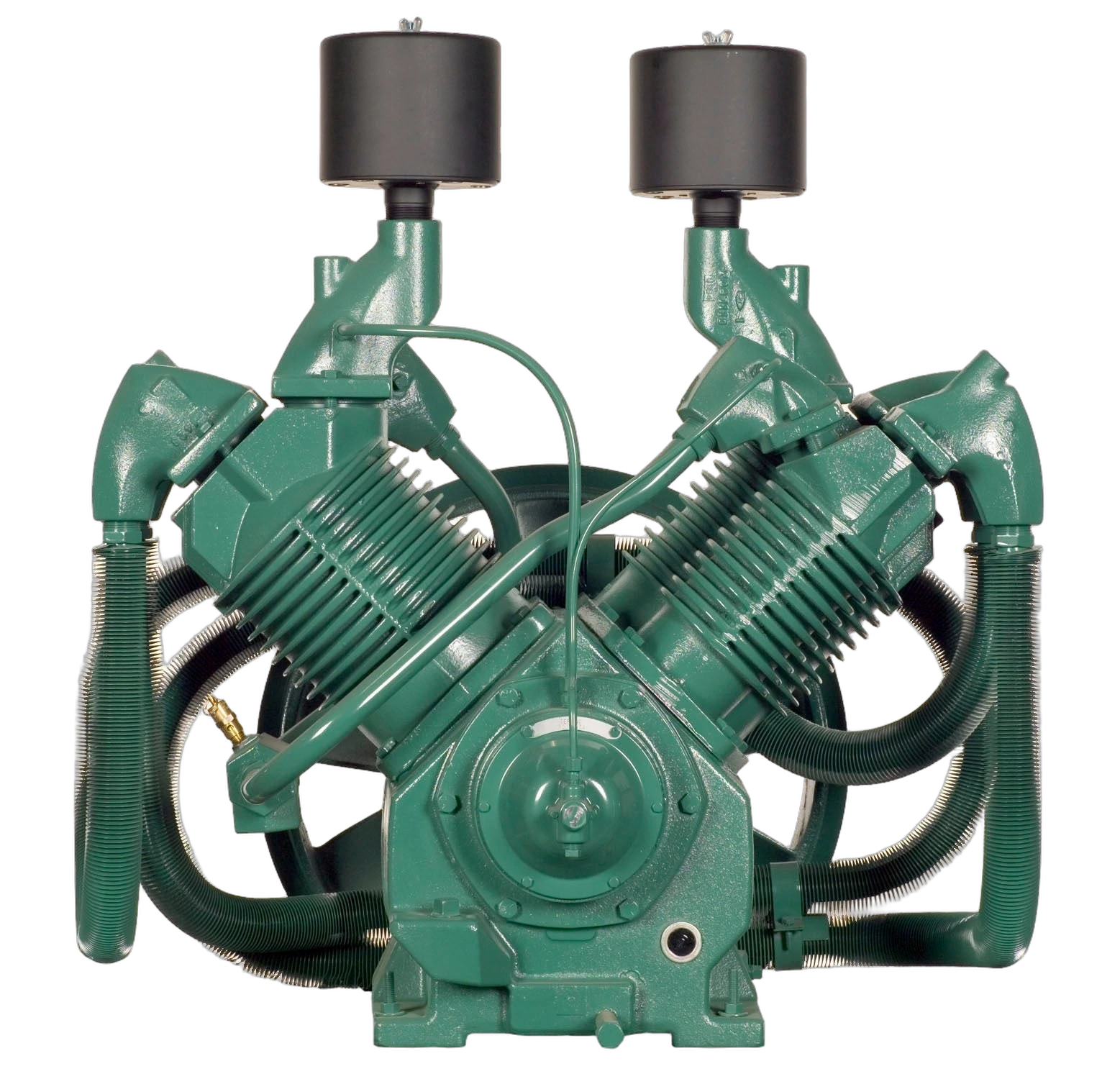

Champion R-70A is a 20 HP two-stage reciprocating air compressor delivering 67 SCFM at 175 PSI maximum on a 240-gallon horizontal tank, wired 230V single-phase, with splash-lubricated cast-iron construction, weighing 570 lb. The R-series is Champion’s heavy-duty industrial reciprocating lineup designed for sustained production use with two-stage cast-iron pumps. The R-70A designation indicates the R-series with approximately 70 SCFM output rating. Verified retail pricing approximately $8,750 from authorized distributors. Key specs: HP: 20; SCFM at 175 PSI: 67; max PSI: 175; tank: 240 gal horizontal; stages: 2; lubrication: splash; voltage: 230/1; weight: 570 lb. Applications: production facilities, automotive service centers, fabrication shops, and industrial tool supply requiring 20 HP output with large-capacity storage.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 40 · 20 HP
- SCFM @ 20 HP67cfm58median 7092-4.3% vs. median
- Average price$8,510$7,848median $15,562$39k-45.3% vs. median
- CFM per HP3.35cfm/hp2.92median 3.54.61-4.3% vs. median
- Price per CFM$121$/scfm$98median $202$589-40.3% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
