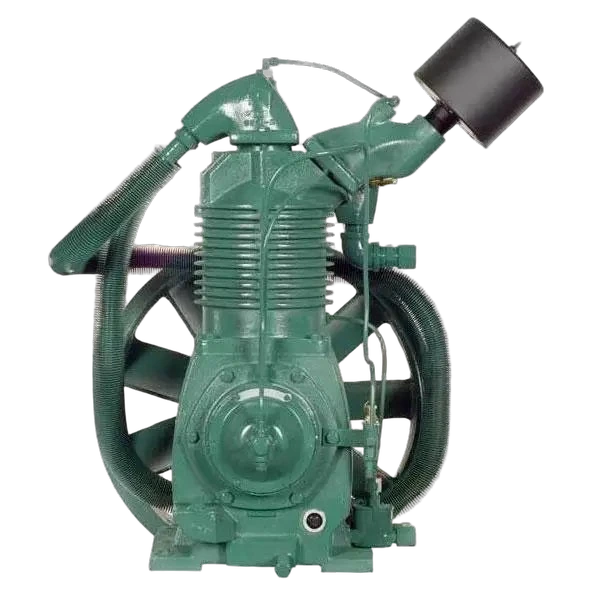

Champion R-40A is a 15 HP two-stage reciprocating air compressor delivering 51.5 SCFM at 175 PSI maximum on a 120-gallon horizontal tank, wired 230V single-phase, with splash-lubricated cast-iron construction, weighing 440 lb. The R-series is Champion’s heavy-duty industrial reciprocating lineup. The R-40A designation indicates approximately 40 SCFM nominal output rating in the R-series. Verified retail pricing approximately $6,850 from authorized distributors. Key specs: HP: 15; SCFM at 175 PSI: 51.5; max PSI: 175; tank: 120 gal horizontal; stages: 2; lubrication: splash; voltage: 230/1; weight: 440 lb. Applications: production facilities, automotive service, fabrication shops requiring 15 HP output at sustained high pressure.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 83 · 15 HP
- SCFM @ 15 HP51.5cfm17median 51111+1% vs. median
- Average price$6,850$4,621median $9,585$25k-28.5% vs. median
- CFM per HP3.43cfm/hp1.15median 3.47.44+1% vs. median
- Price per CFM$116$/scfm$96median $188$443-38.3% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
