What horsepower is the Champion HR7F air compressor?

The Champion HR7F is rated at 7.5 HP.

How much air does the Champion HR7F produce?

The Champion HR7F delivers 22.3 SCFM at 175 PSI.

What size tank does the Champion HR7F have?

The Champion HR7F has a 60-gallon tank.

Is the Champion HR7F single-stage or two-stage?

The Champion HR7F is a two-stage compressor.

What is the Champion HR7F best for?

The Champion HR7F is best suited for Industrial shop compressed air (7.5 HP, 60-gal horizontal, single or three-phase electric).

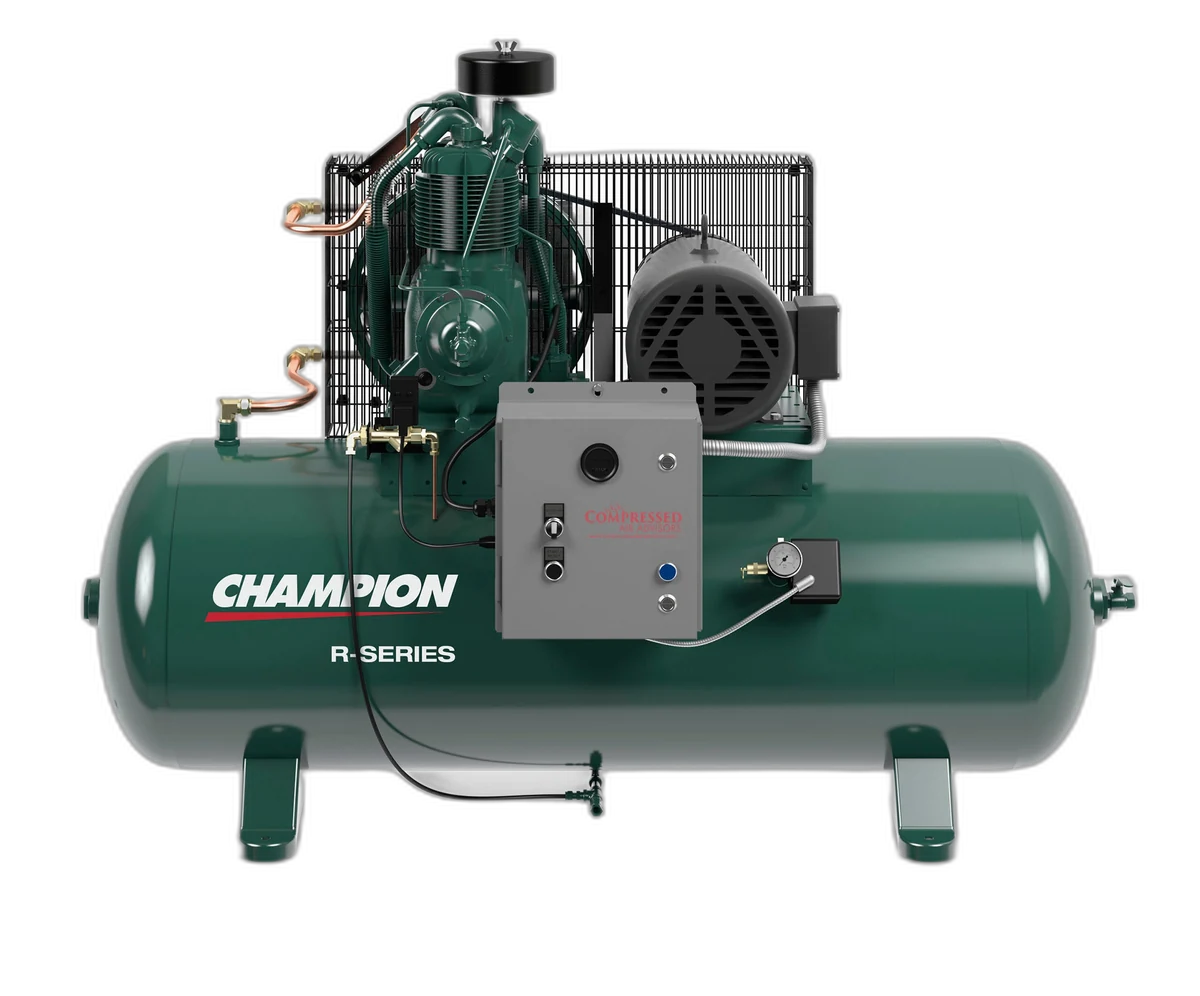

Champion HR7F – 7.5 HP 60-Gallon 2-Stage Air Compressor

Champion HR7F is a 7.5 HP two-stage splash-lubricated reciprocating air compressor from the HR series delivering 22.3 SCFM at 175 PSI on a 60-gallon horizontal tank. Driven by an ODP electric motor (208/230V or 208/230/460/575V 3-phase), R15 pump at 949 RPM, ASME/NB certified receiver, weight 565 lbs.

7.50

CFM

22.3 @ 175 PSI

Duty

— continuous

Tank size

60 gal

Air output per horsepowerAirflow per motor HP

2.97CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$200$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM949 rpm

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM22.3 @ 175 PSI

CFM / HP2.97

Cut-in / out—

Tank fill—

Est. draw6.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,363

Maintenance · yearlyEst. $188

Savings with Compressor Controller · yearlyEst. $544–$993

ELECTRICAL & FORM

Serviceelectric

Voltage208

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight565 lb

Form— · 60 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 181 · 7.5 HP

Sizing & pricevs. 181 in class

SCFM @ 7.5 HP22.3cfm
20median 2457
-7.1% vs. median
Average price$4,708
$1,698median $5,117$19k
-8% vs. median

Efficiency vs. peersvs. 181 in class

CFM per HP2.97cfm/hp
2.67median 3.27.65
-7.1% vs. median
Price per CFM$200$/scfm
$73median $208$632
-4.2% vs. median
