What horsepower is the Champion HR7F-12 air compressor?

The Champion HR7F-12 is rated at 7.5 HP.

How much air does the Champion HR7F-12 produce?

The Champion HR7F-12 delivers 22.3 SCFM at 175 PSI.

What size tank does the Champion HR7F-12 have?

The Champion HR7F-12 has a 120-gallon horizontal tank.

Is the Champion HR7F-12 single-stage or two-stage?

The Champion HR7F-12 is a two-stage compressor.

What voltage does the Champion HR7F-12 require?

The Champion HR7F-12 runs on 120.

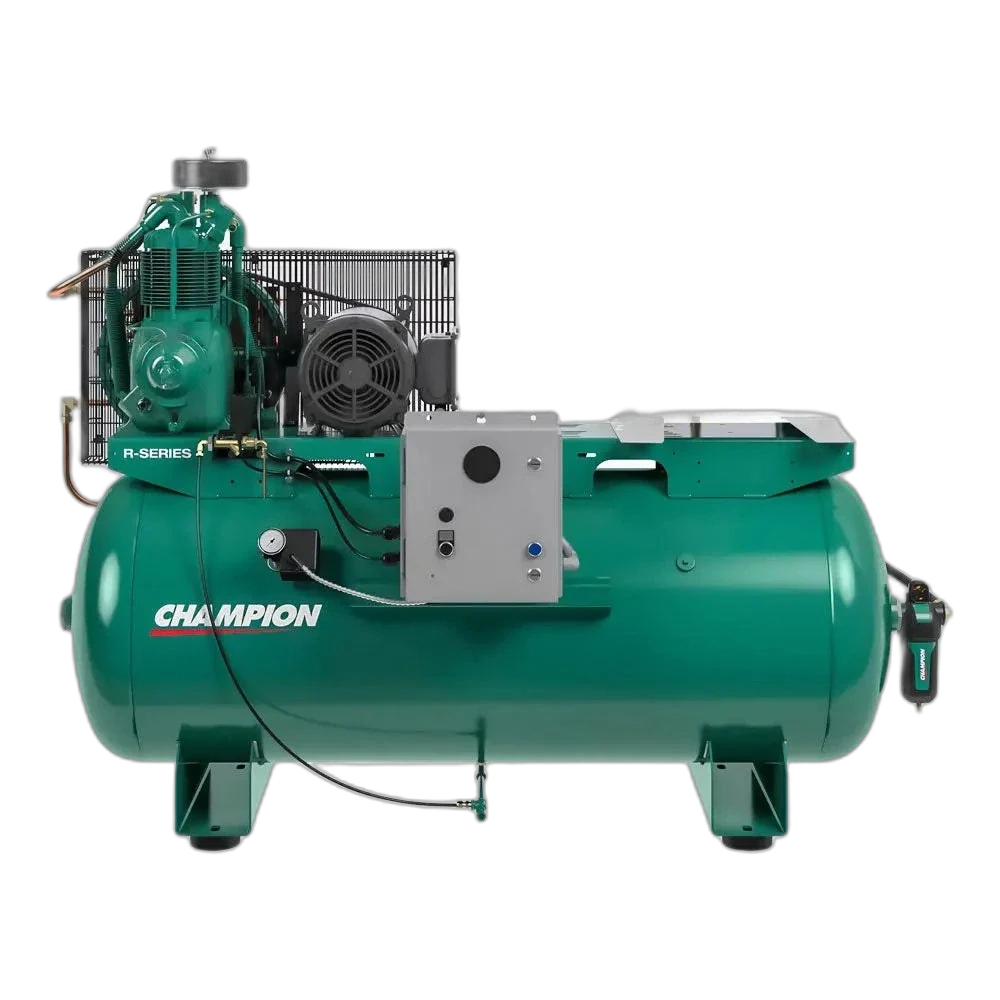

Champion HR7F-12 – 7.5 HP 120-Gallon 2-Stage Air Compressor

Champion HR7F-12 is a 7.5 HP two-stage splash-lubricated reciprocating air compressor in the Champion HR series, delivering 22.3 SCFM at 175 PSI on a 120-gallon horizontal receiver, wired for 120V single-phase. Maximum operating pressure is 175 PSI. The HR7F-12 weighs 1,305 lb in a simplex configuration. MPN HR7F-12. Retail pricing is approximately $4,625. The splash-lubricated cast-iron pump is built for general shop and light-industrial service. Gaps: no OEM Champion HR datasheet URL confirmed; no dB rating; ISO 8573-1 class not confirmed.

7.50

CFM

22.3 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

2.97CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$207$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM22.3 @ 175 PSI

CFM / HP2.97

Cut-in / out—

Tank fill—

Est. draw6.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,363

Maintenance · yearlyEst. $188

Savings with Compressor Controller · yearlyEst. $544–$993

ELECTRICAL & FORM

Serviceelectric

Voltage120

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1305 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 181 · 7.5 HP

Sizing & pricevs. 181 in class

SCFM @ 7.5 HP22.3cfm
20median 2457
-7.1% vs. median
Average price$4,625
$1,698median $5,082$19k
-9% vs. median

Efficiency vs. peersvs. 181 in class

CFM per HP2.97cfm/hp
2.67median 3.27.65
-7.1% vs. median
Price per CFM$241$/scfm
$73median $208$632
+15.4% vs. median
