What horsepower is the Champion HR2D-12 air compressor?

The Champion HR2D-12 is rated at 2 HP.

How much air does the Champion HR2D-12 produce?

The Champion HR2D-12 delivers 8.2 SCFM at 175 PSI.

What size tank does the Champion HR2D-12 have?

The Champion HR2D-12 has a 120-gallon horizontal tank.

Is the Champion HR2D-12 single-stage or two-stage?

The Champion HR2D-12 is a two-stage compressor.

What voltage does the Champion HR2D-12 require?

The Champion HR2D-12 runs on 230/1.

What is the Champion HR2D-12 best for?

The Champion HR2D-12 is best suited for Champion HR2D-12 reciprocating-industrial air compressor for industrial use.

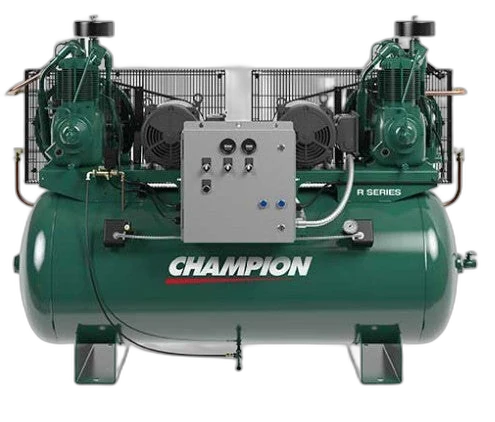

Champion HR2D-12

Champion HR2D-12 is a 2 HP two-stage oil-splash-lubricated duplex reciprocating piston compressor delivering 8.2 SCFM at 175 PSI (two 2 HP pumps at 4.1 SCFM each) on a 120-gallon horizontal tank, wired for 230V single-phase with 100% duty cycle. At 635 lbs it is a robust stationary industrial unit providing duplex redundancy at modest horsepower. Suited for facilities needing reliable 175 PSI output with backup pump capability — body shops, small manufacturing, and tool rooms. Priced at approximately $8,164. Gaps: OEM datasheet URL not confirmed.

CFM

8.2 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

4.10CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$1,101$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM8.2 @ 175 PSI

CFM / HP4.10

Cut-in / out—

Tank fill—

Est. draw1.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $630

Maintenance · yearlyEst. $80

Savings with Compressor Controller · yearlyEst. $145–$265

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight940 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 28 · 2 HP

Sizing & pricevs. 28 in class

SCFM @ 2 HP8.2cfm
3median 7.817
+5.8% vs. median
Average price$9,029
$299median $2,543$9k
+255.1% vs. median

Efficiency vs. peersvs. 28 in class

CFM per HP4.1cfm/hp
1.65median 48.65
+2.5% vs. median
Price per CFM$1,101$/scfm
$17median $267$1,101
+311% vs. median
