What horsepower is the Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) air compressor?

The Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) is rated at 40 HP.

How much air does the Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) produce?

The Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) delivers 155.6 SCFM at 175 PSI.

What size tank does the Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) have?

The Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) has a 240-gallon tank.

Is the Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) single-stage or two-stage?

The Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) is a two-stage compressor.

What voltage does the Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) require?

The Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) runs on 230/460.

What is the Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) best for?

The Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) is best suited for Large industrial paint, fleet maintenance, manufacturing.

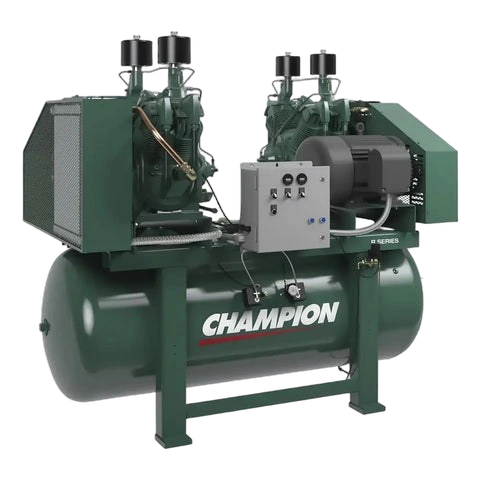

Champion HR20D-24 – 40 HP 240-Gal 2-Stage Air Compressor

Champion HR20D-24 R-Series Duplex (20 HP x 2, 240 gal) is a 40.00 HP 155.60 CFM at 175 PSI 2-stage reciprocating compressor with a 240.0-gallon receiver tank, operating at 230/460. Shipping weight is 2845 lb. This unit belongs to the Champion HR series. Suitable for auto shop, body shop, or light manufacturing.

CFM

155.6 @ 175 PSI

Duty

— continuous

Tank size

240 gal

Air output per horsepowerAirflow per motor HP

3.89CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$191$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinderduplex two-stage cast iron (2 pumps)

Pump RPM655 rpm

Lubricationsplash

OilChampLub

Sump—

Pump life40,000 hrs

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM155.6 @ 175 PSI

CFM / HP3.89

Cut-in / out—

Tank fill—

Est. draw35.1 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $12,604

Maintenance · yearlyEst. $1,000

Savings with Compressor Controller · yearlyEst. $2,899–$5,294

ELECTRICAL & FORM

Service—

Voltage230/460

Amps—

Motor—

Motor RPM1750 rpm

Controlduplex control panel

Startermagnetic with alternator

Weight2845 lb

Form— · 240 gal · 225 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1 in NPT

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp40–104 °F

Dimensions—

Ship weight2845 lb

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 3 · 40 HP

Sizing & pricevs. 3 in class

SCFM @ 40 HP155.6cfm
155median 170.3185
-8.6% vs. median
Average price$29,686
$27,569median $28,205$29k
+5.2% vs. median

Efficiency vs. peersvs. 3 in class

CFM per HP3.89cfm/hp
3.89median 4.634.63
-15.9% vs. median
Price per CFM$185$/scfm
$149median $185$185
-0% vs. median

Where this is sold

Compressed Air Advisors
Verified 4 months ago
$29,686
Lowest

Find an installer / dealer near youAuthorized Champion dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

Compressed Air Advisors
