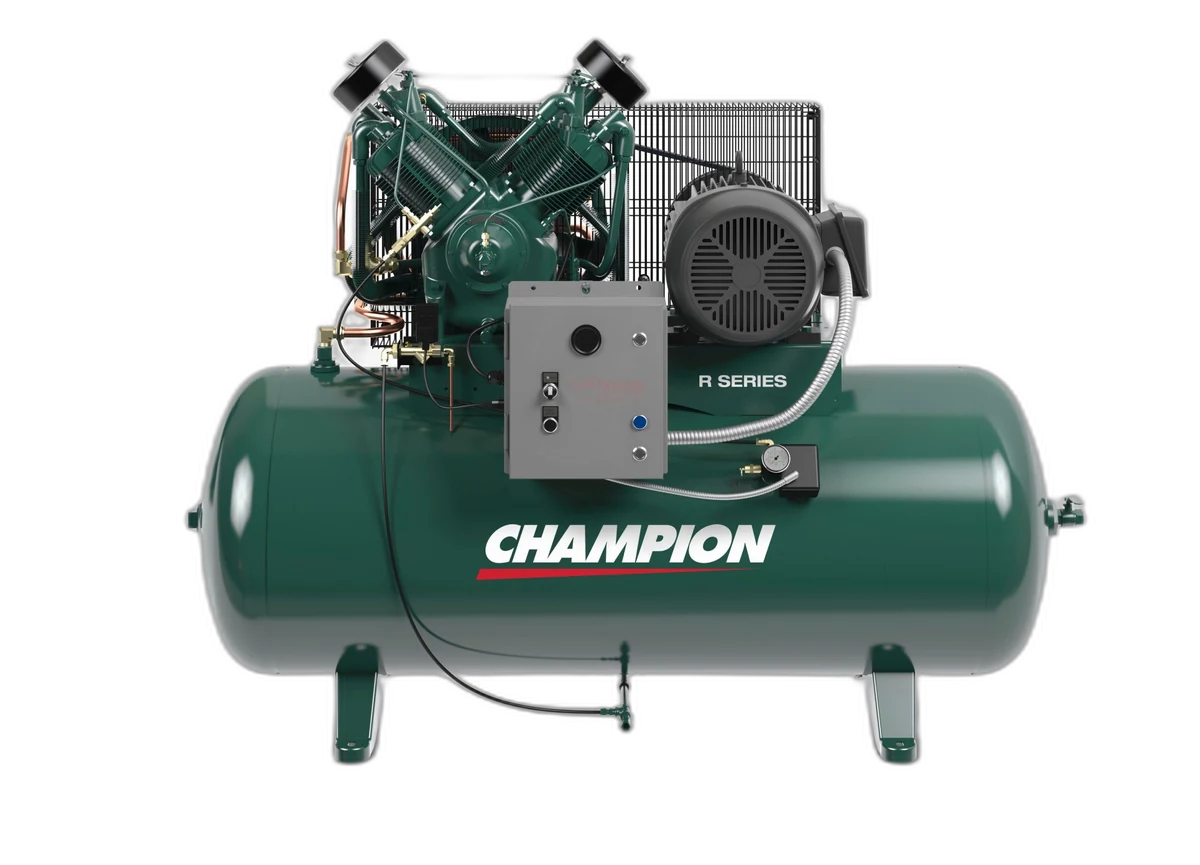

Champion HR15F-24 is a 15 HP two-stage reciprocating industrial air compressor delivering 51.5 SCFM at 175 PSI on a 240-gallon horizontal tank, wired for 230V single-phase power. The unit weighs 1,755 lbs and is rated for 100% duty cycle continuous operation. The F suffix indicates a variant configuration from the standard HR15-24. The HR series uses splash-lubricated cast-iron piston construction in a simplex arrangement, designed for production cells, fabrication shops, automotive service, and industrial maintenance. Maximum operating pressure is 175 PSI. Key gaps: specific F-variant differences from standard model, noise level (dB), and footprint dimensions not confirmed in available sources. The HR15F-24 is available through Champion-authorized distributors.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 83 · 15 HP
- SCFM @ 15 HP48.7cfm17median 51111-4.5% vs. median
- Average price$9,020$4,621median $9,585$25k-5.9% vs. median
- CFM per HP3.25cfm/hp1.15median 3.47.44-4.5% vs. median
- Price per CFM$185$/scfm$96median $188$443-1.8% vs. median
