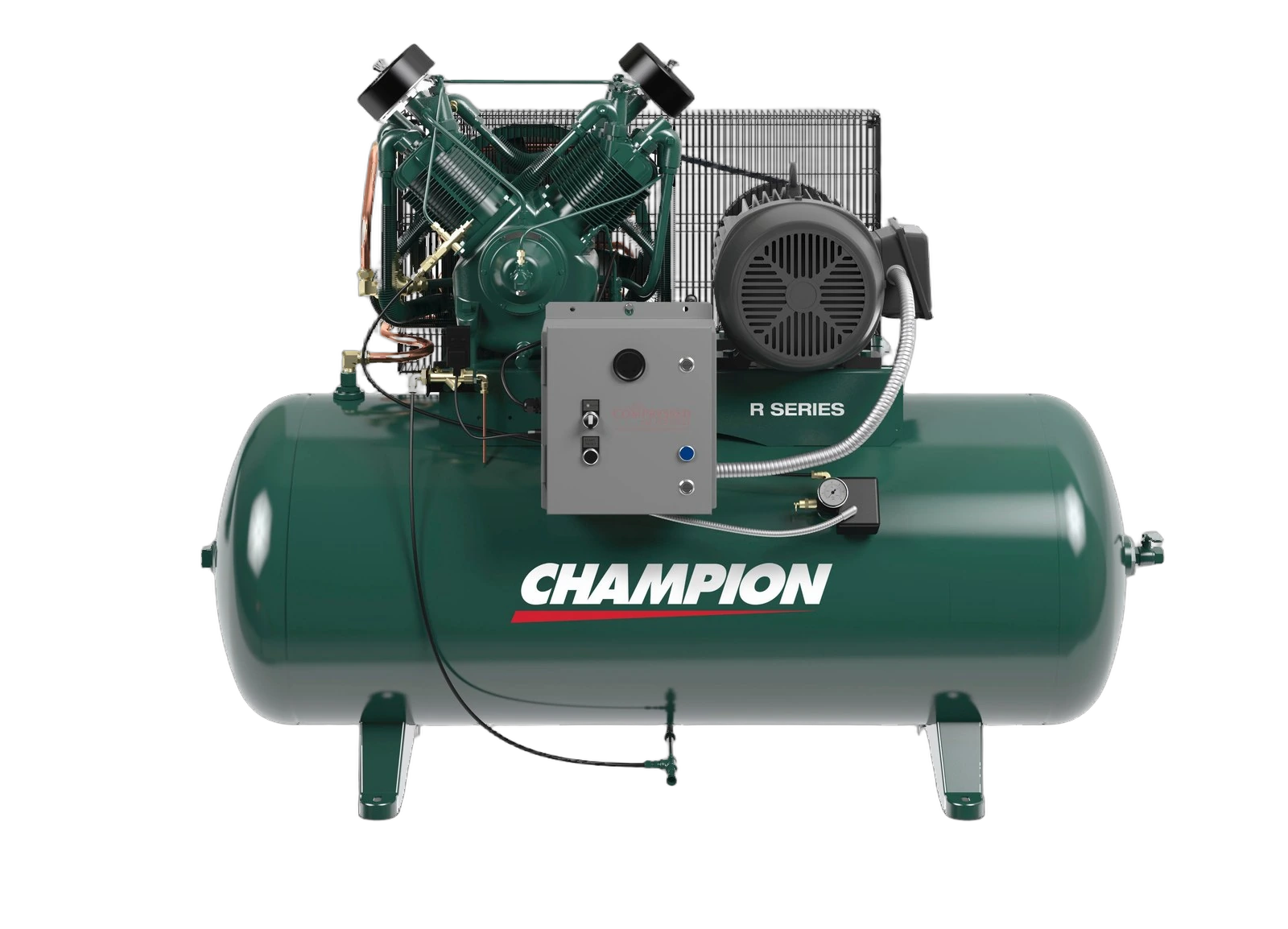

Champion HR10-8-208V/3PH is a 10 HP two-stage reciprocating industrial air compressor delivering 34.8 SCFM at 175 PSI on an 80-gallon horizontal tank, wired for 208V three-phase power. The 8-gallon-per-HP tank sizing and 3PH suffix indicate this is a compact-tank three-phase variant designed for facilities with 208V three-phase service where floor space or installation budget favors a smaller receiver. The HR series uses splash-lubricated cast-iron piston construction in a simplex configuration, suited for maintenance operations, fabrication support, and shop air. Maximum operating pressure is 175 PSI. Key gaps: unit weight (lbs), duty cycle, noise level (dB), and footprint dimensions not confirmed in available sources. Available through Champion-authorized distributors.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 127 · 10 HP
- SCFM @ 10 HP33.8cfm17median 34.279-1.2% vs. median
- Average price$6,702$3,400median $7,494$27k-10.6% vs. median
- CFM per HP3.38cfm/hp1.72median 3.427.96-1.2% vs. median
- Price per CFM$198$/scfm$99median $210$517-5.9% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
