What horsepower is the Champion HR10-24 air compressor?

The Champion HR10-24 is rated at 10 HP.

How much air does the Champion HR10-24 produce?

The Champion HR10-24 delivers 33.8 SCFM at 175 PSI.

What size tank does the Champion HR10-24 have?

The Champion HR10-24 has a 240-gallon horizontal tank.

Is the Champion HR10-24 single-stage or two-stage?

The Champion HR10-24 is a two-stage compressor.

What voltage does the Champion HR10-24 require?

The Champion HR10-24 runs on 208/3/60.

What is the Champion HR10-24 best for?

The Champion HR10-24 is best suited for industrial/commercial shop air.

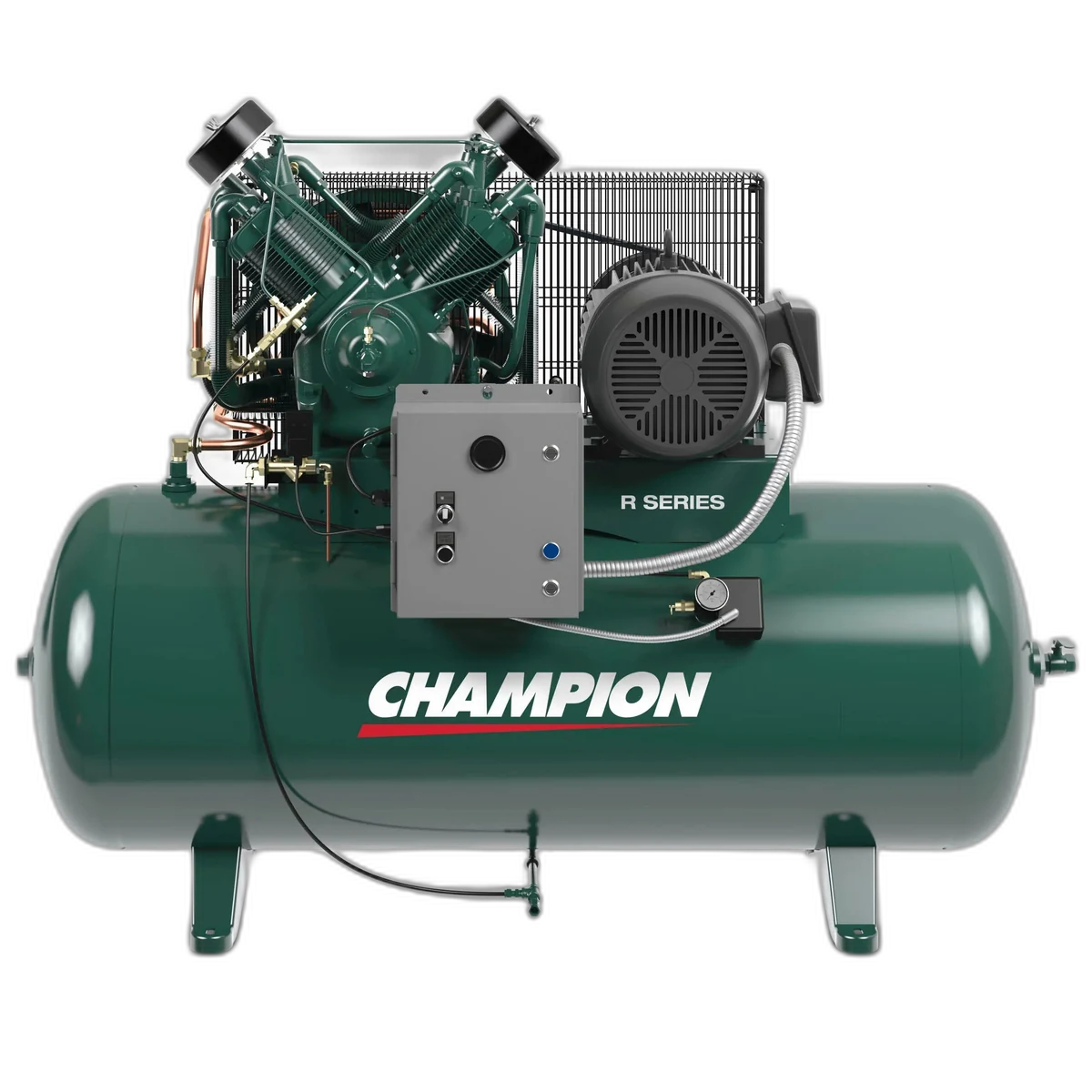

Champion HR10-24 – 10 HP 240-Gal 2-Stage Air Compressor

Champion HR10-24 is a 10 HP two-stage oil-lubricated (splash) reciprocating air compressor delivering 33.8 SCFM at 175 PSI on a 240-gallon horizontal tank, driven by a Champion R-30 cast-iron pump and wired for 208V three-phase, weighing 1,249 lbs. The large 240-gallon receiver extends run time between cycles for facilities with sustained air demand. Simplex configuration; available in 208/230/460 V three-phase.

CFM

33.8 @ 175 PSI

Duty

— continuous

Tank size

240 gal

Air output per horsepowerAirflow per motor HP

3.38CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$231$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM33.8 @ 175 PSI

CFM / HP3.38

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage208/3/60

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1249 lb

FormHorizontal · 240 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 127 · 10 HP

Sizing & pricevs. 127 in class

SCFM @ 10 HP33.8cfm
17median 34.279
-1.2% vs. median
Average price$7,800
$3,555median $7,494$27k
+4.1% vs. median

Efficiency vs. peersvs. 127 in class

CFM per HP3.38cfm/hp
1.72median 3.427.96
-1.2% vs. median
Price per CFM$236$/scfm
$103median $210$517
+11.7% vs. median
