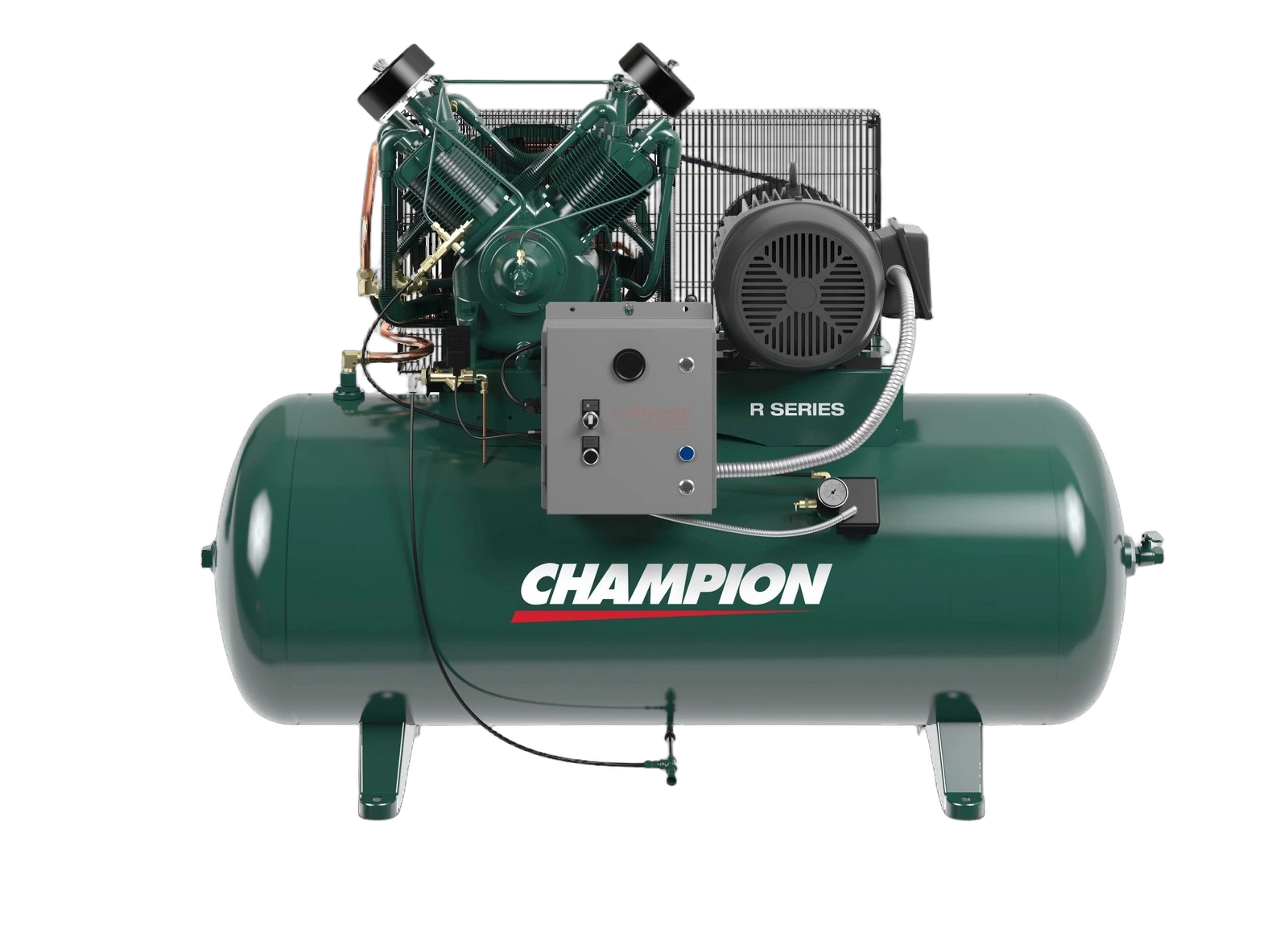

Champion HR10-24-208V/3PH is a 10 HP two-stage reciprocating industrial air compressor delivering 34.8 SCFM at 175 PSI on a 240-gallon horizontal tank, wired for 208V three-phase power. The unit weighs 1,249 lbs. The 208V/3PH suffix specifies the three-phase electrical variant, suited for industrial facilities with 208V three-phase electrical service. The HR series uses splash-lubricated cast-iron piston construction in a simplex configuration, designed for fabrication shops, maintenance operations, and industrial air supply. Maximum operating pressure is 175 PSI. Key gaps: duty cycle percentage, noise level (dB), and footprint dimensions not confirmed. The HR10-24-208V/3PH is available through Champion-authorized air compressor distributors.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 127 · 10 HP
- SCFM @ 10 HP33.8cfm17median 34.279-1.2% vs. median
- Average price$7,949$3,555median $7,494$27k+6.1% vs. median
- CFM per HP3.38cfm/hp1.72median 3.427.96-1.2% vs. median
- Price per CFM$231$/scfm$103median $210$517+9.5% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
