What horsepower is the Champion HR10-12-208V/3PH air compressor?

The Champion HR10-12-208V/3PH is rated at 10 HP.

How much air does the Champion HR10-12-208V/3PH produce?

The Champion HR10-12-208V/3PH delivers 33.8 SCFM at 175 PSI.

What size tank does the Champion HR10-12-208V/3PH have?

The Champion HR10-12-208V/3PH has a 120-gallon horizontal tank.

Is the Champion HR10-12-208V/3PH single-stage or two-stage?

The Champion HR10-12-208V/3PH is a two-stage compressor.

What voltage does the Champion HR10-12-208V/3PH require?

The Champion HR10-12-208V/3PH runs on 208/3.

What is the Champion HR10-12-208V/3PH best for?

The Champion HR10-12-208V/3PH is best suited for Continuous-duty industrial compressed air for production shops.

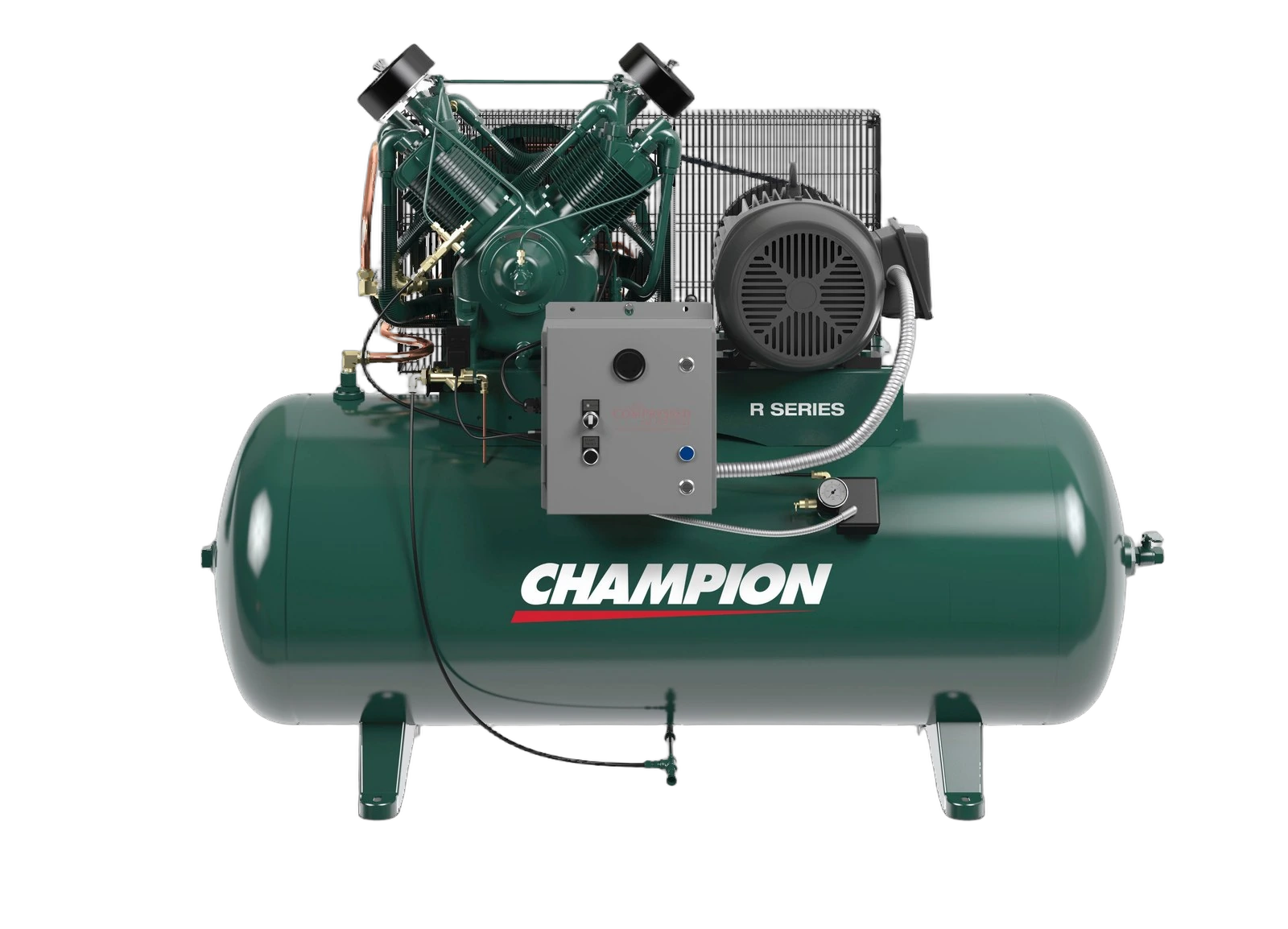

Champion HR10-12-208V/3PH – 10 HP 120-Gal Air Compressor

Champion HR10-12 is a 10 HP two-stage splash-lubricated reciprocating air compressor delivering 33.8 CFM at 175 PSI on a 120-gallon horizontal ASME tank. Its R-30D pump runs at 718 RPM. Available in 208V, 230V, or 460V three-phase; footprint 71 x 32 x 55 in; approximate weight 895 lb.

CFM

33.8 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.38CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$207$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM718 rpm

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM33.8 @ 175 PSI

CFM / HP3.38

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage208/3

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight895 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 127 · 10 HP

Sizing & pricevs. 127 in class

SCFM @ 10 HP33.8cfm
17median 34.279
-1.2% vs. median
Average price$7,189
$3,555median $7,494$27k
-4.1% vs. median

Efficiency vs. peersvs. 127 in class

CFM per HP3.38cfm/hp
1.72median 3.427.96
-1.2% vs. median
Price per CFM$207$/scfm
$103median $210$517
-1.9% vs. median
