What horsepower is the Champion HPL7D-24-175 air compressor?

The Champion HPL7D-24-175 is rated at 15 HP.

How much air does the Champion HPL7D-24-175 produce?

The Champion HPL7D-24-175 delivers 51.5 SCFM at 175 PSI.

What size tank does the Champion HPL7D-24-175 have?

The Champion HPL7D-24-175 has a 240-gallon horizontal tank.

Is the Champion HPL7D-24-175 single-stage or two-stage?

The Champion HPL7D-24-175 is a two-stage compressor.

What voltage does the Champion HPL7D-24-175 require?

The Champion HPL7D-24-175 runs on 208-230/460/3.

What is the Champion HPL7D-24-175 best for?

The Champion HPL7D-24-175 is best suited for High-duty industrial compressed air with duplex redundancy.

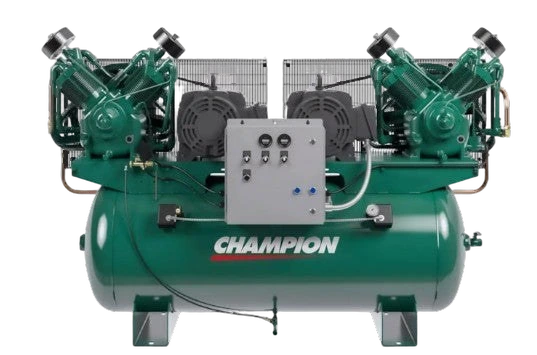

Champion HPL7D-24-175 – 15 HP 240-Gal 2-Stage Air Compressor

Champion HPL7D-24-175 is a 15 HP (two 7.5 HP pumps) two-stage pressure-lubricated duplex reciprocating air compressor delivering 51.6 CFM at 175 PSI on a 240-gallon horizontal ASME tank. Dual PL-30 pumps run at 575 RPM and are rated to 250 PSI maximum. Available in 208-230V or 460V three-phase; approximate weight 1,850 lb.

CFM

51.5 @ 175 PSI

Duty

— continuous

Tank size

240 gal

Air output per horsepowerAirflow per motor HP

3.43CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$389$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM575 rpm

Lubricationpressure

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM51.5 @ 175 PSI

CFM / HP3.43

Cut-in / out—

Tank fill—

Est. draw13.2 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $4,727

Maintenance · yearlyEst. $375

Savings with Compressor Controller · yearlyEst. $1,087–$1,985

ELECTRICAL & FORM

Serviceelectric

Voltage208-230/460/3

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1850 lb

FormHorizontal · 240 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 83 · 15 HP

Sizing & pricevs. 83 in class

SCFM @ 15 HP51.5cfm
17median 51111
+1% vs. median
Average price$20,045
$4,621median $9,585$25k
+109.1% vs. median

Efficiency vs. peersvs. 83 in class

CFM per HP3.43cfm/hp
1.15median 3.47.44
+1% vs. median
Price per CFM$389$/scfm
$96median $188$443
+107% vs. median
