What horsepower is the Champion HPL10-12 air compressor?

The Champion HPL10-12 is rated at 10 HP.

How much air does the Champion HPL10-12 produce?

The Champion HPL10-12 delivers 34.8 SCFM at 175 PSI.

What size tank does the Champion HPL10-12 have?

The Champion HPL10-12 has a 120-gallon horizontal tank.

Is the Champion HPL10-12 single-stage or two-stage?

The Champion HPL10-12 is a two-stage compressor.

What voltage does the Champion HPL10-12 require?

The Champion HPL10-12 runs on 230/1.

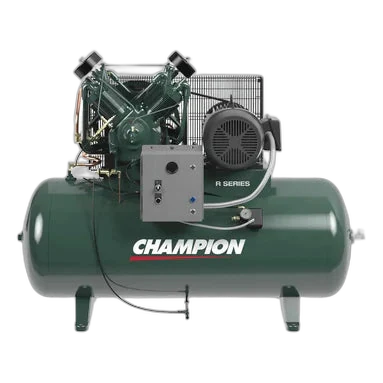

Champion HPL10-12 – 10 HP 120-Gal 2-Stage Air Compressor

Champion HPL10-12 is a 10 HP two-stage pressure-lubricated reciprocating piston air compressor delivering 34.8 SCFM at 175 PSI on a 120-gallon horizontal tank, wired for 230V single-phase. Pressure lubrication provides more reliable oil distribution across the pump, suited to higher-utilization shop environments. ASME-certified tank; Made in USA; motor at 1,750 RPM; 1-inch NPT outlet. At 890 lbs this is a permanent installation. Priced from USD 9250 (verified May 2026 across 3 retailers). Known gaps: duty cycle percentage and noise level not confirmed from primary sources.

CFM

34.8 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.48CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$266$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationpressure

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM34.8 @ 175 PSI

CFM / HP3.48

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM1750 rpm

Control—

Starter—

Weight890 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet1 in NPT

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp40–104 °F

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 127 · 10 HP

Sizing & pricevs. 127 in class

SCFM @ 10 HP34.8cfm
17median 34.279
+1.8% vs. median
Average price$9,510
$3,555median $7,494$27k
+26.9% vs. median

Efficiency vs. peersvs. 127 in class

CFM per HP3.48cfm/hp
1.72median 3.427.96
+1.8% vs. median
Price per CFM$277$/scfm
$103median $210$517
+31.4% vs. median
