Champion · HGR · TWO-STAGE PISTON

HGR7-6H

13 HP · Horizontal · gas · splash · 2-stage
AVERAGE PRICE
$4,698
2 retailers · across retailers

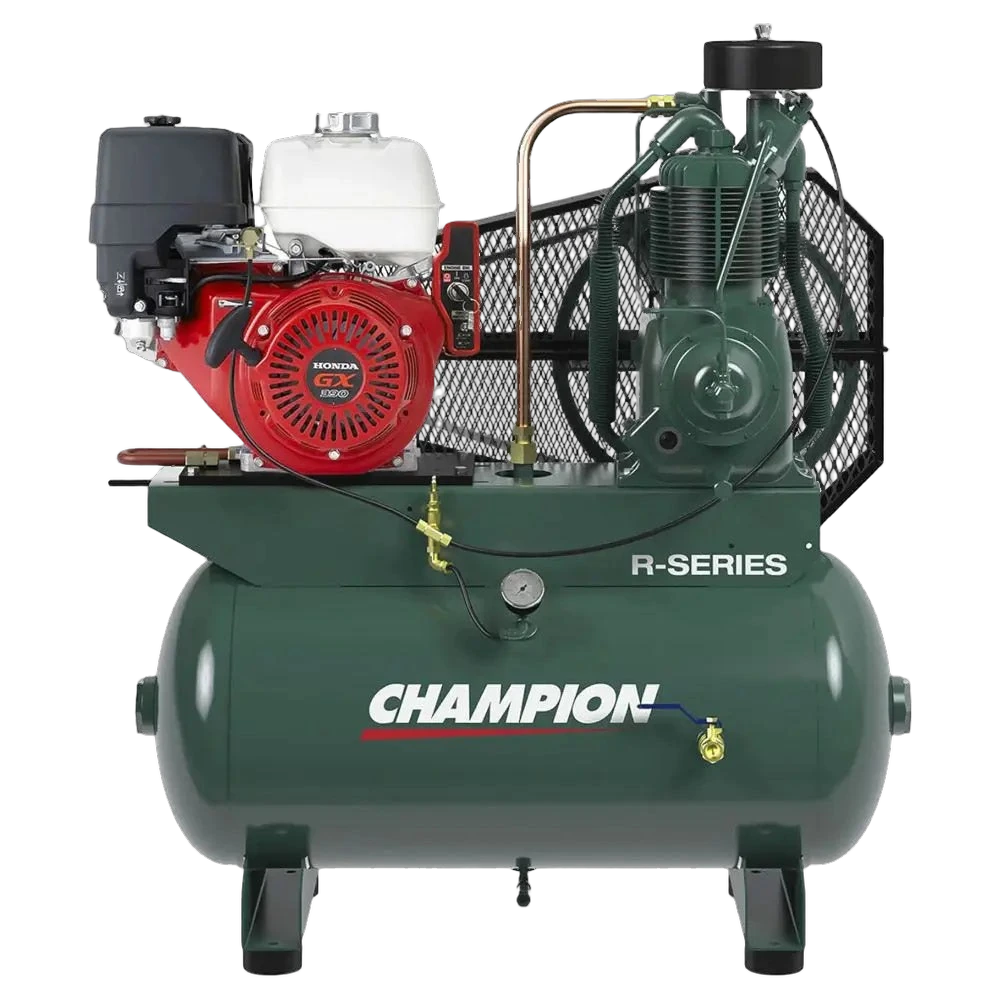

Champion HGR7-6H

The Champion HGR7-6H is a simplex 2-stage two-stage reciprocating piston delivering 23.2 SCFM @ 175 PSI on a 60-gallon horizontal tank at gas. Lubrication: splash-lubricated. Motor: 13.0 HP. Shipping weight: 600 lb. Gas-engine drive (HGR series) eliminates dependence on grid power, making this unit well-suited for remote jobsites, utility contractors, and portable field applications where three-phase electric service is unavailable. Two-stage cast-iron piston construction provides heavy-duty intermittent-use capability.

HP
13
CFM
23.2 @ 23 PSI
Duty
— continuous
Tank size
60 gal
Air output per horsepowerAirflow per motor HP
1.78CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 2-stage piston
67%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$202$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages2-stage recip
Cylinder—
Pump RPM—
Lubricationsplash
Oil—
Sump—
Pump life—
Pump material—
Head material—
Intercooler—
PERFORMANCE
Catalog CFM23.2 @ 23 PSI
CFM / HP1.78
Cut-in / out—
Tank fill—
Est. draw11.4 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $4,096
Maintenance · yearlyEst. $325
Savings with Compressor Controller · yearlyEst. $942–$1,721
ELECTRICAL & FORM
Servicegas
Voltage—
Amps—
Motor—
Motor RPM—
Control—
Starterelectric_key
Weight600 lb
FormHorizontal · 60 gal
BUILD & ENVIRONMENT
Air outlet—
Drain—
Drain outlet—
ASME tank—
Made in USA—
Noise—
Op. temp—
Dimensions—
Ship weight—
Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1655 units
Peer class
18 · 13 HP
Sizing & pricevs. 18 in class
  • SCFM @ 13 HP23.2cfm
    18median 23.232
    0% vs. median
  • Average price$4,698
    $2,949median $4,199$6k
    +11.9% vs. median
Efficiency vs. peersvs. 18 in class
  • CFM per HP1.78cfm/hp
    1.38median 1.782.46
    0% vs. median
  • Price per CFM$203$/scfm
    $124median $199$259
    +1.7% vs. median
Where this is sold2 verified retailers · USD
Find an installer / dealer near youAuthorized Champion dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$4,694$4,696$4,699$4,701avg $4,698today-10d-20d-30d
