What horsepower is the Champion D6-AS-230/3 air compressor?

The Champion D6-AS-230/3 is rated at 5 HP.

How much air does the Champion D6-AS-230/3 produce?

The Champion D6-AS-230/3 delivers 18 SCFM at 145 PSI.

What size tank does the Champion D6-AS-230/3 have?

The Champion D6-AS-230/3 has a 80-gallon tank.

Is the Champion D6-AS-230/3 single-stage or two-stage?

The Champion D6-AS-230/3 is a single-stage compressor.

What voltage does the Champion D6-AS-230/3 require?

The Champion D6-AS-230/3 runs on 230/3ph.

Is the Champion D6-AS-230/3 oil-free or oil-lubricated?

The Champion D6-AS-230/3 is oil-flooded.

What is the duty cycle of the Champion D6-AS-230/3?

The Champion D6-AS-230/3 has a 100% duty cycle.

What is the Champion D6-AS-230/3 best for?

The Champion D6-AS-230/3 is best suited for Small shop and light industrial continuous compressed air with built-in air treatment (dryer).

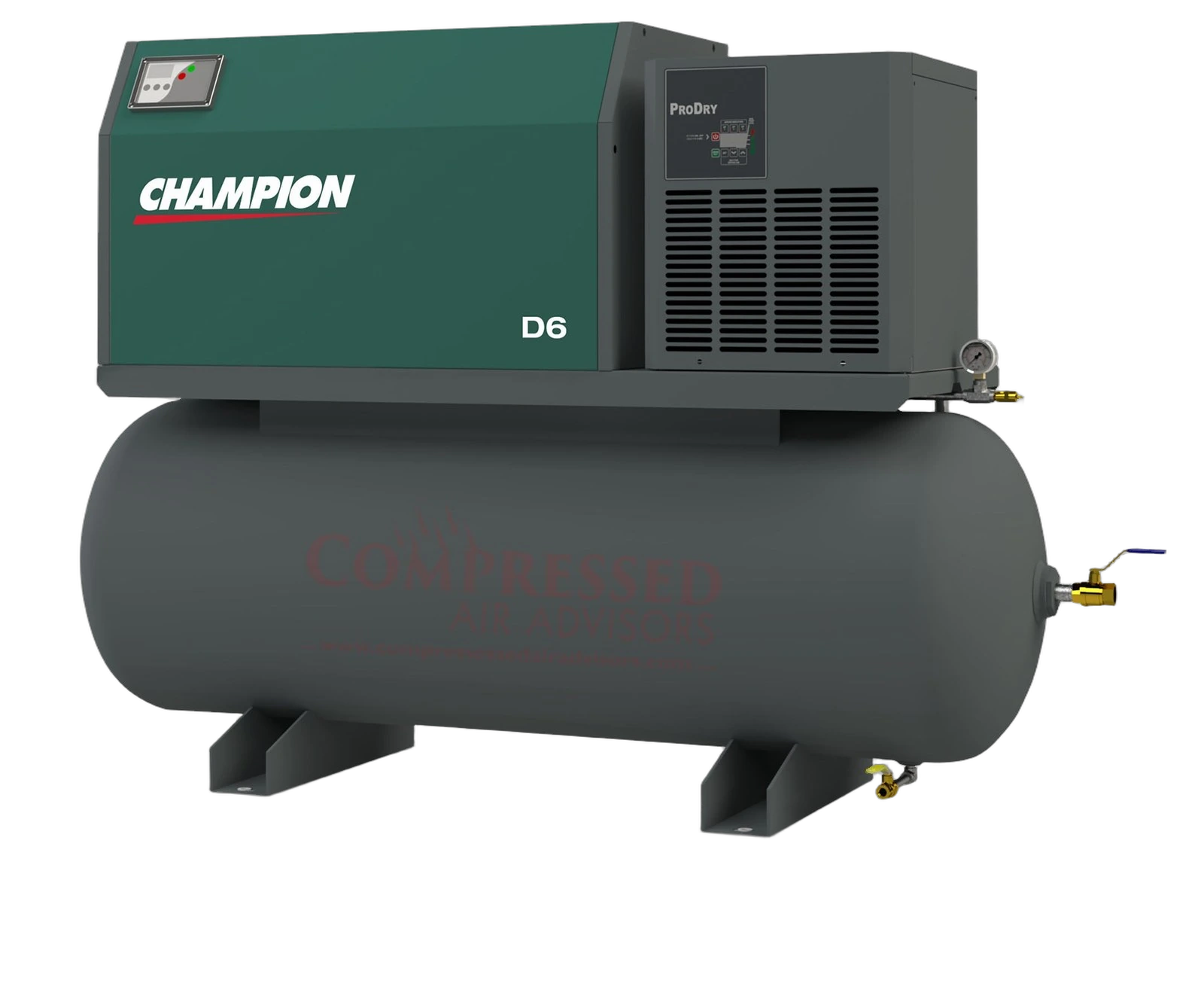

Champion D6-AS-230/3 – 5 HP 80-Gallon Screw Air Compressor

The Champion D6-AS-230/3 is a 5 HP belt-drive oil-lubricated rotary screw air compressor delivering 18 SCFM at 145 PSI on an 80-gallon tank, wired for 230V/3-phase. The D6 Air System includes an integrated refrigerated dryer and 1-micron pre-filter for clean dry air, noise level 63 dBA, weight 665 lbs.

CFM

18 @ 145 PSI

Duty

100% continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

3.60CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$583$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

OilRotorLub 4000

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM18 @ 145 PSI

CFM / HP3.60

Cut-in / out—

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

ELECTRICAL & FORM

Serviceelectric

Voltage230/3ph

Amps—

Motor—

Motor RPM—

ControlCSC50

Starter—

Weight665 lb

Form— · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise63 dBA

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 42 · 5 HP

Sizing & pricevs. 42 in class

SCFM @ 5 HP18cfm
16median 19.922
-9.5% vs. median
Average price$10,492
$5,810median $8,607$11k
+21.9% vs. median

Efficiency vs. peersvs. 42 in class

CFM per HP3.6cfm/hp
3.2median 3.984.4
-9.5% vs. median
Price per CFM$583$/scfm
$267median $423$709
+37.5% vs. median
