What horsepower is the Champion BR30 air compressor?

The Champion BR30 is rated at 30 HP.

How much air does the Champion BR30 produce?

The Champion BR30 delivers 101.8 SCFM at 175 PSI.

What size tank does the Champion BR30 have?

The Champion BR30 has a 0-gallon horizontal tank.

Is the Champion BR30 single-stage or two-stage?

The Champion BR30 is a two-stage compressor.

What is the Champion BR30 best for?

The Champion BR30 is best suited for industrial base-mount air supply.

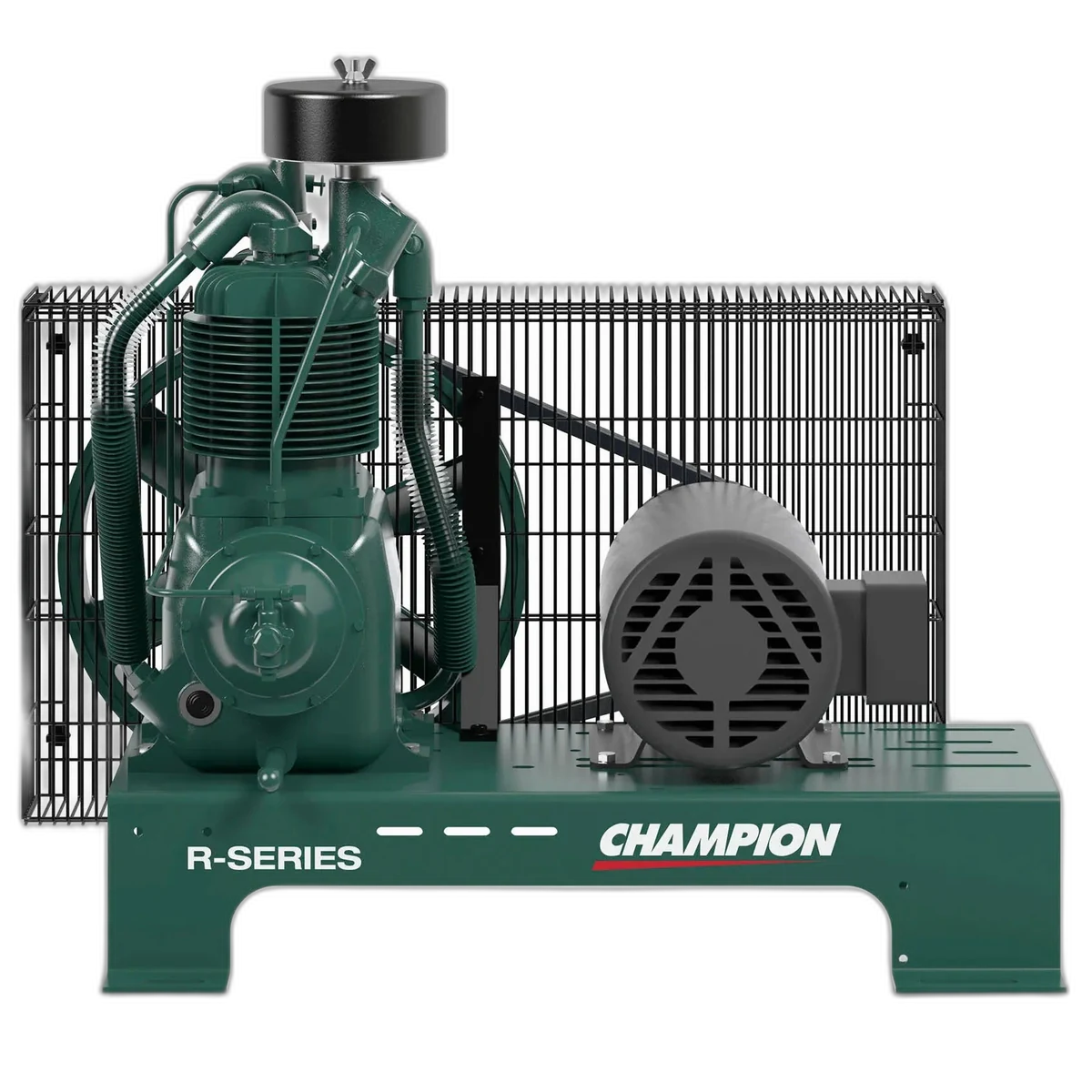

Champion BR30

The Champion BR30 is a 30 HP two-stage reciprocating air compressor delivering 101.8 SCFM @ 175 PSI as a base-mounted (tankless) unit: the Champion ‘BR’ line ships on a baseplate with no integrated receiver, paired to a separate air receiver on site. Built on the cast-iron R-70 two-stage pump, simplex, splash (oil-lubricated), approx 1,060 lb, wired 208 V, 100% duty cycle. Key specs: 30 HP, 101.8 SCFM @ 175 PSI, base-mount (no tank), 208 V, two-stage splash lubrication. Gaps: RPM, full-load amps, and noise level (dB) not confirmed from a primary Champion datasheet.

CFM

101.8 @ 175 PSI

Duty

— continuous

Tank size

— gal

Air output per horsepowerAirflow per motor HP

3.39CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$133$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM101.8 @ 175 PSI

CFM / HP3.39

Cut-in / out—

Tank fill—

Est. draw26.3 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $9,453

Maintenance · yearlyEst. $750

Savings with Compressor Controller · yearlyEst. $2,174–$3,970

ELECTRICAL & FORM

Serviceelectric

Voltage208

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1060 lb

FormHorizontal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 24 · 30 HP

Sizing & pricevs. 24 in class

SCFM @ 30 HP101.8cfm
77median 99.1203
+2.8% vs. median
Average price$13,675
$11,317median $20,778$45k
-34.2% vs. median

Efficiency vs. peersvs. 24 in class

CFM per HP3.39cfm/hp
2.58median 3.376.79
+0.7% vs. median
Price per CFM$133$/scfm
$116median $187$460
-29.4% vs. median
