What horsepower is the Champion BDR5K air compressor?

The Champion BDR5K is rated at 9.1 HP.

How much air does the Champion BDR5K produce?

The Champion BDR5K delivers 20.1 SCFM at 175 PSI.

What size tank does the Champion BDR5K have?

The Champion BDR5K has a 0-gallon horizontal tank.

Is the Champion BDR5K single-stage or two-stage?

The Champion BDR5K is a two-stage compressor.

What is the Champion BDR5K best for?

The Champion BDR5K is best suited for Champion BDR5K reciprocating-industrial air compressor for industrial use.

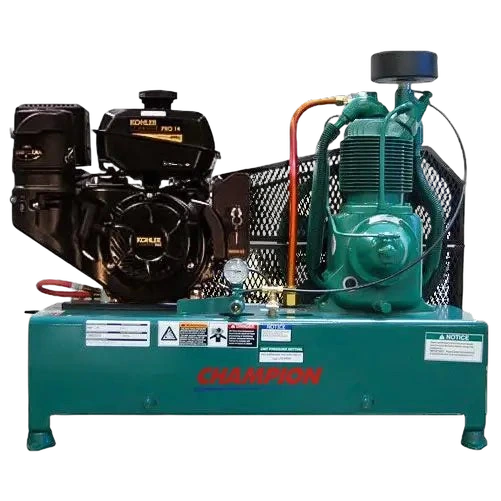

Champion BDR5K

The Champion BDR5K is a 9.10-HP 2-stage reciprocating piston compressor delivering 20.1 SCFM @ 175 PSI. Base-mount configuration with no tank included (tank configuration: base; tank size N/A), wired for 230/1, weighing 440 lb. Built for industrial shop and plant air with cast-iron construction for sustained duty cycles. Key details: splash airend. List price approximately $8,809. OEM datasheet URL not confirmed in available catalog data.

9.10

CFM

20.1 @ 175 PSI

Duty

— continuous

Tank size

— gal

Air output per horsepowerAirflow per motor HP

2.21CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$429$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM20.1 @ 175 PSI

CFM / HP2.21

Cut-in / out—

Tank fill—

Est. draw8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,868

Maintenance · yearlyEst. $228

Savings with Compressor Controller · yearlyEst. $660–$1,204

ELECTRICAL & FORM

Servicediesel

Voltage—

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight440 lb

FormHorizontal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 3 · 9.1 HP

Sizing & pricevs. 3 in class

SCFM @ 9.1 HP20.1cfm
20median 20.121
0% vs. median
Average price$8,649
$8,630median $8,850$9k
-2.3% vs. median

Efficiency vs. peersvs. 3 in class

CFM per HP2.21cfm/hp
2.21median 2.213.21
0% vs. median
Price per CFM$429$/scfm
$429median $440$455
-2.5% vs. median

Where this is sold

Find an installer / dealer near youAuthorized Champion dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

alltiresupply.com

www.penryair.com
