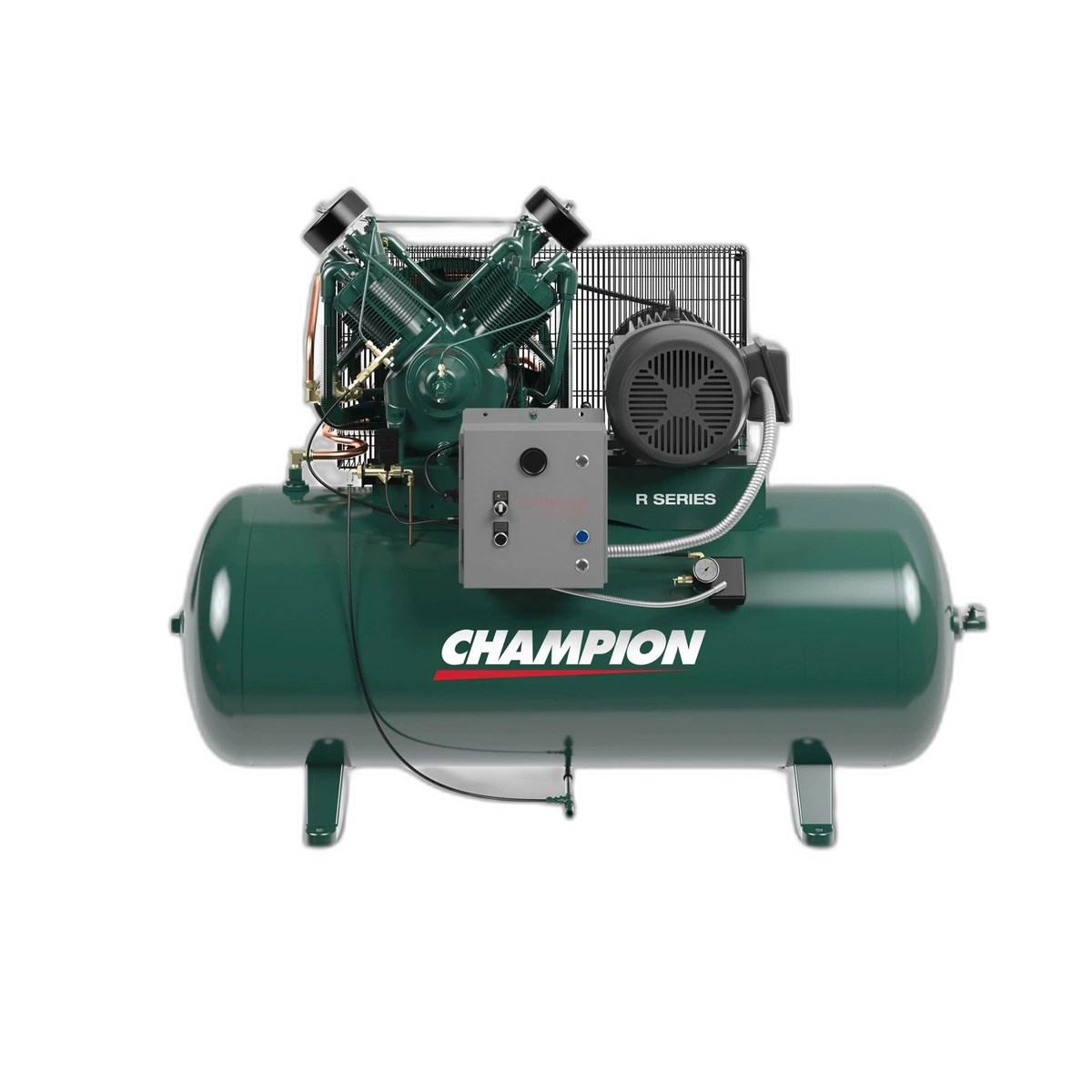

Champion Advantage HR10-12 is a 10 HP two-stage splash-lubricated piston compressor on a 120-gallon horizontal ASME tank, three-phase only (208, 230, or 460V). Output is 33.8 CFM at 175 PSI, 34.7 CFM at 125 PSI, 35.7 CFM at 80 PSI – all delivered by the rugged R-30D cast-iron pump running at just 718 RPM. The Advantage trim ships with an aftercooler, electric auto-drain, low-oil guard, vibration isolators, magnetic starter, and centrifugal unloader for loadless starts. Dimensions 71 by 32 by 55 inches, net weight 895 lbs. The deliberately low pump RPM is Champion’s design philosophy for long pump life and lower noise. Best fit is a busy industrial maintenance shop, a 3-4 bay body shop with three-phase service, a cabinet shop running multiple sanders, or a small fab shop with continuous plasma or HVLP demand. Made in the USA at Champion’s Princeton, Illinois plant. Three-year limited warranty on the unit, with optional 5-year pump warranty when registered.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 127 · 10 HP
- SCFM @ 10 HP33.8cfm17median 34.279-1.2% vs. median
- Average price$7,321$3,400median $7,494$27k-2.3% vs. median
- CFM per HP3.38cfm/hp1.72median 3.427.96-1.2% vs. median
- Price per CFM$219$/scfm$99median $210$517+3.9% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
