What horsepower is the Champion ADVA-S37 air compressor?

The Champion ADVA-S37 is rated at 25 HP.

How much air does the Champion ADVA-S37 produce?

The Champion ADVA-S37 delivers 90.1 SCFM at 175 PSI.

What size tank does the Champion ADVA-S37 have?

The Champion ADVA-S37 has a 120-gallon horizontal tank.

Is the Champion ADVA-S37 single-stage or two-stage?

The Champion ADVA-S37 is a two-stage compressor.

What voltage does the Champion ADVA-S37 require?

The Champion ADVA-S37 runs on 208/3.

What is the Champion ADVA-S37 best for?

The Champion ADVA-S37 is best suited for Champion ADVA-S37 reciprocating-industrial air compressor for industrial use.

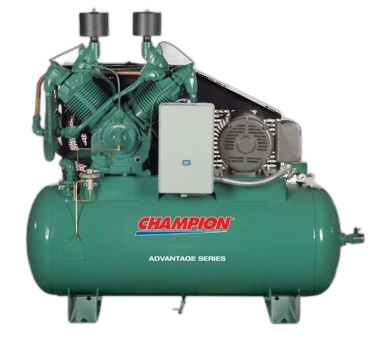

Champion ADVA-S37 – 25 HP 120-Gallon Air Compressor

The Champion ADVA-S37 is a 25 HP two-stage reciprocating horizontal air compressor from the Advantage Series, operating on 208V three-phase power. Rated for 90.1 SCFM at 175 PSI, this heavy-duty simplex unit is equipped with a cast-iron R-70 pump and a 120-gallon horizontal tank. It is built to support large fabrication and industrial operations.

CFM

90.1 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.60CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$165$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylindertwo-stage cast iron

Pump RPM640 rpm

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercoolerair-cooled

PERFORMANCE

Catalog CFM90.1 @ 175 PSI

CFM / HP3.60

Cut-in / out—

Tank fill—

Est. draw21.9 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $7,878

Maintenance · yearlyEst. $625

Savings with Compressor Controller · yearlyEst. $1,812–$3,309

ELECTRICAL & FORM

Serviceelectric

Voltage208/3

Amps—

Motor—

Motor RPM—

Controldual control

Startermagnetic

Weight1450 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 23 · 25 HP

Sizing & pricevs. 23 in class

SCFM @ 25 HP90.1cfm
82median 88192
+2.4% vs. median
Average price$15,128
$8,397median $17,200$50k
-12% vs. median

Efficiency vs. peersvs. 23 in class

CFM per HP3.6cfm/hp
3.3median 3.567.68
+1.2% vs. median
Price per CFM$165$/scfm
$94median $196$474
-16.3% vs. median
