What horsepower is the Champion ADVA-S21 air compressor?

The Champion ADVA-S21 is rated at 10 HP.

How much air does the Champion ADVA-S21 produce?

The Champion ADVA-S21 delivers 33.8 SCFM at 175 PSI.

What size tank does the Champion ADVA-S21 have?

The Champion ADVA-S21 has a 120-gallon vertical tank.

Is the Champion ADVA-S21 single-stage or two-stage?

The Champion ADVA-S21 is a two-stage compressor.

What voltage does the Champion ADVA-S21 require?

The Champion ADVA-S21 runs on 230/1.

What is the Champion ADVA-S21 best for?

The Champion ADVA-S21 is best suited for Turnkey vertical-footprint industrial shop air.

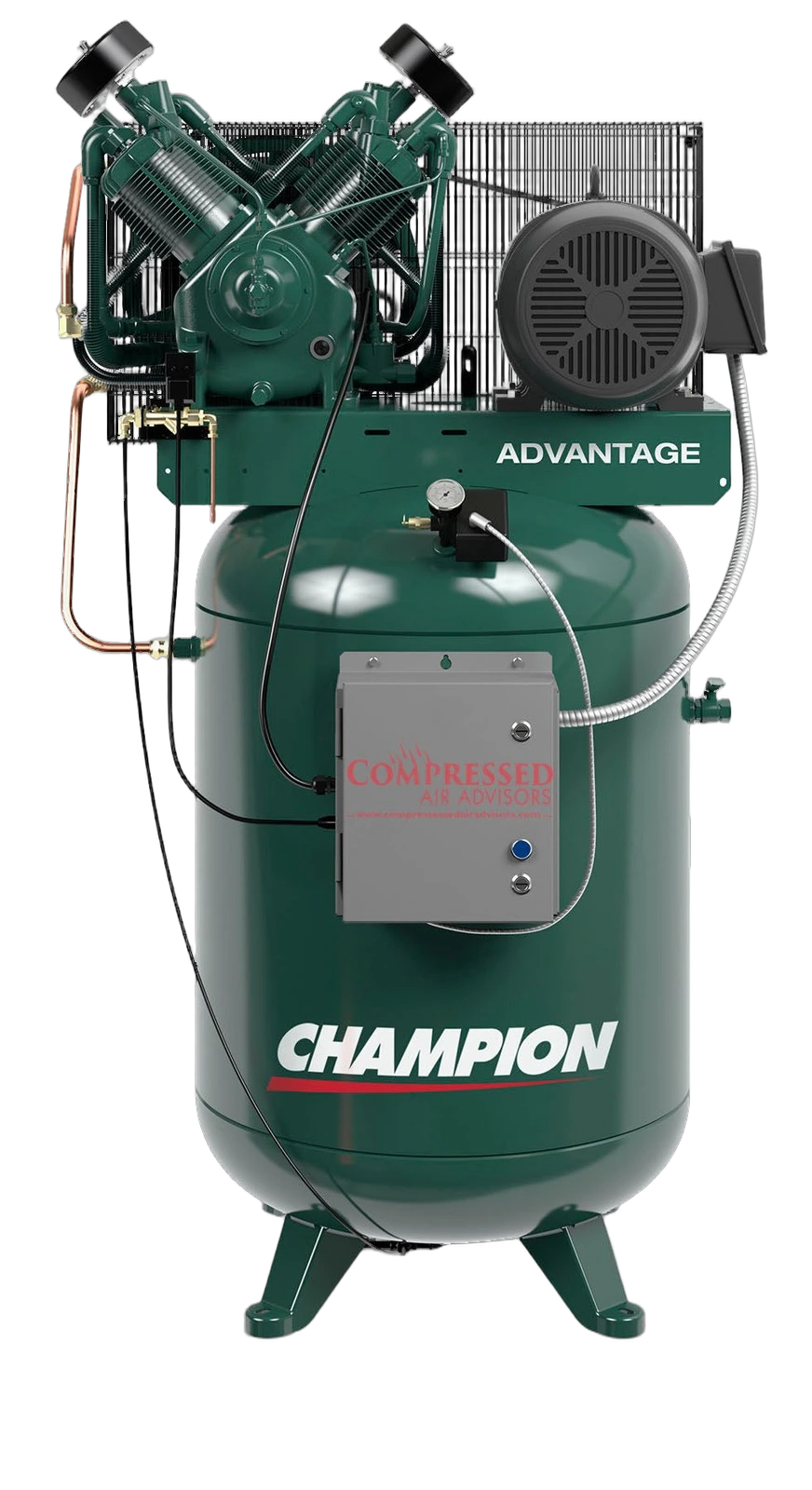

Champion ADVA-S21 – 10 HP 120-Gallon Vertical Compressor

Champion ADVA-S21 is a 10 HP two-stage Advantage-series reciprocating air compressor delivering 33.8 CFM at 175 PSI on a 120-gallon vertical tank. Its R-30 splash-lubricated pump ships fully packaged with magnetic starter, automatic tank drain, vibration isolators, low-oil monitor, and a factory air-cooled aftercooler.

CFM

33.8 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.38CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$227$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM33.8 @ 175 PSI

CFM / HP3.38

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight895 lb

FormVertical · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 128 · 10 HP

Sizing & pricevs. 128 in class

SCFM @ 10 HP33.8cfm
17median 34.279
-1.2% vs. median
Average price$7,682
$3,400median $7,517$27k
+2.2% vs. median

Efficiency vs. peersvs. 128 in class

CFM per HP3.38cfm/hp
1.72median 3.427.96
-1.2% vs. median
Price per CFM$227$/scfm
$99median $212$474
+7% vs. median
