What horsepower is the Atlas Copco SF 8 air compressor?

The Atlas Copco SF 8 is rated at 11 HP.

How much air does the Atlas Copco SF 8 produce?

The Atlas Copco SF 8 delivers 28.4 SCFM at 100 PSI.

What is the maximum pressure of the Atlas Copco SF 8?

The Atlas Copco SF 8 has a maximum operating pressure of 145 PSI.

What size tank does the Atlas Copco SF 8 have?

The Atlas Copco SF 8 has a 0-gallon floor tank.

Is the Atlas Copco SF 8 single-stage or two-stage?

The Atlas Copco SF 8 is a single-stage compressor.

What voltage does the Atlas Copco SF 8 require?

The Atlas Copco SF 8 runs on 230/460.

What is the duty cycle of the Atlas Copco SF 8?

The Atlas Copco SF 8 has a 100% duty cycle.

What is the Atlas Copco SF 8 best for?

The Atlas Copco SF 8 is best suited for Dental clinics with multiple chairs, medical and pharmaceutical labs, electronics assembly, and small commercial installations requiring 25-35 SCFM of ISO 8573-1 Class 0 oil-free air..

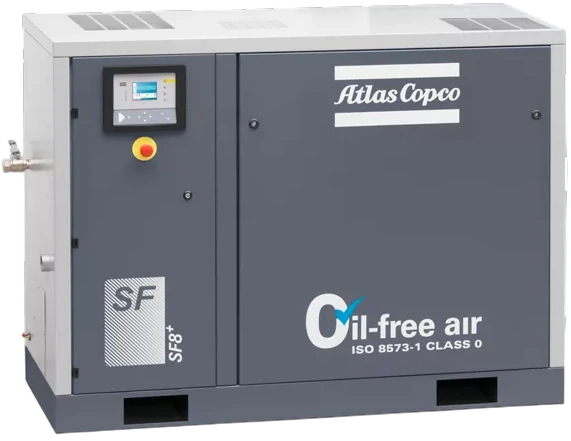

Atlas Copco SF 8

Atlas Copco SF 8 is a 11.00 HP 30.00 CFM at 116 PSI scroll compressor with a 0.0-gallon receiver tank, operating at 230/460. Shipping weight is 705 lb. This unit belongs to the Atlas Copco SF series. Suitable for dental, laboratory, or clean-air applications.

CFM

28.4 @ 100 PSI

Duty

100% continuous

Tank size

— gal

Air output per horsepowerAirflow per motor HP

2.58CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage scroll

70%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$796$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage scroll

Cylinder—

Pump RPM2900 rpm

Lubricationoil-free scroll

OilN/A – oil-free design (no oil contacts air)

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM28.4 @ 100 PSI

CFM / HP2.58

Cut-in / out—

Tank fill—

Est. draw9.7 kW

COST & MAINTENANCE

Electric · yearlyEst. $3,466

Maintenance · yearlyEst. $275

ELECTRICAL & FORM

Service—

Voltage230/460

Amps—

Motor—

Motor RPM1750 rpm

ControlElektronikon Mk5 Touch

StarterDOL

Weight897 lb

FormFloor · 200 PSI tank rating

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise63 dBA

Op. temp40–104 °F

Dimensions65 x 29 x 48 in

Ship weight705 lb

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 1 · 11 HP

Sizing & pricevs. 1 in class

SCFM @ 11 HP28.4cfm
28median 28.429
0% vs. median
Average price$22,599
$22,599median $22,599$23k
0% vs. median

Efficiency vs. peersvs. 1 in class

CFM per HP2.58cfm/hp
2.58median 2.583.58
0% vs. median
Price per CFM$796$/scfm
$795median $795$796
-0% vs. median
