ABAC · Ironman/AB · TWO-STAGE PISTON

2021119422

7.50 HP · electric · oil-lubricated · 2-stage
AVERAGE PRICE
$3,612
1 retailer

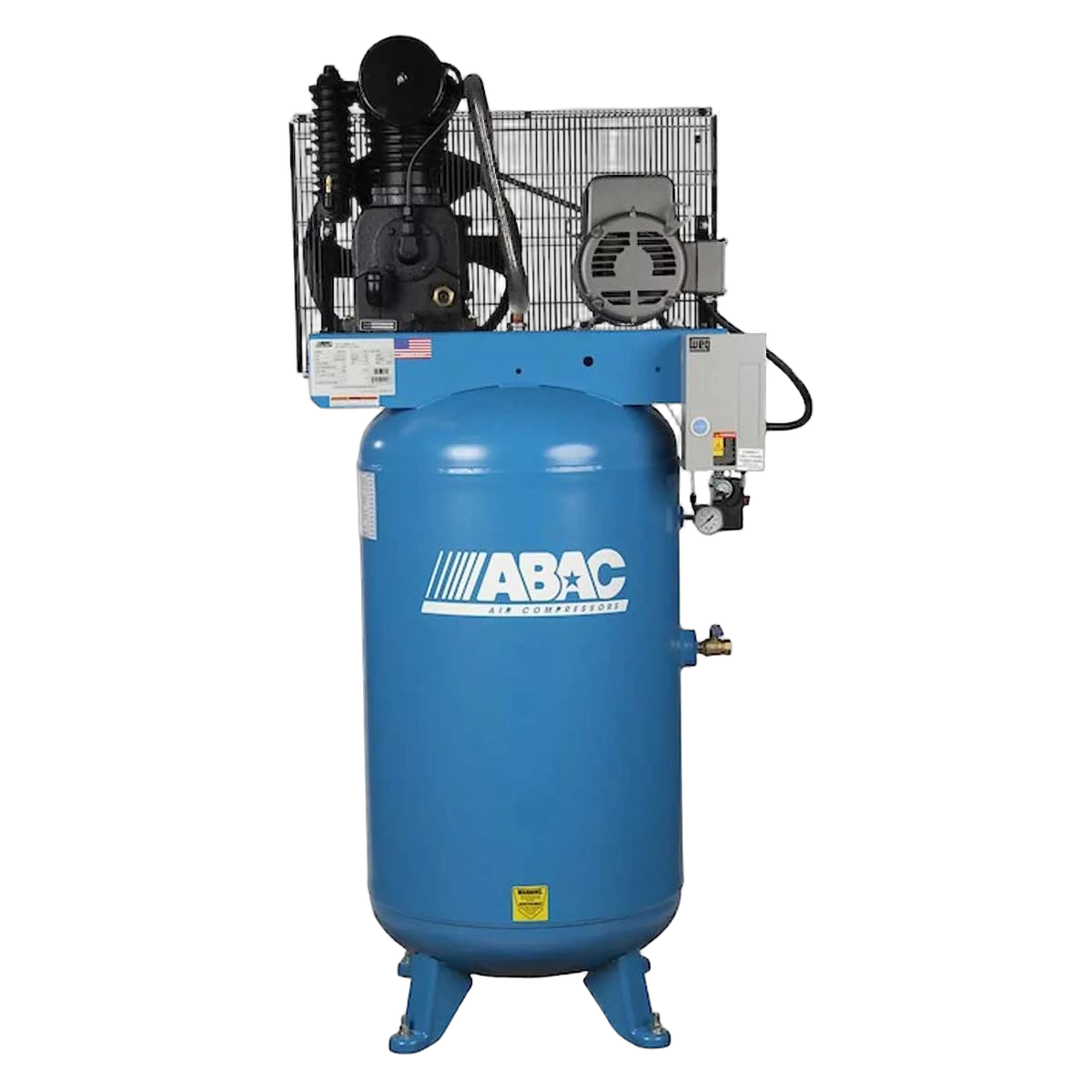

ABAC 2021119422

ABAC 2021119422 is a 7.5 HP oil-lubricated reciprocating air compressor with an 80-gallon tank. The model number 2021119422 is an ABAC catalog or part number. List price is approximately $3,612 through authorized ABAC distributors. This is a modest industrial shop-air unit suited to tire service, general maintenance, and light manufacturing with modest compressed-air demands. Key gaps: SCFM output rating and operating PSI not available in current sources; voltage specification not confirmed; weight not published; number of stages not confirmed; OEM datasheet from abac.com not located. This entry requires primary-source enrichment before complete buyer specifications can be provided.

HP
7.50
CFM
22.2 @ 175 PSI
Duty
— continuous
Tank size
80 gal
Air output per horsepowerAirflow per motor HP
2.96CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 2-stage piston
67%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$163$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages2-stage recip
Cylinder—
Pump RPM—
Lubricationoil-lubricated
Oil—
Sump—
Pump life—
Pump material—
Head material—
Intercooler—
PERFORMANCE
Catalog CFM22.2 @ 175 PSI
CFM / HP2.96
Cut-in / out—
Tank fill—
Est. draw6.6 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $2,363
Maintenance · yearlyEst. $188
Savings with Compressor Controller · yearlyEst. $544–$993
ELECTRICAL & FORM
Serviceelectric
Voltage230/1/60
Amps—
Motor—
Motor RPM—
Control—
Starter—
Weight403 lb
Form— · 80 gal
BUILD & ENVIRONMENT
Air outlet—
Drain—
Drain outlet—
ASME tank—
Made in USA—
Noise—
Op. temp—
Dimensions—
Ship weight—
Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1708 units
Peer class
182 · 7.5 HP
Sizing & pricevs. 182 in class
  • SCFM @ 7.5 HP22.2cfm
    20median 2457
    -7.5% vs. median
  • Average price$3,612
    $1,698median $5,117$19k
    -29.4% vs. median
Efficiency vs. peersvs. 182 in class
  • CFM per HP2.96cfm/hp
    2.67median 3.27.65
    -7.5% vs. median
  • Price per CFM$163$/scfm
    $69median $211$632
    -23.2% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$3,431$3,552$3,672$3,793avg $3,612today-10d-20d-30d
