What horsepower is the ABAC AS-20503BM air compressor?

The ABAC AS-20503BM is rated at 20 HP.

How much air does the ABAC AS-20503BM produce?

The ABAC AS-20503BM delivers 54 SCFM at 150 PSI.

What size tank does the ABAC AS-20503BM have?

The ABAC AS-20503BM has a 0-gallon horizontal tank.

Is the ABAC AS-20503BM single-stage or two-stage?

The ABAC AS-20503BM is a single-stage compressor.

What voltage does the ABAC AS-20503BM require?

The ABAC AS-20503BM runs on 230/1.

Is the ABAC AS-20503BM oil-free or oil-lubricated?

The ABAC AS-20503BM is oil-flooded.

What is the duty cycle of the ABAC AS-20503BM?

The ABAC AS-20503BM has a 0% duty cycle.

What is the ABAC AS-20503BM best for?

The ABAC AS-20503BM is best suited for ABAC AS-20503BM screw air compressor for industrial use.

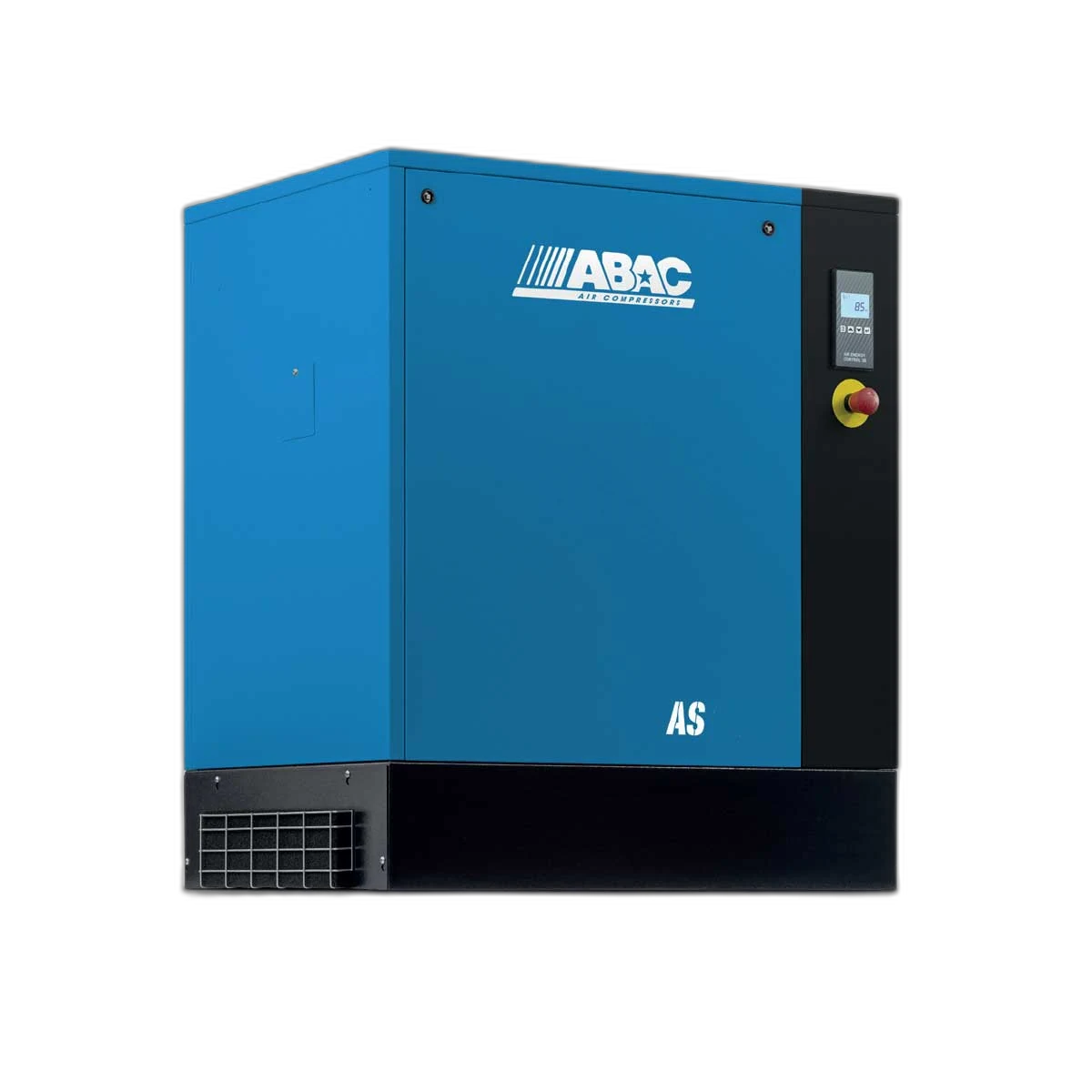

ABAC AS-20503BM

ABAC AS-20503BM is a 20 HP single-stage rotary screw air compressor delivering 80 SCFM at 150 PSI, oil-flooded lubrication, base-mounted, wired for 230V single-phase. Weighing 516 lbs in a horizontal simplex configuration, targeting continuous-duty plant air and manufacturing shop applications. Maximum working pressure is 150 PSI. Priced at approximately $10,318. The BM suffix indicates base-mount configuration without an integrated receiver tank. Gaps: no duty cycle percentage specified; no OEM datasheet URL confirmed; no noise level data.

CFM

54 @ 150 PSI

Duty

— continuous

Tank size

— gal

Air output per horsepowerAirflow per motor HP

2.70CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$191$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM54 @ 150 PSI

CFM / HP2.70

Cut-in / out—

Tank fill—

Est. draw17.6 kW

COST & MAINTENANCE

Electric · yearlyEst. $6,302

Maintenance · yearlyEst. $500

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight516 lb

FormHorizontal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 42 · 20 HP

Sizing & pricevs. 42 in class

SCFM @ 20 HP54cfm
20median 7892
-30.8% vs. median
Average price$10,318
$10,318median $17,180$25k
-39.9% vs. median

Efficiency vs. peersvs. 42 in class

CFM per HP2.7cfm/hp
1median 3.94.6
-30.8% vs. median
Price per CFM$191$/scfm
$170median $226$1,262
-15.6% vs. median
