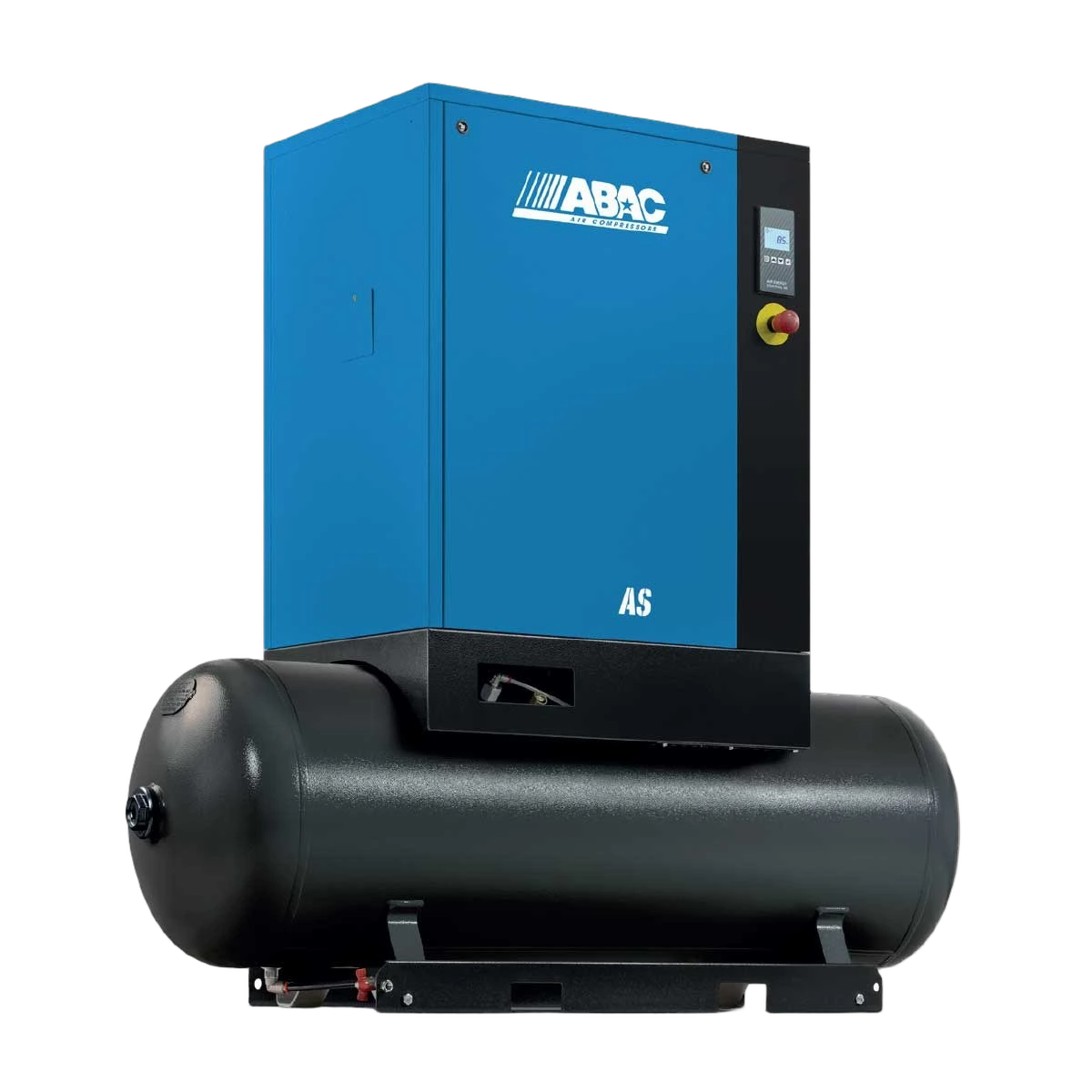

The ABAC AS-20253TM is a 20 HP rotary screw air compressor delivering 80 SCFM at 125 PSI on a 240-gallon horizontal tank, wired for 230V single-phase, oil-flooded. Machine weight is 813 lbs. Single-stage, simplex, continuous-duty design with no piston reciprocation. The TM suffix indicates tank-mounted without a factory dryer, distinguishing this model from the TMD variant which includes a dryer. Max working pressure is 125 PSI — suitable for air networks that do not require elevated pressure, reducing energy consumption at lower system pressure compared to 150 PSI variants. The 240-gallon receiver provides substantial storage volume, stabilizing pressure under peak demand and extending on-intervals. Oil-flooded screw element delivers quiet, efficient output. Suitable for automotive production, fabrication, and manufacturing cells requiring steady 60 to 80 SCFM at 125 PSI. Single-phase wiring allows installation without three-phase service.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 42 · 20 HP
- SCFM @ 20 HP60.6cfm20median 7892-22.3% vs. median
- Average price$11,254$10,318median $17,180$25k-34.5% vs. median
- CFM per HP3.03cfm/hp1median 3.94.6-22.3% vs. median
- Price per CFM$186$/scfm$170median $226$1,262-17.9% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
