What horsepower is the ABAC AS-15253TMD air compressor?

The ABAC AS-15253TMD is rated at 15 HP.

How much air does the ABAC AS-15253TMD produce?

The ABAC AS-15253TMD delivers 52.1 SCFM at 125 PSI.

What size tank does the ABAC AS-15253TMD have?

The ABAC AS-15253TMD has a 120-gallon horizontal tank.

Is the ABAC AS-15253TMD single-stage or two-stage?

The ABAC AS-15253TMD is a single-stage compressor.

What voltage does the ABAC AS-15253TMD require?

The ABAC AS-15253TMD runs on 230/1.

Is the ABAC AS-15253TMD oil-free or oil-lubricated?

The ABAC AS-15253TMD is oil-flooded.

What is the duty cycle of the ABAC AS-15253TMD?

The ABAC AS-15253TMD has a 0% duty cycle.

What is the ABAC AS-15253TMD best for?

The ABAC AS-15253TMD is best suited for ABAC AS-15253TMD screw air compressor for industrial use.

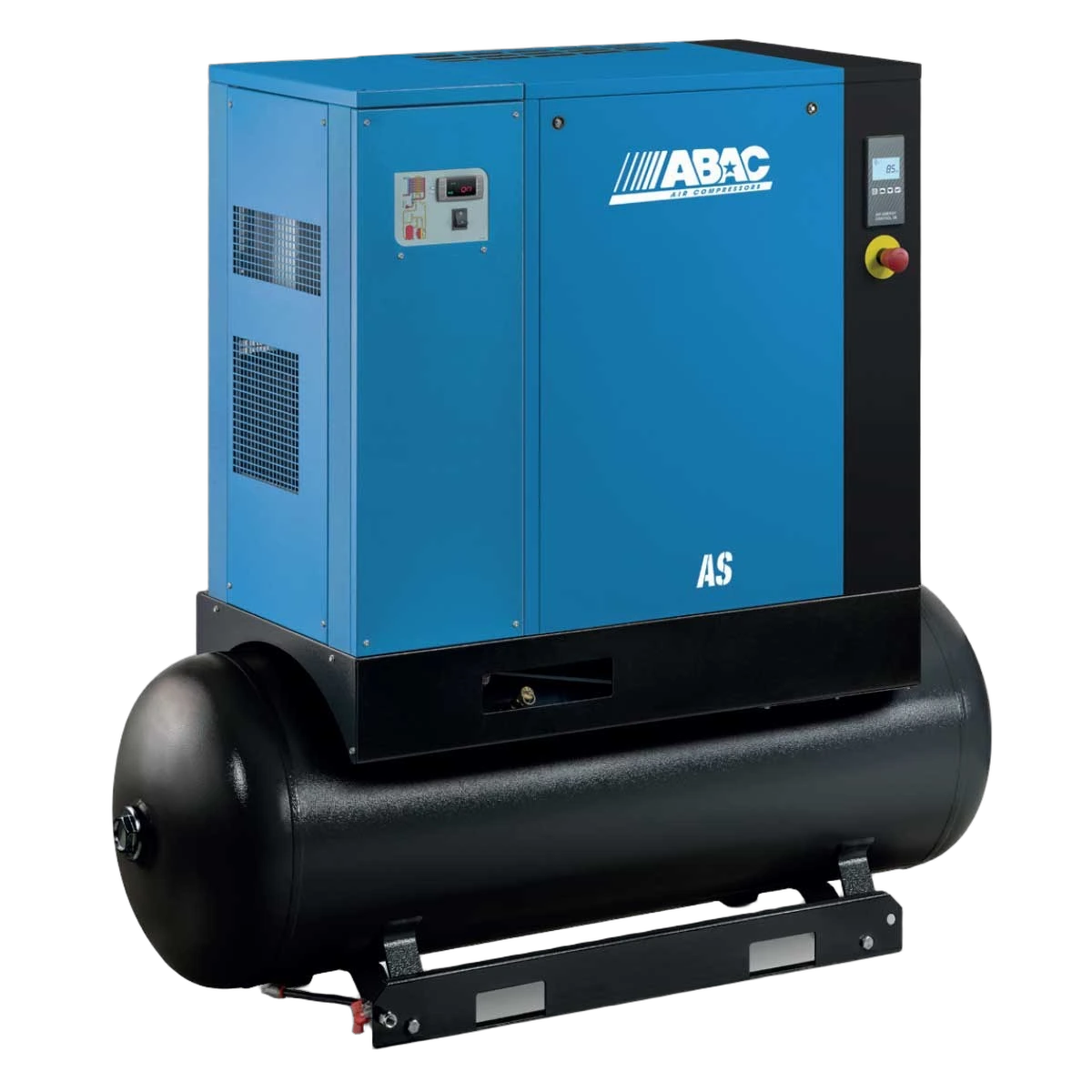

ABAC AS-15253TMD

ABAC AS-15253TMD is a 15 HP single-stage rotary screw air compressor delivering 60 SCFM at 125 PSI on a 120-gallon horizontal tank, wired for 230V single-phase, oil-flooded lubrication. TMD suffix indicates tank-mounted duplex-ready configuration. Weighing 866 lbs. Maximum working pressure is 125 PSI. Priced at approximately $12,451. The 120-gallon receiver significantly reduces pressure drops under sustained high-demand use in manufacturing and plant air. Gaps: no duty cycle percentage; no OEM datasheet URL confirmed; no noise level data.

CFM

52.1 @ 125 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.47CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$239$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM52.1 @ 125 PSI

CFM / HP3.47

Cut-in / out—

Tank fill—

Est. draw13.2 kW

COST & MAINTENANCE

Electric · yearlyEst. $4,727

Maintenance · yearlyEst. $375

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight866 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 44 · 15 HP

Sizing & pricevs. 44 in class

SCFM @ 15 HP52.1cfm
20median 55.571
-6% vs. median
Average price$12,451
$9,196median $14,432$25k
-13.7% vs. median

Efficiency vs. peersvs. 44 in class

CFM per HP3.47cfm/hp
1.33median 3.734.73
-6.8% vs. median
Price per CFM$239$/scfm
$153median $251$905
-4.9% vs. median

Where this is sold

Retailer
Verified 2 months ago
$12,451
Lowest

Find an installer / dealer near youAuthorized ABAC dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
