What horsepower is the ABAC AS-10S753TMD air compressor?

The ABAC AS-10S753TMD is rated at 10 HP.

How much air does the ABAC AS-10S753TMD produce?

The ABAC AS-10S753TMD delivers 40 SCFM at 175 PSI.

What size tank does the ABAC AS-10S753TMD have?

The ABAC AS-10S753TMD has a 120-gallon horizontal tank.

Is the ABAC AS-10S753TMD single-stage or two-stage?

The ABAC AS-10S753TMD is a single-stage compressor.

What voltage does the ABAC AS-10S753TMD require?

The ABAC AS-10S753TMD runs on 230/1.

Is the ABAC AS-10S753TMD oil-free or oil-lubricated?

The ABAC AS-10S753TMD is oil-flooded.

What is the duty cycle of the ABAC AS-10S753TMD?

The ABAC AS-10S753TMD has a 100% duty cycle.

What is the ABAC AS-10S753TMD best for?

The ABAC AS-10S753TMD is best suited for ABAC AS-10S753TMD screw air compressor for industrial use.

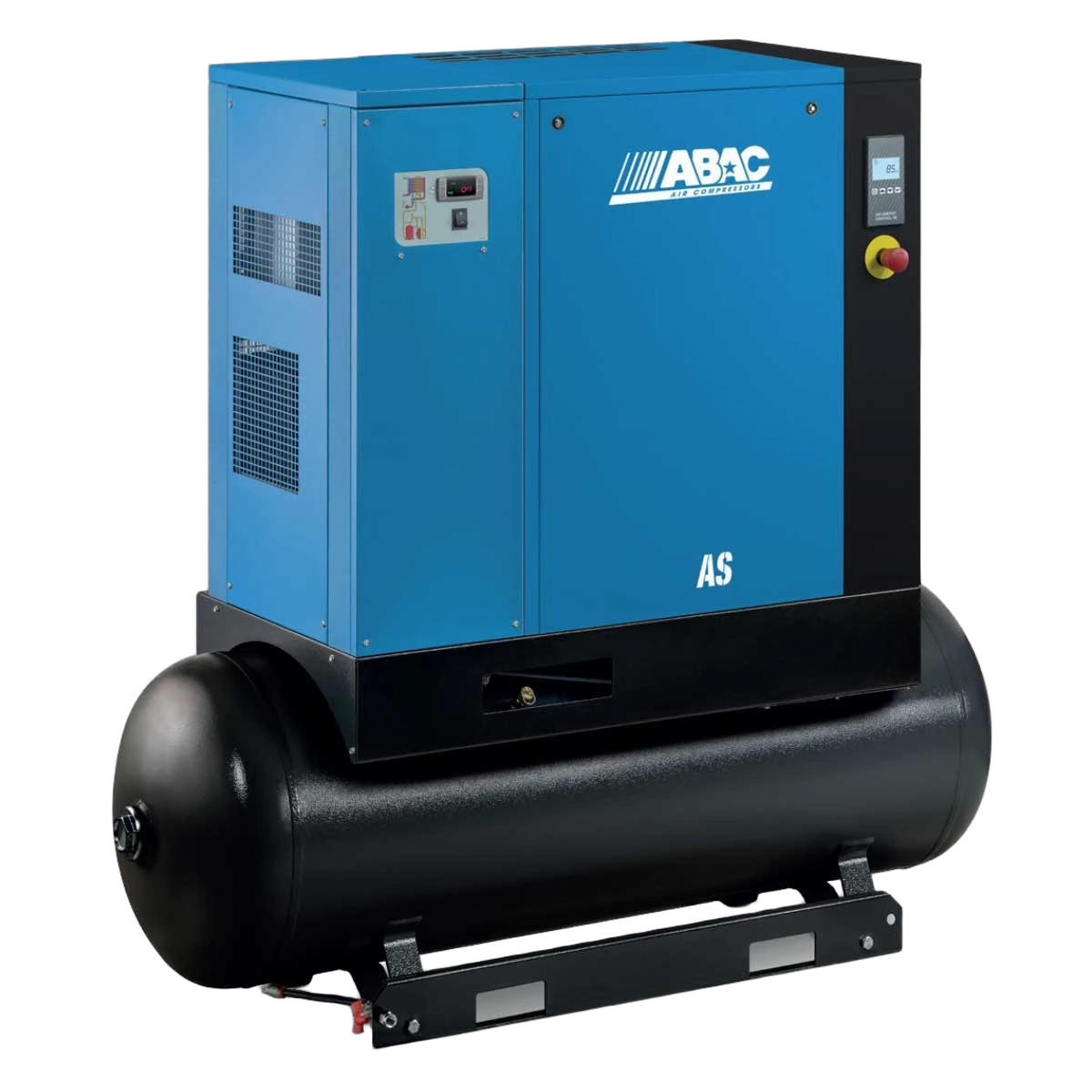

ABAC AS-10S753TMD

The ABAC AS-10S753TMD is a mid-range rotary screw compressor delivering 10.00 HP, 40.00 SCFM @ 175 PSI, 120.0-gallon horizontal tank wired for 230/1, oil-flooded lubrication, single-stage. Unit weight is 840 lb. SAP part number 4152044995. List price approximately $9,976. Rotary screw design provides continuous-duty operation suited to manufacturing cells, production lines, and sustained shop air demand where reciprocating compressors hit duty-cycle limits.

CFM

40 @ 175 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

4CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$249$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM40 @ 175 PSI

CFM / HP4

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight840 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 59 · 10 HP

Sizing & pricevs. 59 in class

SCFM @ 10 HP40cfm
20median 39.845
+0.6% vs. median
Average price$9,976
$4,547median $11,392$26k
-12.4% vs. median

Efficiency vs. peersvs. 59 in class

CFM per HP4cfm/hp
2median 44.5
0% vs. median
Price per CFM$249$/scfm
$185median $282$903
-11.7% vs. median
