What horsepower is the ABAC AS-10503BM air compressor?

The ABAC AS-10503BM is rated at 10 HP.

How much air does the ABAC AS-10503BM produce?

The ABAC AS-10503BM delivers 34.1 SCFM at 150 PSI.

What size tank does the ABAC AS-10503BM have?

The ABAC AS-10503BM has a 0-gallon horizontal tank.

Is the ABAC AS-10503BM single-stage or two-stage?

The ABAC AS-10503BM is a single-stage compressor.

What voltage does the ABAC AS-10503BM require?

The ABAC AS-10503BM runs on 208-230-460/3/60.

Is the ABAC AS-10503BM oil-free or oil-lubricated?

The ABAC AS-10503BM is oil-flooded.

What is the duty cycle of the ABAC AS-10503BM?

The ABAC AS-10503BM has a 100% duty cycle.

What is the ABAC AS-10503BM best for?

The ABAC AS-10503BM is best suited for industrial/commercial shop.

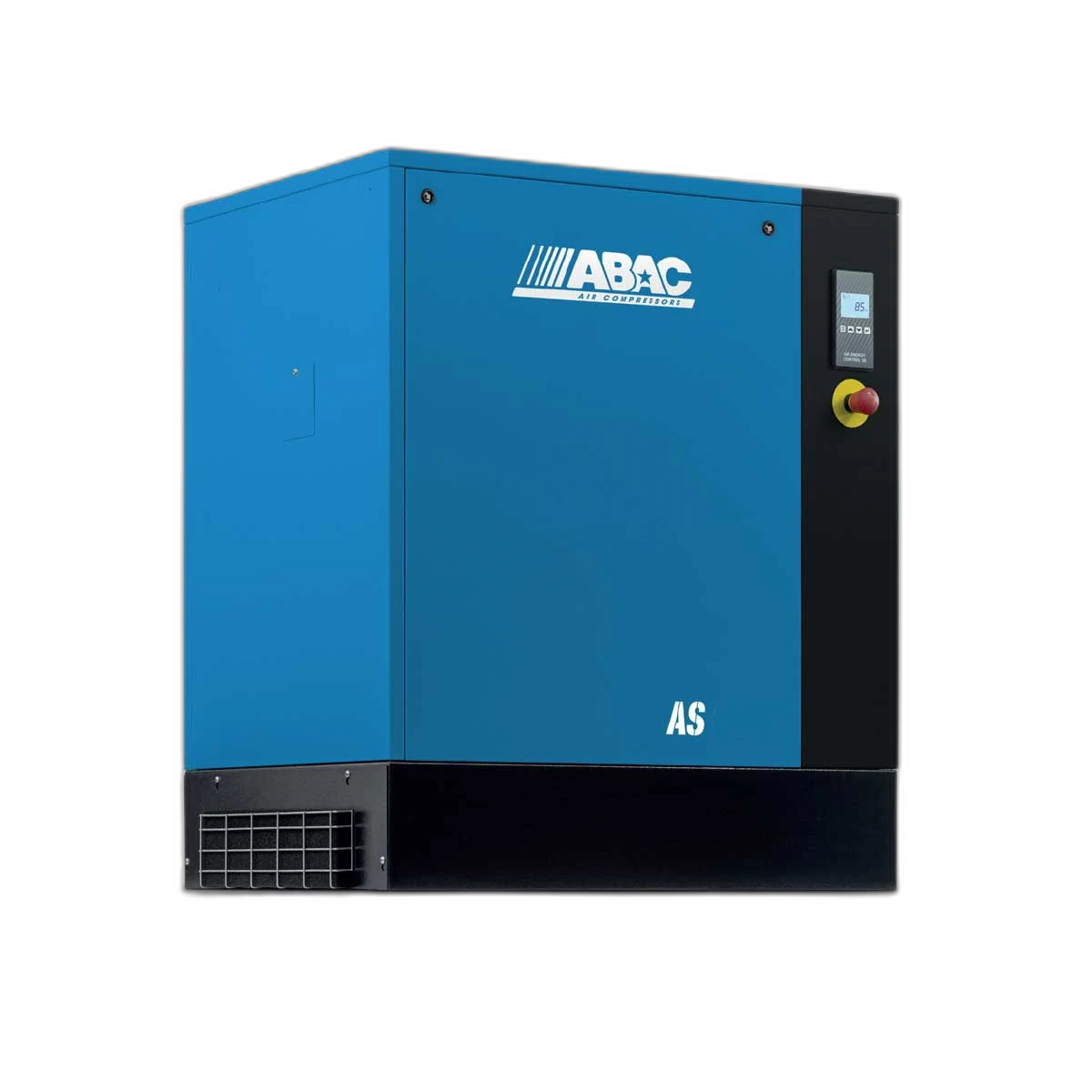

ABAC AS-10503BM

ABAC AS-10503BM is a 10 HP single-stage oil-flooded rotary screw air compressor delivering 40 SCFM at 150 PSI on a base-mounted (tank-less) package, wired for 208-230/460V three-phase. Rated for continuous-duty plant air, the AS-10503BM weighs 419 lb and carries MPN AS-10503BM (SAP part 4152043888 for the 230/1 variant). Maximum operating pressure is 150 PSI. The oil-flooded screw element eliminates piston reciprocation, making it suited for manufacturing cells, paint booths, and shop air systems requiring uninterrupted delivery. Pricing via specialty industrial distributors is approximately $7,771. Gaps: no OEM sound level (dB), no displacement CFM, no ISO 1217 certification data available from current sources.

CFM

34.1 @ 150 PSI

Duty

100% continuous

Tank size

— gal

Air output per horsepowerAirflow per motor HP

3.41CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$228$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM34.1 @ 150 PSI

CFM / HP3.41

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

ELECTRICAL & FORM

Serviceelectric

Voltage208-230-460/3/60

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight419 lb

FormHorizontal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 59 · 10 HP

Sizing & pricevs. 59 in class

SCFM @ 10 HP34.1cfm
20median 39.845
-14.2% vs. median
Average price$7,771
$4,547median $11,392$26k
-31.8% vs. median

Efficiency vs. peersvs. 59 in class

CFM per HP3.41cfm/hp
2median 44.5
-14.7% vs. median
Price per CFM$228$/scfm
$185median $282$903
-19.3% vs. median
