What horsepower is the ABAC ABC5-5380V air compressor?

The ABAC ABC5-5380V is rated at 5 HP.

How much air does the ABAC ABC5-5380V produce?

The ABAC ABC5-5380V delivers 16 SCFM at 175 PSI.

What size tank does the ABAC ABC5-5380V have?

The ABAC ABC5-5380V has a 80-gallon vertical tank.

Is the ABAC ABC5-5380V single-stage or two-stage?

The ABAC ABC5-5380V is a two-stage compressor.

What voltage does the ABAC ABC5-5380V require?

The ABAC ABC5-5380V runs on 230/1.

What is the ABAC ABC5-5380V best for?

The ABAC ABC5-5380V is best suited for ABAC ABC5-5380V reciprocating-industrial air compressor for industrial use.

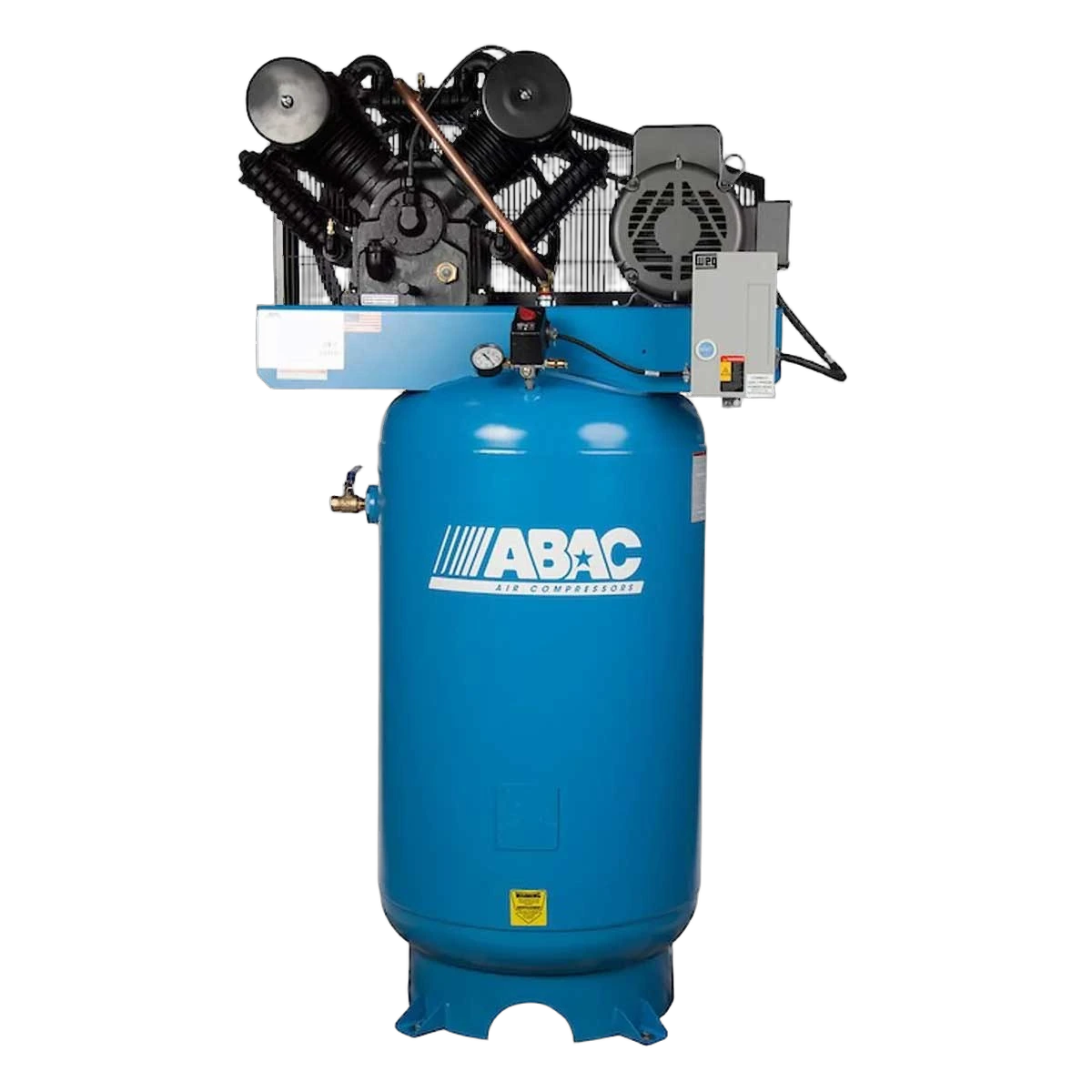

ABAC ABC5-5380V

ABAC ABC5-5380V is a 5 HP two-stage splash-lubricated reciprocating air compressor delivering 17.3 SCFM @ 175 PSI (max 175 PSI) on an 80-gallon vertical tank, wired for 230V/1-phase. Simplex configuration, 580 lbs. SAP part number 2020041770. Two-stage cast-iron piston pump entry-level industrial design suited for light fabrication, automotive service bays, and small shop air. Available at approximately $3,192 via specialty industrial distribution. Gaps: duty cycle not specified; MPN not listed; OEM datasheet not confirmed on abac.com.

CFM

16 @ 175 PSI

Duty

— continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

3.20CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$200$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM16 @ 175 PSI

CFM / HP3.20

Cut-in / out—

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

Savings with Compressor Controller · yearlyEst. $362–$662

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight580 lb

FormVertical · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 157 · 5 HP

Sizing & pricevs. 157 in class

SCFM @ 5 HP16cfm
10median 17.238
-7% vs. median
Average price$3,192
$962median $4,178$17k
-23.6% vs. median

Efficiency vs. peersvs. 157 in class

CFM per HP3.2cfm/hp
2.08median 3.447.64
-7% vs. median
Price per CFM$200$/scfm
$77median $228$864
-12.6% vs. median

Where this is sold

Retailer
Verified 2 months ago
$3,192
Lowest

Find an installer / dealer near youAuthorized ABAC dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

compressorsnow.com
