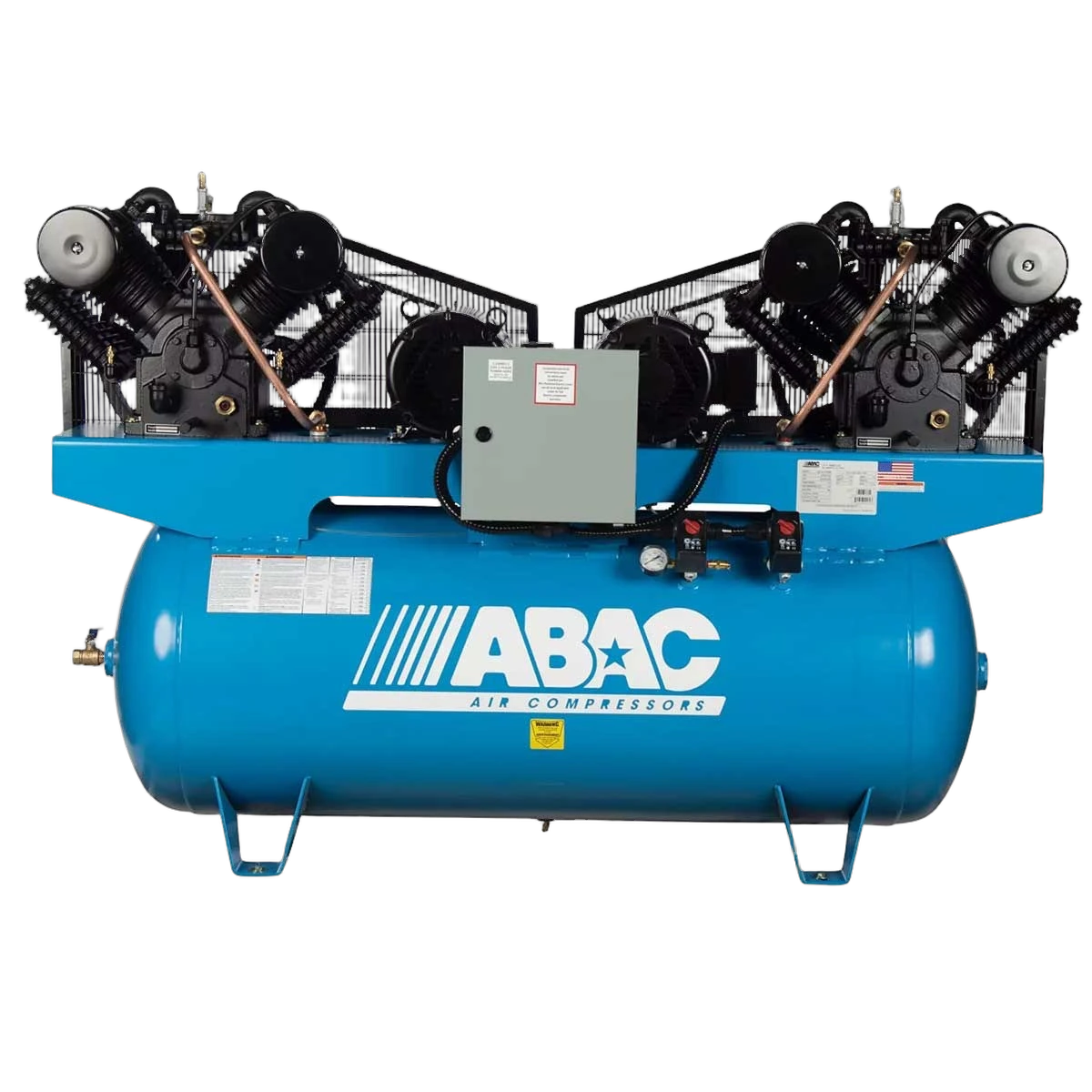

ABAC ABC5-43120HD is a 5 HP two-stage duplex reciprocating air compressor delivering 17.3 SCFM @ 175 PSI on a 120-gallon horizontal tank, wired for 230V single-phase, splash-lubricated. Unit weight is 1,120 lbs. Retail price is approximately $7,451. The ABC5 Series differs from the ABC7 Series (1,138 lbs, $7,385-$7,566) in pump design details; both deliver equivalent airend performance at this HP and pressure. Duplex configuration provides higher duty cycle and redundancy over simplex equivalents. Suited for auto-service shops and light manufacturing. Gaps: OEM datasheet and exact ABC5 vs ABC7 design distinction not confirmed from primary source, dB noise rating unavailable.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 157 · 5 HP
- SCFM @ 5 HP17.3cfm10median 17.238+0.6% vs. median
- Average price$7,451$962median $4,178$17k+78.3% vs. median
- CFM per HP3.46cfm/hp2.08median 3.447.64+0.6% vs. median
- Price per CFM$431$/scfm$77median $228$864+88.7% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
