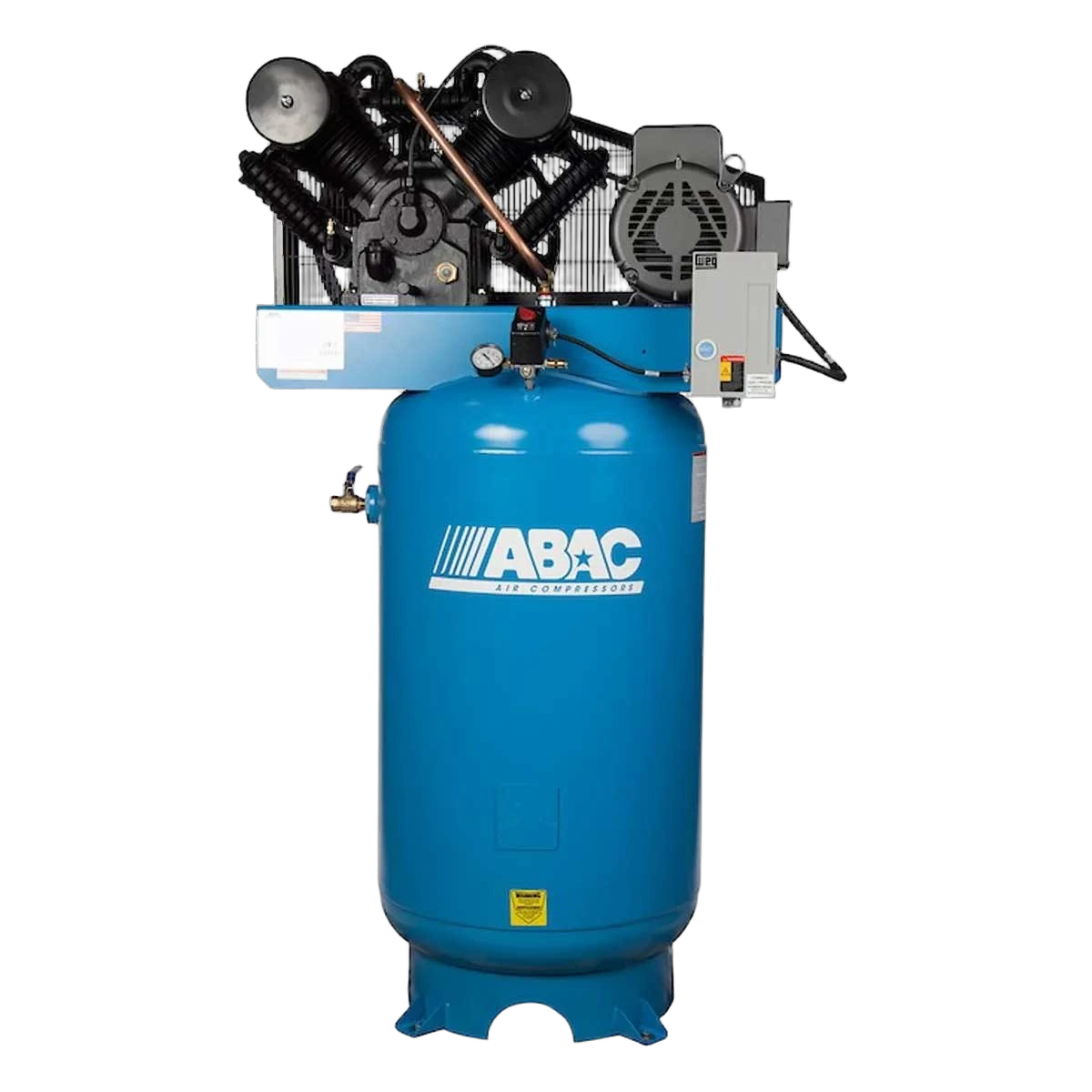

ABC5-2180V

ABAC ABC5-2180V is a 5 HP two-stage splash-lubricated reciprocating piston air compressor delivering 17.3 SCFM at 175 PSI on an 80-gallon vertical tank, wired for 230V single-phase. The simplex piston design weighs 580 lbs and reaches 175 PSI maximum — a two-stage configuration that improves thermodynamic efficiency over single-stage designs at the same horsepower. The 80-gallon vertical tank provides storage capacity in a compact floor footprint, suited for automotive bays, fabrication shops, and contractor air stations. At $3,012 list price, the ABC5-2180V shares performance specs with the ABC5-4380V model; the model suffix indicates a configuration variant. Known gaps: duty cycle percentage, noise level (dBA), motor NEMA frame size, and service intervals not available in current catalog record.
