What horsepower is the ABAC ABC10-53120HFF air compressor?

The ABAC ABC10-53120HFF is rated at 10 HP.

How much air does the ABAC ABC10-53120HFF produce?

The ABAC ABC10-53120HFF delivers 32 SCFM at 175 PSI.

What size tank does the ABAC ABC10-53120HFF have?

The ABAC ABC10-53120HFF has a 120-gallon horizontal tank.

Is the ABAC ABC10-53120HFF single-stage or two-stage?

The ABAC ABC10-53120HFF is a two-stage compressor.

What voltage does the ABAC ABC10-53120HFF require?

The ABAC ABC10-53120HFF runs on 575/3/60.

What is the ABAC ABC10-53120HFF best for?

The ABAC ABC10-53120HFF is best suited for industrial/commercial shop.

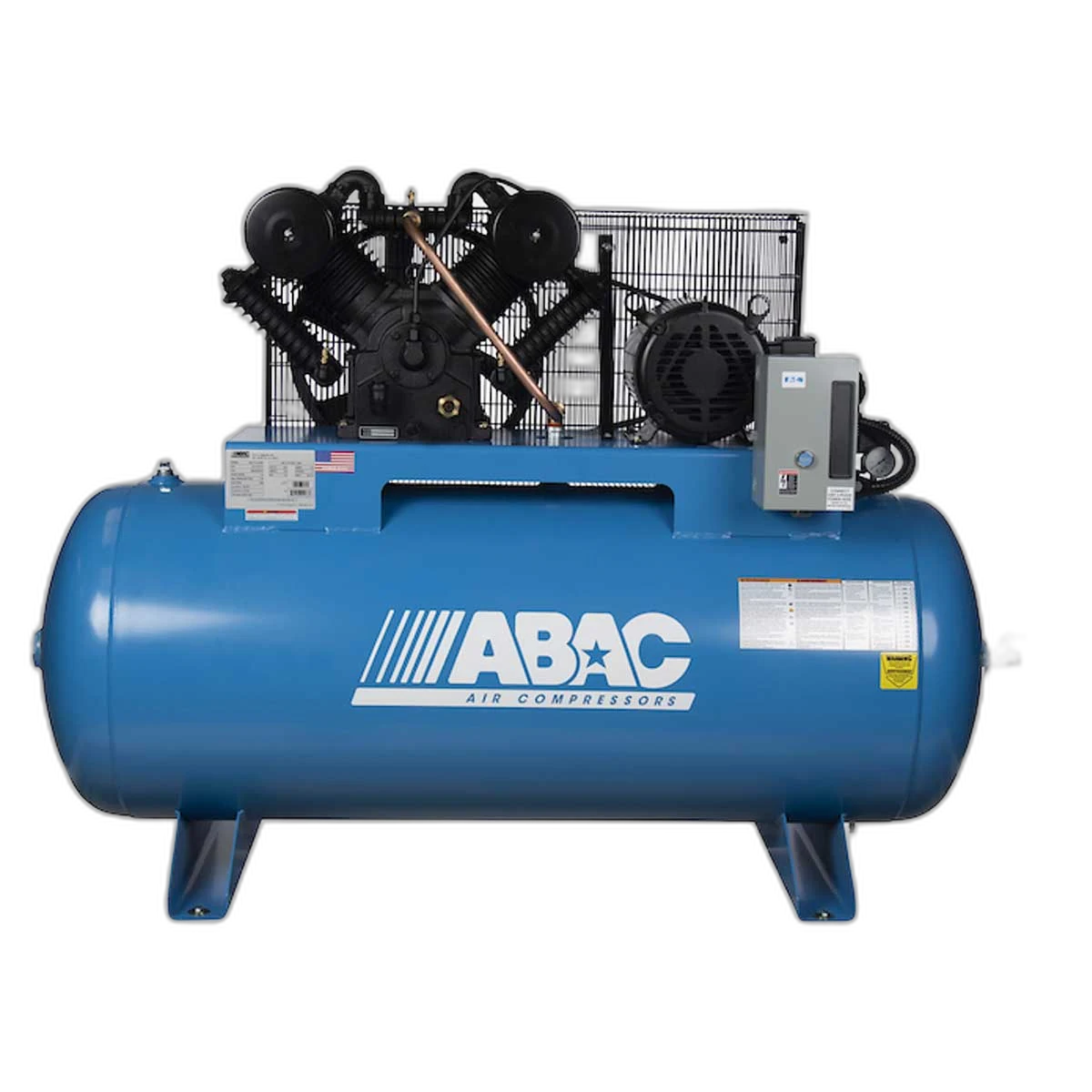

ABAC ABC10-53120HFF – 10 HP 120-Gallon Air Compressor

ABAC ABC10-53120HFF is a 10 HP two-stage reciprocating simplex air compressor delivering 34.8 SCFM @ 175 PSI on a 120-gallon horizontal tank, wired for 230V single-phase. Weighing 728 lbs. Splash-lubricated construction with full-float valve (HFF = horizontal tank, full-float valve). The horizontal orientation differentiates it from the VFF vertical siblings (ABC10-43/53-120VFF); horizontal tanks offer lower center-of-gravity and easier drain access. Key specs: 10 HP, 34.8 SCFM @ 175 PSI, 120-gallon horizontal tank, 230/1, splash-lubricated two-stage simplex, 728 lbs. Price and OEM datasheet are pending confirmation via ABAC distributor. Suitable for facilities requiring an industrial reciprocating unit with a low-profile horizontal installation.

CFM

32 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.20CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$175$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM32 @ 175 PSI

CFM / HP3.20

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage575/3/60

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight728 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 127 · 10 HP

Sizing & pricevs. 127 in class

SCFM @ 10 HP32cfm
17median 34.279
-6.4% vs. median
Average price$5,595
$3,555median $7,494$27k
-25.3% vs. median

Efficiency vs. peersvs. 127 in class

CFM per HP3.2cfm/hp
1.72median 3.427.96
-6.4% vs. median
Price per CFM$175$/scfm
$103median $210$517
-17.1% vs. median

Where this is sold

Retailer
Verified 2 months ago
$5,595
Lowest

Find an installer / dealer near youAuthorized ABAC dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
