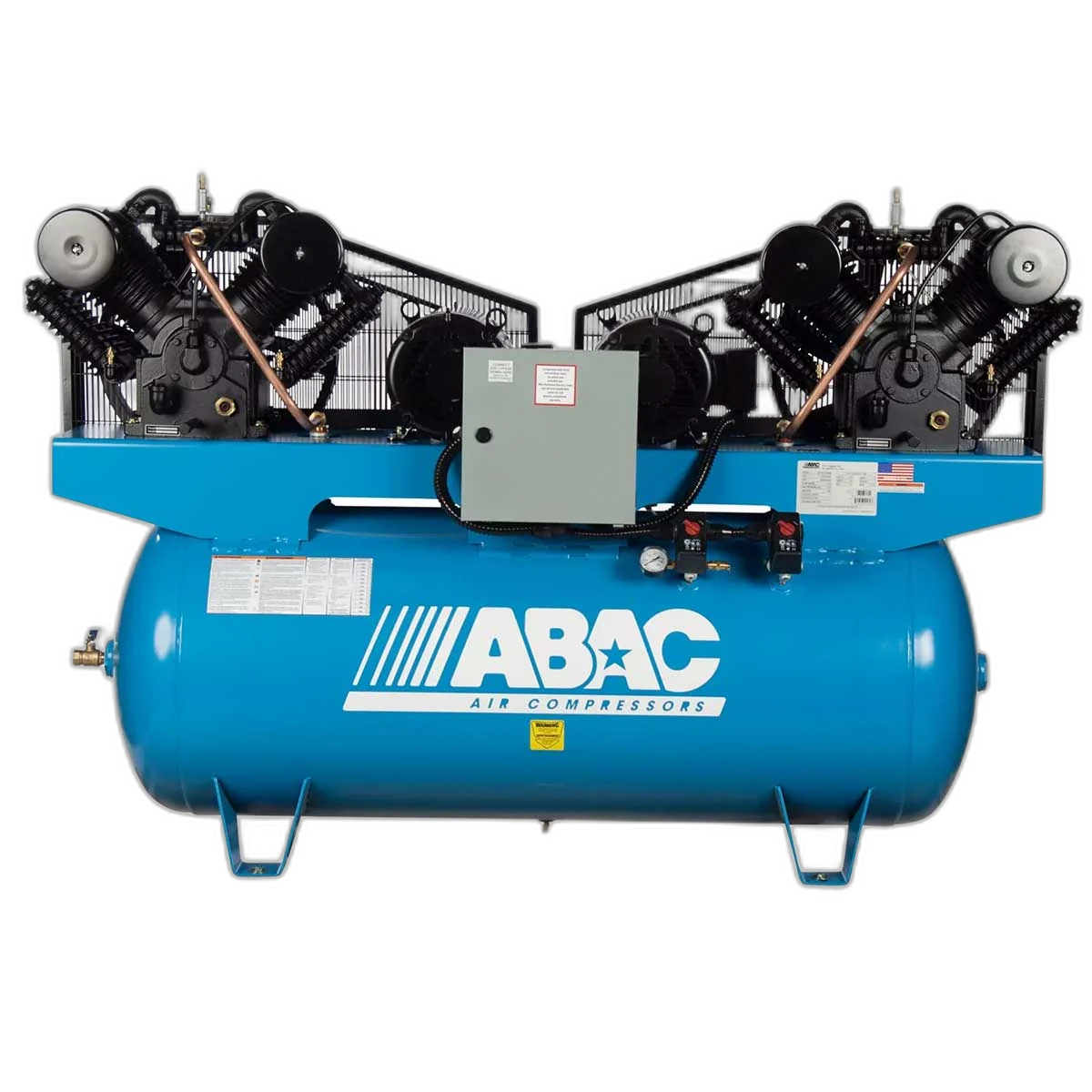

ABAC ABC10-53120HD is a 20 HP duplex two-stage reciprocating air compressor delivering 67 SCFM @ 175 PSI on a 120-gallon horizontal tank, wired for 575V three-phase. Weighing 1,302 lbs, this is a heavy industrial machine. The duplex configuration uses two pump heads driven by a single motor, improving redundancy and balancing wear across pumps. Splash-lubricated construction. Key specs: 20 HP, 67 SCFM @ 175 PSI, 120-gallon horizontal tank, 230/1 power, splash-lubricated duplex two-stage pump, 1,302 lbs. The model suffix “HD” indicates a heavy-duty designation. Price and OEM datasheet URL are not yet listed; verify via ABAC distributor. Suitable for industrial production, large-body shops, and facilities requiring high-volume intermittent air. No primary source documentation is currently linked.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1708 units
- Peer class
- 40 · 20 HP
- SCFM @ 20 HP64cfm58median 7092-8.6% vs. median
- Average price$8,946$8,083median $15,183$39k-41.1% vs. median
- CFM per HP3.2cfm/hp2.92median 3.54.61-8.6% vs. median
- Price per CFM$140$/scfm$101median $203$589-31.5% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
