What horsepower is the ABAC ABC10-43120HD air compressor?

The ABAC ABC10-43120HD is rated at 10 HP.

How much air does the ABAC ABC10-43120HD produce?

The ABAC ABC10-43120HD delivers 34.8 SCFM at 175 PSI.

What size tank does the ABAC ABC10-43120HD have?

The ABAC ABC10-43120HD has a 120-gallon horizontal tank.

Is the ABAC ABC10-43120HD single-stage or two-stage?

The ABAC ABC10-43120HD is a two-stage compressor.

What voltage does the ABAC ABC10-43120HD require?

The ABAC ABC10-43120HD runs on 460/3.

What is the ABAC ABC10-43120HD best for?

The ABAC ABC10-43120HD is best suited for ABAC ABC10-43120HD reciprocating-industrial air compressor for industrial use.

ABAC ABC10-43120HD

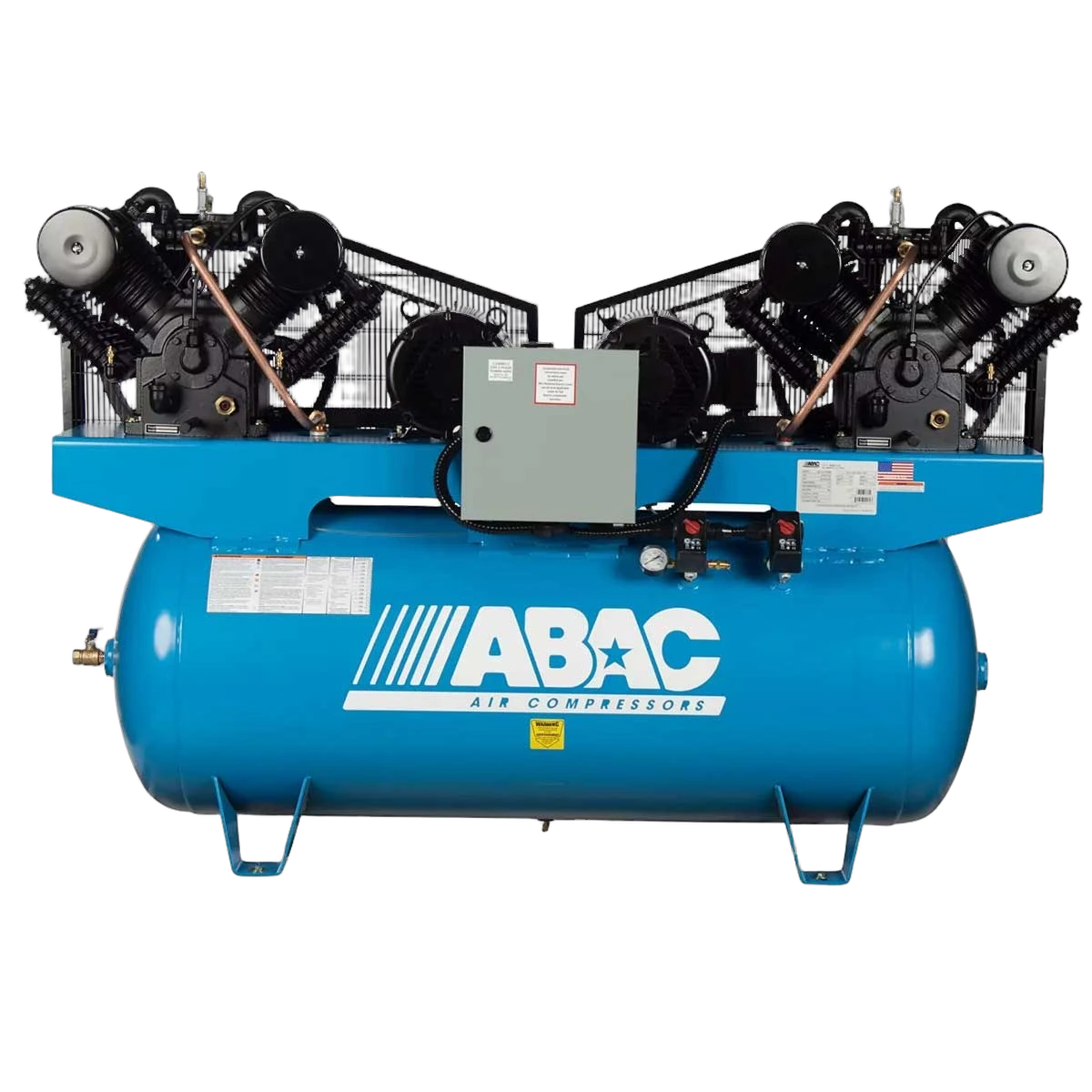

ABAC ABC10-43120HD is a 10 HP two-stage duplex reciprocating air compressor delivering 34.8 SCFM @ 175 PSI on a 120-gallon horizontal tank, wired for 460V three-phase, splash-lubricated. The duplex configuration pairs two piston pumps on a shared tank for improved duty cycle and redundancy compared to simplex. Unit weight is 1,302 lbs. Retail price is approximately $8,765. Compare to the ABC10-23200HD ($9,329, 200-gal tank) for larger air reserve applications. Suited for body shops and production facilities needing sustained availability. Gaps: OEM datasheet URL not confirmed, dB noise rating not available from primary source.

CFM

34.8 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.48CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$252$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM34.8 @ 175 PSI

CFM / HP3.48

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage460/3

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1302 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 127 · 10 HP

Sizing & pricevs. 127 in class

SCFM @ 10 HP34.8cfm
17median 34.279
+1.8% vs. median
Average price$8,765
$3,400median $7,494$27k
+17% vs. median

Efficiency vs. peersvs. 127 in class

CFM per HP3.48cfm/hp
1.72median 3.427.96
+1.8% vs. median
Price per CFM$252$/scfm
$99median $210$517
+19.5% vs. median

Where this is sold

Retailer
Verified 2 months ago
$8,765
Lowest

Find an installer / dealer near youAuthorized ABAC dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

compressorsnow.com
