What horsepower is the ABAC AB7-4380VS air compressor?

The ABAC AB7-4380VS is rated at 7.5 HP.

How much air does the ABAC AB7-4380VS produce?

The ABAC AB7-4380VS delivers 22.2 SCFM at 175 PSI.

What size tank does the ABAC AB7-4380VS have?

The ABAC AB7-4380VS has a 80-gallon vertical tank.

Is the ABAC AB7-4380VS single-stage or two-stage?

The ABAC AB7-4380VS is a two-stage compressor.

What voltage does the ABAC AB7-4380VS require?

The ABAC AB7-4380VS runs on 460/3/60.

What is the ABAC AB7-4380VS best for?

The ABAC AB7-4380VS is best suited for ABAC AB7-4380VS reciprocating-industrial air compressor for industrial use.

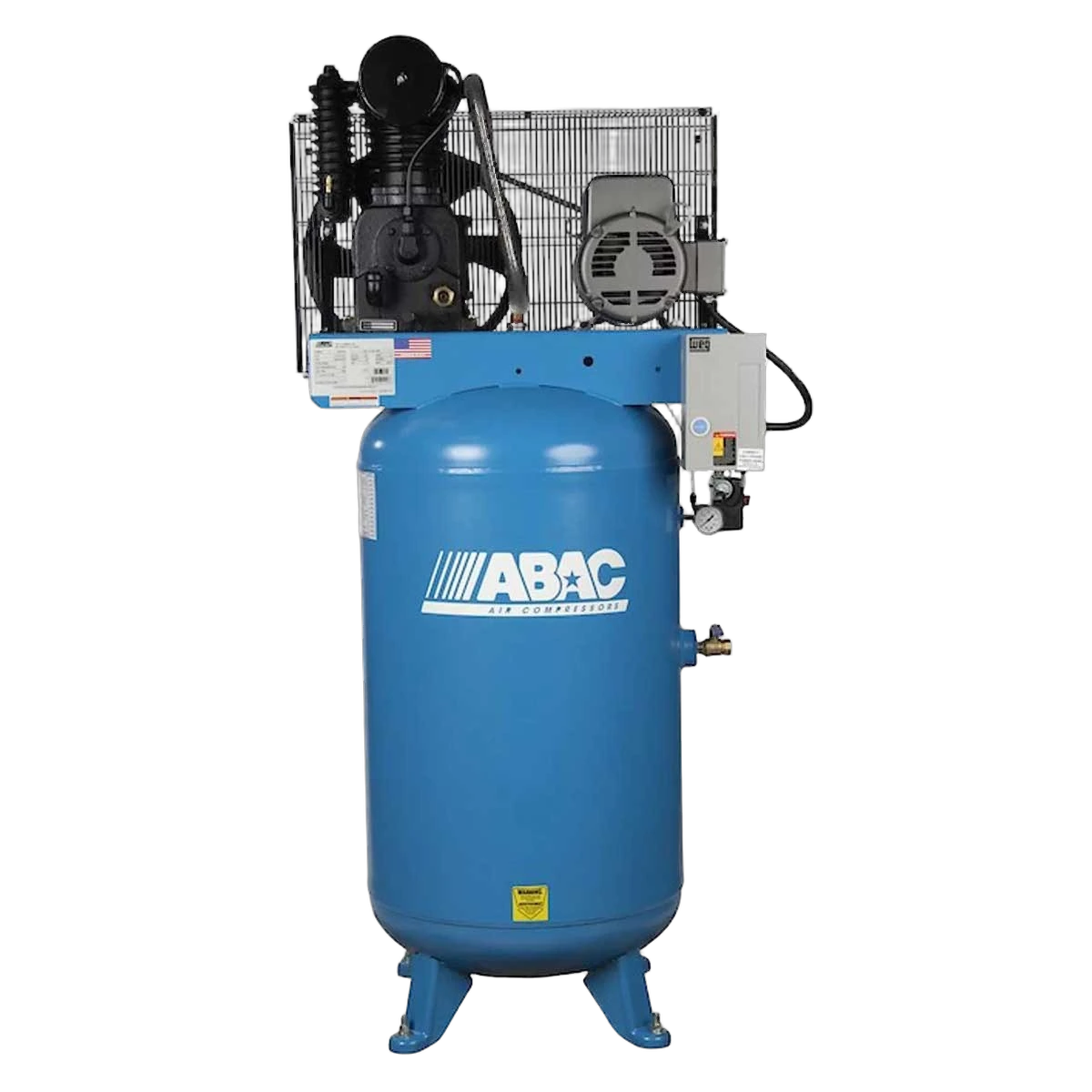

ABAC AB7-4380VS

ABAC AB7-4380VS is a 7.5 HP two-stage splash-lubricated reciprocating air compressor, delivering 22.2 SCFM at 175 PSI, on a vertical 80-gallon tank, running 460V three-phase. Priced at $3,612 across 1 tracked retailer.

7.50

CFM

22.2 @ 175 PSI

Duty

— continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

2.96CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$163$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM22.2 @ 175 PSI

CFM / HP2.96

Cut-in / out—

Tank fill—

Est. draw6.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,363

Maintenance · yearlyEst. $188

Savings with Compressor Controller · yearlyEst. $544–$993

ELECTRICAL & FORM

Serviceelectric

Voltage460/3/60

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight403 lb

FormVertical · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 181 · 7.5 HP

Sizing & pricevs. 181 in class

SCFM @ 7.5 HP22.2cfm
20median 2457
-7.5% vs. median
Average price$3,612
$1,698median $5,082$19k
-28.9% vs. median

Efficiency vs. peersvs. 181 in class

CFM per HP2.96cfm/hp
2.67median 3.27.65
-7.5% vs. median
Price per CFM$163$/scfm
$73median $208$632
-22.1% vs. median

Where this is sold

Retailer
Verified 2 months ago
$3,612
Lowest

Find an installer / dealer near youAuthorized ABAC dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
