What horsepower is the ABAC AB3-2160V1 air compressor?

The ABAC AB3-2160V1 is rated at 3.5 HP.

How much air does the ABAC AB3-2160V1 produce?

The ABAC AB3-2160V1 delivers 12.4 SCFM at 100 PSI.

What is the maximum pressure of the ABAC AB3-2160V1?

The ABAC AB3-2160V1 has a maximum operating pressure of 135 PSI.

What size tank does the ABAC AB3-2160V1 have?

The ABAC AB3-2160V1 has a 60-gallon vertical tank.

Is the ABAC AB3-2160V1 single-stage or two-stage?

The ABAC AB3-2160V1 is a single-stage compressor.

What voltage does the ABAC AB3-2160V1 require?

The ABAC AB3-2160V1 runs on 230/1/60.

What is the ABAC AB3-2160V1 best for?

The ABAC AB3-2160V1 is best suited for ABAC AB3-2160V1 reciprocating-industrial air compressor for industrial use.

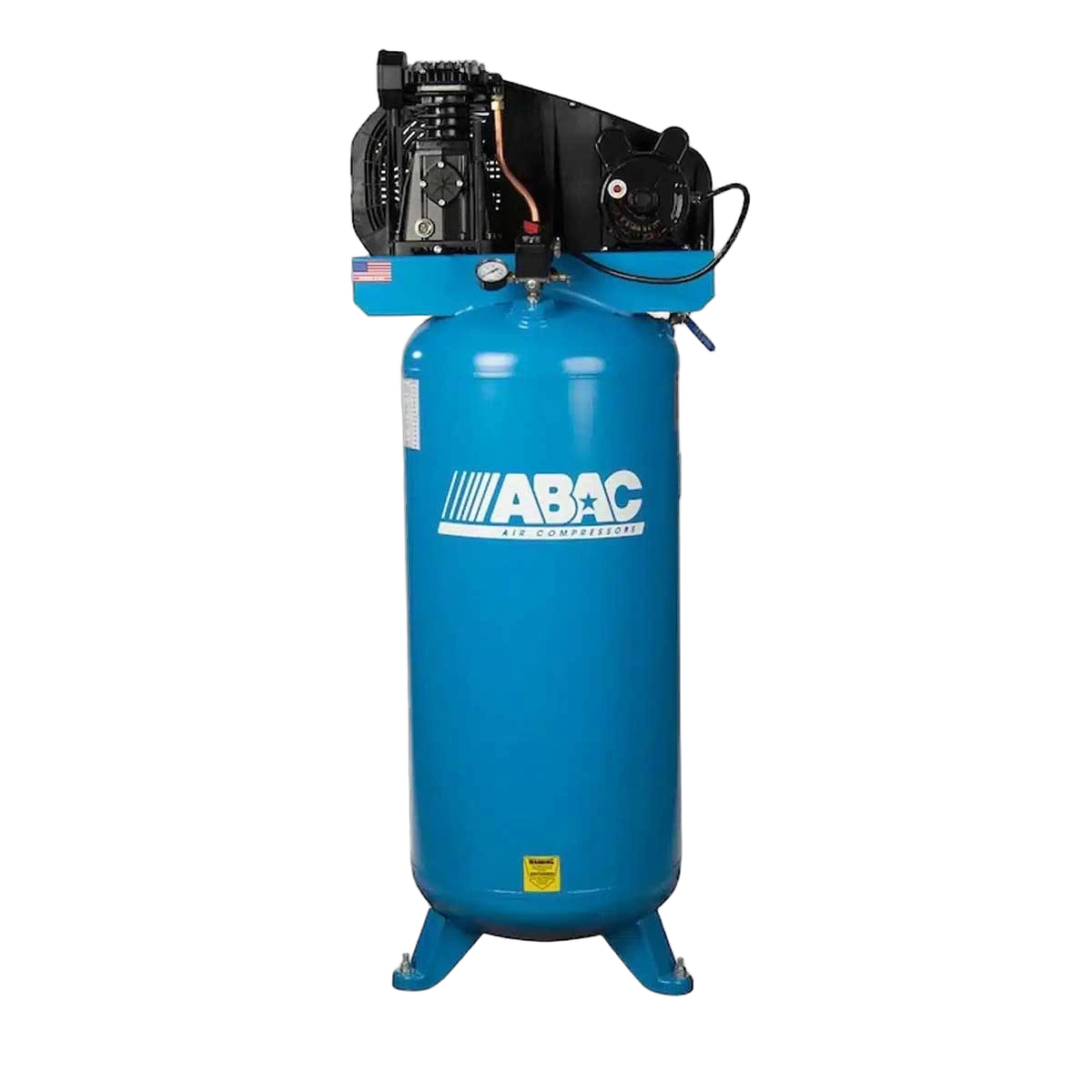

ABAC AB3-2160V1

ABAC AB3-2160V1 is a 3.5 HP single-stage splash-lubricated reciprocating air compressor, delivering 12.4 SCFM at 100 PSI, on a vertical 60-gallon tank, running 230V single-phase. Priced at $1,304 across 1 tracked retailer.

3.50

CFM

12.4 @ 100 PSI

Duty

— continuous

Tank size

60 gal

Air output per horsepowerAirflow per motor HP

3.54CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage piston

58%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$105$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM12.4 @ 100 PSI

CFM / HP3.54

Cut-in / out—

Tank fill—

Est. draw3.1 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $1,103

Maintenance · yearlyEst. $88

Savings with Compressor Controller · yearlyEst. $254–$463

ELECTRICAL & FORM

Serviceelectric

Voltage230/1/60

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight261 lb

FormVertical · 60 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 3 · 3.5 HP

Sizing & pricevs. 3 in class

SCFM @ 3.5 HP12.4cfm
12median 12.413
0% vs. median
Average price$1,304
$1,304median $1,324$1k
-1.5% vs. median

Efficiency vs. peersvs. 3 in class

CFM per HP3.54cfm/hp
3.51median 3.543.71
0% vs. median
Price per CFM$105$/scfm
$105median $107$111
-2.3% vs. median

Where this is sold

Retailer
Verified 2 months ago
$1,304
Lowest

Find an installer / dealer near youAuthorized ABAC dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
