ABAC · Ironman/AB · TWO-STAGE PISTON

2021119417

5 HP · electric · oil-lubricated · 2-stage
AVERAGE PRICE
$3,353
1 retailer

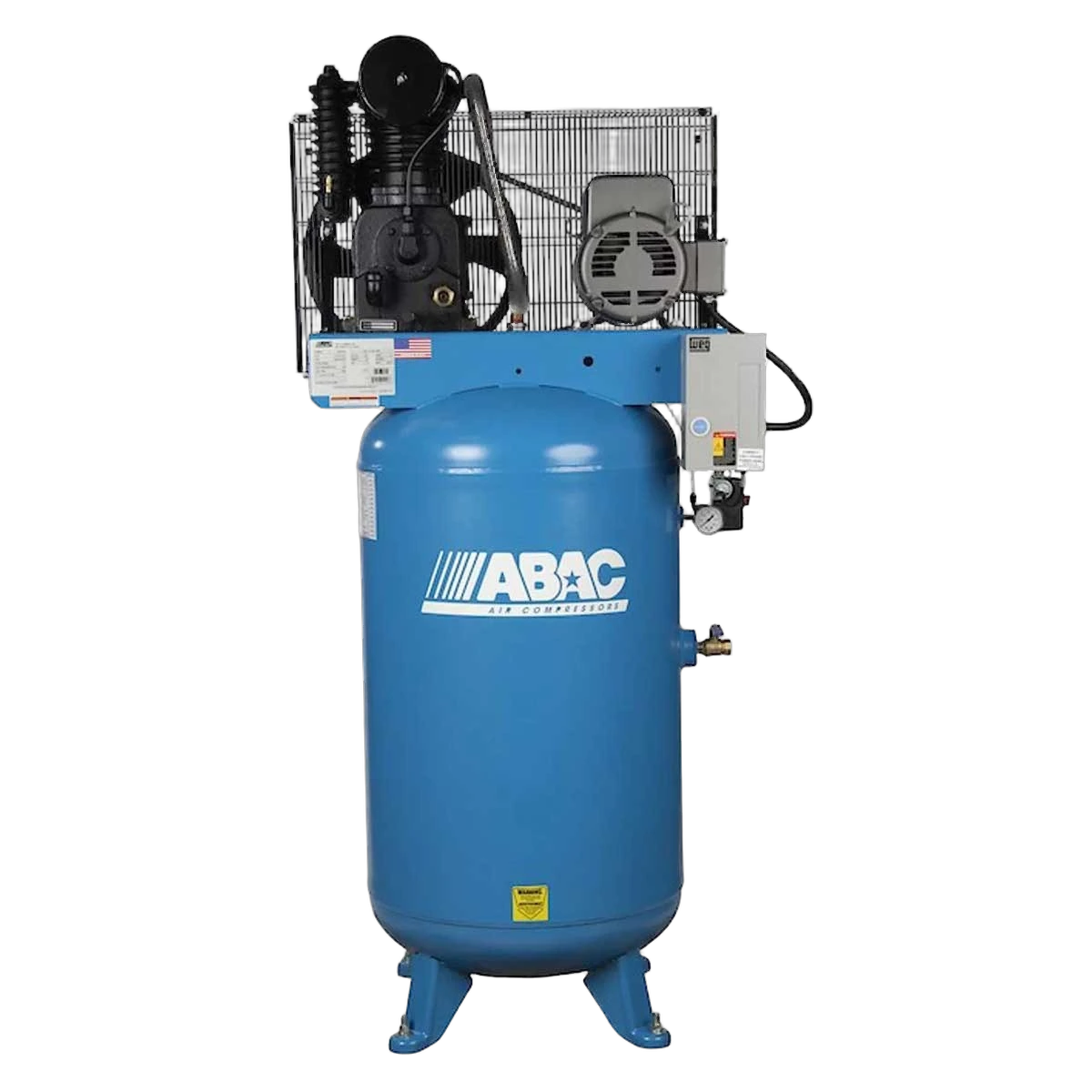

ABAC 2021119417

ABAC 2021119417 is a 5 HP two-stage oil-lubricated reciprocating air compressor delivering 16.6 SCFM on an 80-gallon tank, wired for 230V single-phase (60Hz), weighing 398 lbs. Cast-iron two-stage construction provides reliable output for intermittent shop and contractor applications: pneumatic tooling, inflation, light sandblasting, and general shop air. The 80-gallon tank provides adequate reserve for burst-demand tools without excessive floor footprint. Oil-lubricated design provides long service life in shop environments. Priced at approximately $3,353 through ABAC authorized distributors. Operating PSI rating, noise level (dB), and OEM datasheet URL are not confirmed in available data; request the ABAC 2021119417 spec sheet from an authorized ABAC dealer for full operating parameters.

HP
5
CFM
16.6 @ 175 PSI
Duty
continuous
Tank size
80 gal
Air output per horsepowerAirflow per motor HP
3.32CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 2-stage piston
67%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$202$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages2-stage recip
Cylinder
Pump RPM
Lubricationoil-lubricated
Oil
Sump
Pump life
Pump material
Head material
Intercooler
PERFORMANCE
Catalog CFM16.6 @ 175 PSI
CFM / HP3.32
Cut-in / out
Tank fill
Est. draw4.4 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $1,576
Maintenance · yearlyEst. $125
Savings with Compressor Controller · yearlyEst. $362–$662
ELECTRICAL & FORM
Serviceelectric
Voltage230/1/60
Amps
Motor
Motor RPM
Control
Starter
Weight398 lb
Form— · 80 gal
BUILD & ENVIRONMENT
Air outlet
Drain
Drain outlet
ASME tank
Made in USA
Noise
Op. temp
Dimensions
Ship weight
Warranty

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1655 units
Peer class
157 · 5 HP
Sizing & pricevs. 157 in class
  • SCFM @ 5 HP16.6cfm
    10median 17.238
    -3.5% vs. median
  • Average price$3,353
    $962median $4,178$17k
    -19.8% vs. median
Efficiency vs. peersvs. 157 in class
  • CFM per HP3.32cfm/hp
    2.08median 3.447.64
    -3.5% vs. median
  • Price per CFM$202$/scfm
    $77median $228$864
    -11.5% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$3,185$3,297$3,409$3,521avg $3,353today-10d-20d-30d
